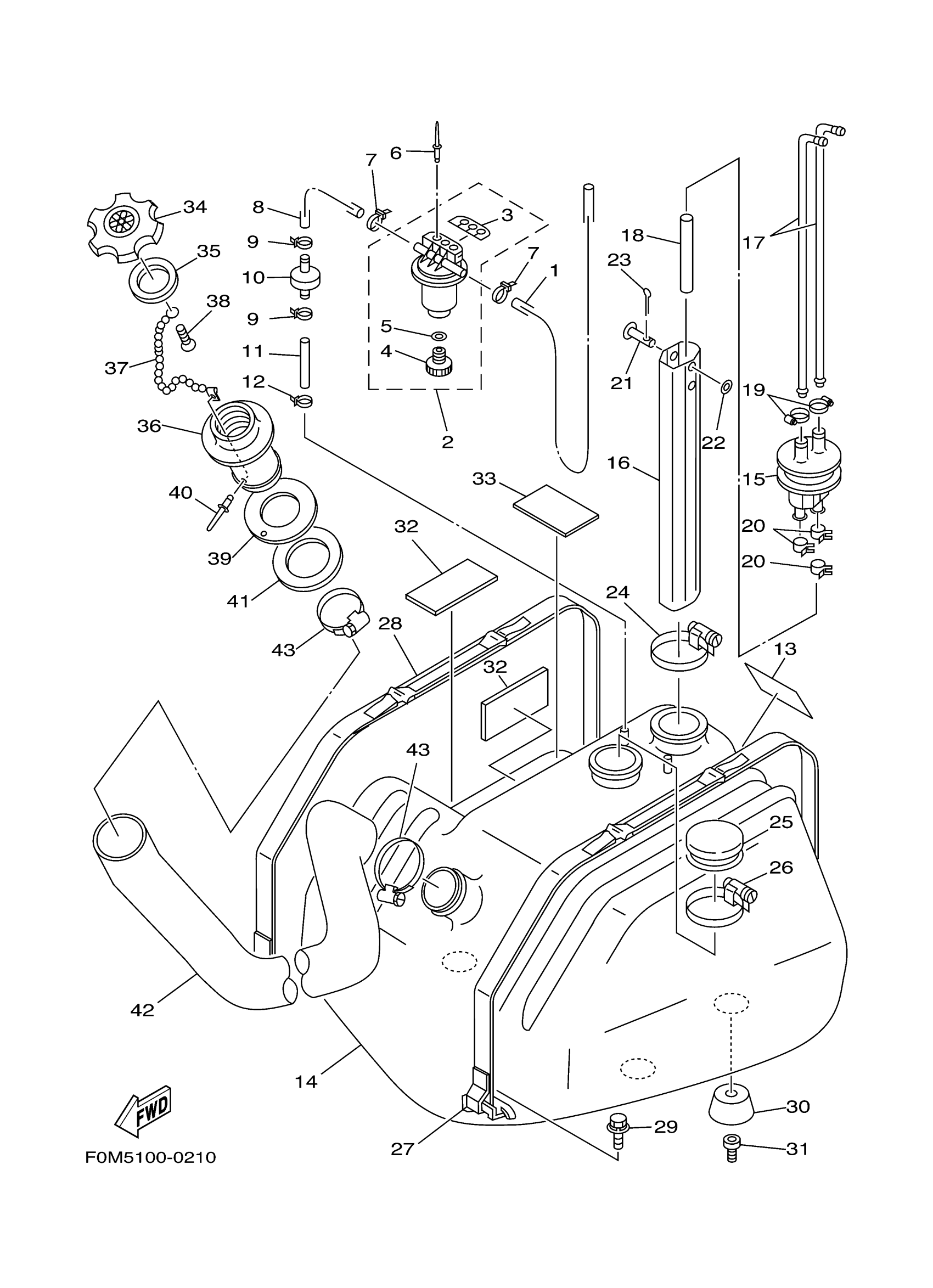

Yamaha XL700C (XL700) F0MF 2004 FUEL TANK Diagram

#

Description
Price

1

HOSE AIR VENT

GP7-U785J-00-00

Unavailable

2

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

3

. PLATE, FILTER

EW2-62142-00-00

$44.99

4

. PLUG, DRAIN

70R-24543-00-00

$9.08

5

. O-RING

70R-24489-00-00

$5.00

6

RIVET, BLIND

90267-489U2-00

$1.43

7

CLAMP

90465-10098-00

$1.68

8

HOSE, AIR VENT 3

GU2-U785H-00-00

Unavailable

9

CLAMP

90465-10098-00

$1.68

10

CHECK VALVE

EU0-67767-31-00

$20.93

11

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

12

CLAMP

90465-10098-00

$1.68

13

LABEL, FUEL TANK

GH3-6418D-00-00

$20.99

14

TANK, FUEL

GH3-U7711-00-00

Unavailable

15

PIPE, JOINT

FJ0-67713-01-00

Unavailable

16

SLEEVE 1

FJ0-67716-01-00

$22.71

17

PIPE, SUCTION 3

FJ0-67714-02-00

Unavailable

18

HOSE (L198)

90445-11293-00

Unavailable

19

BAND, HOSE 11

90601-11062-00

Unavailable

20

CLIP (7K7)

90467-11044-00

Unavailable

21

PIN (FJ0)

91790-05040-00

Unavailable

22

WASHER, PLAIN (646)

92990-05600-00

Unavailable

23

PIN. COTTER

91490-16010-00

$2.36

24

BAND, HOSE 62

90601-162U5-00

$6.17

25

COVER

FN8-6771K-00-00

$11.85

26

BAND, HOSE 62

90601-162U5-00

$6.17

27

BELT, TANK 1

GJ1-67743-01-00

$80.29

28

BELT, TANK 1

GH3-67743-01-00

$112.11

29

BOLT, WITH WASHER

90119-08800-00

$4.09

30

DAMPER, FUEL TANK

GH1-U782B-00-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-089U1-00

Unavailable

32

MAT 1

GJ1-U759B-00-00

Unavailable

33

MAT 2

GJ1-U759C-00-00

$30.29

34

CAP, FUEL FILLER

GP7-U7831-11-00

$34.30

35

PACKING

GP7-U7832-01-00

$5.35

36

SOCKET

GP7-U7833-11-00

$10.75

37

CHAIN BALL

GP7-U7835-00-00

$4.51

38

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

39

PACKING FUEL FILLER

GP7-U7834-10-00

$5.53

40

RIVET, BLIND

90267-329UR-00

$1.15

41

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

42

HOSE

GP3-U7844-00-00

Unavailable

43

BAND, HOSE 55

90601-155U4-00

$5.87
