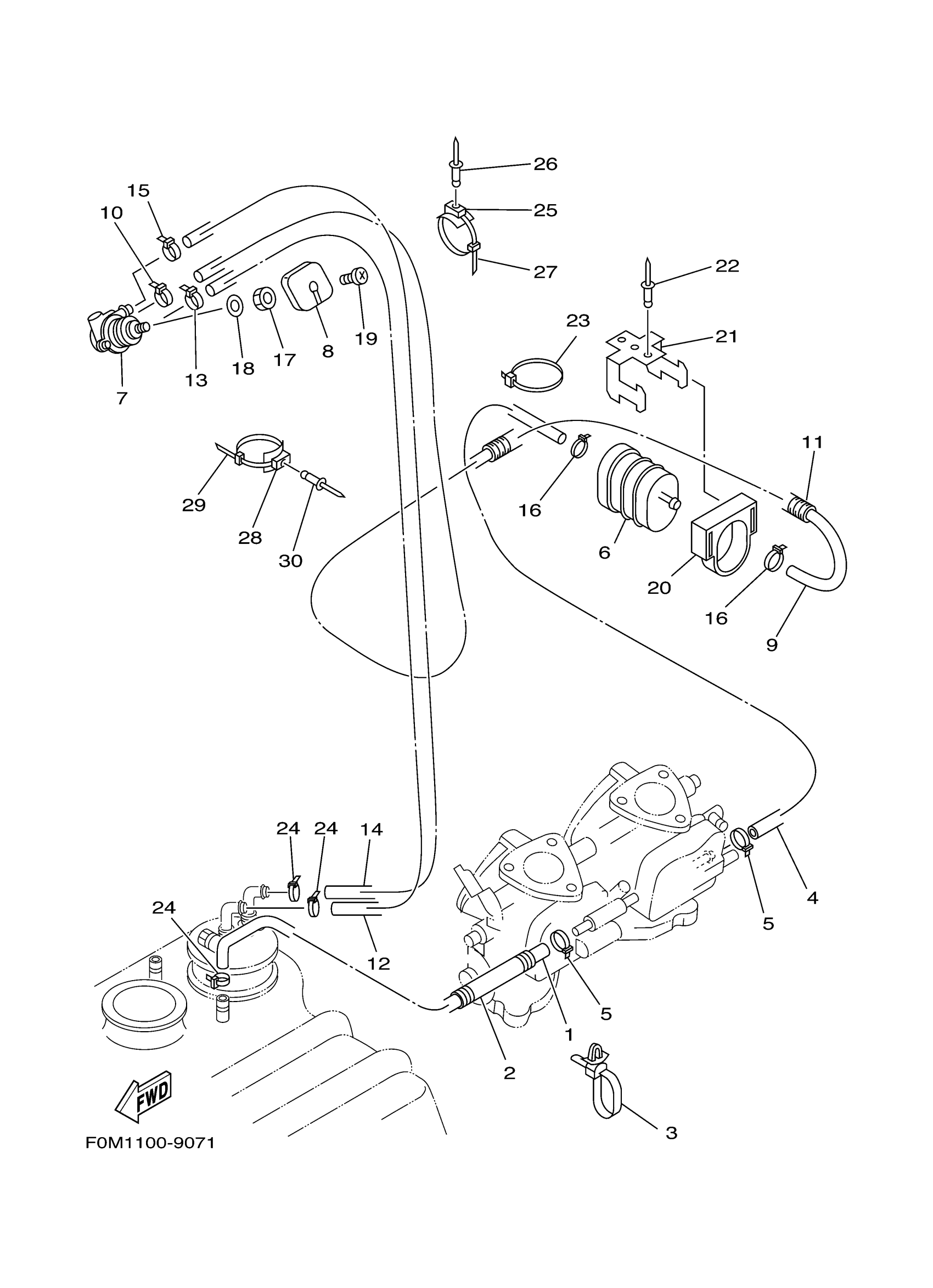

Yamaha XL700C (XL700) F0MF 2004 FUEL Diagram
#
1
HOSE (L1700)
90445-10M87-00
Unavailable
2
HOSE(6TC)
90446-14M51-00
$7.49
3
CLAMP(62T)
90465-12M56-00
$8.49
4
HOSE
90445-10ME2-00
Unavailable
5
CLAMP
90465-10098-00
Unavailable
6
FILTER ASSY
6K8-24560-21-00
Unavailable
7
FUEL COCK ASSY 1
65U-24500-02-00
Unavailable
8
LEVER, COCK
6R7-24524-00-00
Unavailable
9
HOSE (L1700)
90445-10M87-00
Unavailable
10
CLAMP
90465-10098-00
Unavailable
11
HOSE(64T)
90446-14M62-00
$7.49
12
HOSE (L1040)
90445-10MA9-00
$68.99
13
CLAMP
90465-10098-00
Unavailable
14
HOSE (L1040)
90445-10MA9-00
$68.99
15
CLAMP
90465-10098-00
Unavailable
16
CLAMP
90465-10098-00
Unavailable
17
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
18
WASHER, PLATE
90202-229U1-00
Unavailable
19
SCREW, BIND
98980-04008-00
Unavailable
20
HOLDER
EU0-67817-00-00
Unavailable
21
BRACKET, FUEL FILTER
FN8-67816-00-00
Unavailable
22
RIVET (EU0)
90267-48938-00
Unavailable
23
CLAMP
90464-32801-00
Unavailable
24
CLAMP
90465-10098-00
Unavailable
25
CLAMP COMP (EU0)
90600-91736-00
Unavailable
26
RIVET, BLIND
90267-48802-00
Unavailable
27
CLAMP
90464-32801-00
Unavailable
28
CLAMP COMP (EU0)
90600-91736-00
Unavailable
29
CLAMP
90464-32801-00
Unavailable
30
RIVET, BLIND
90267-48802-00
Unavailable
