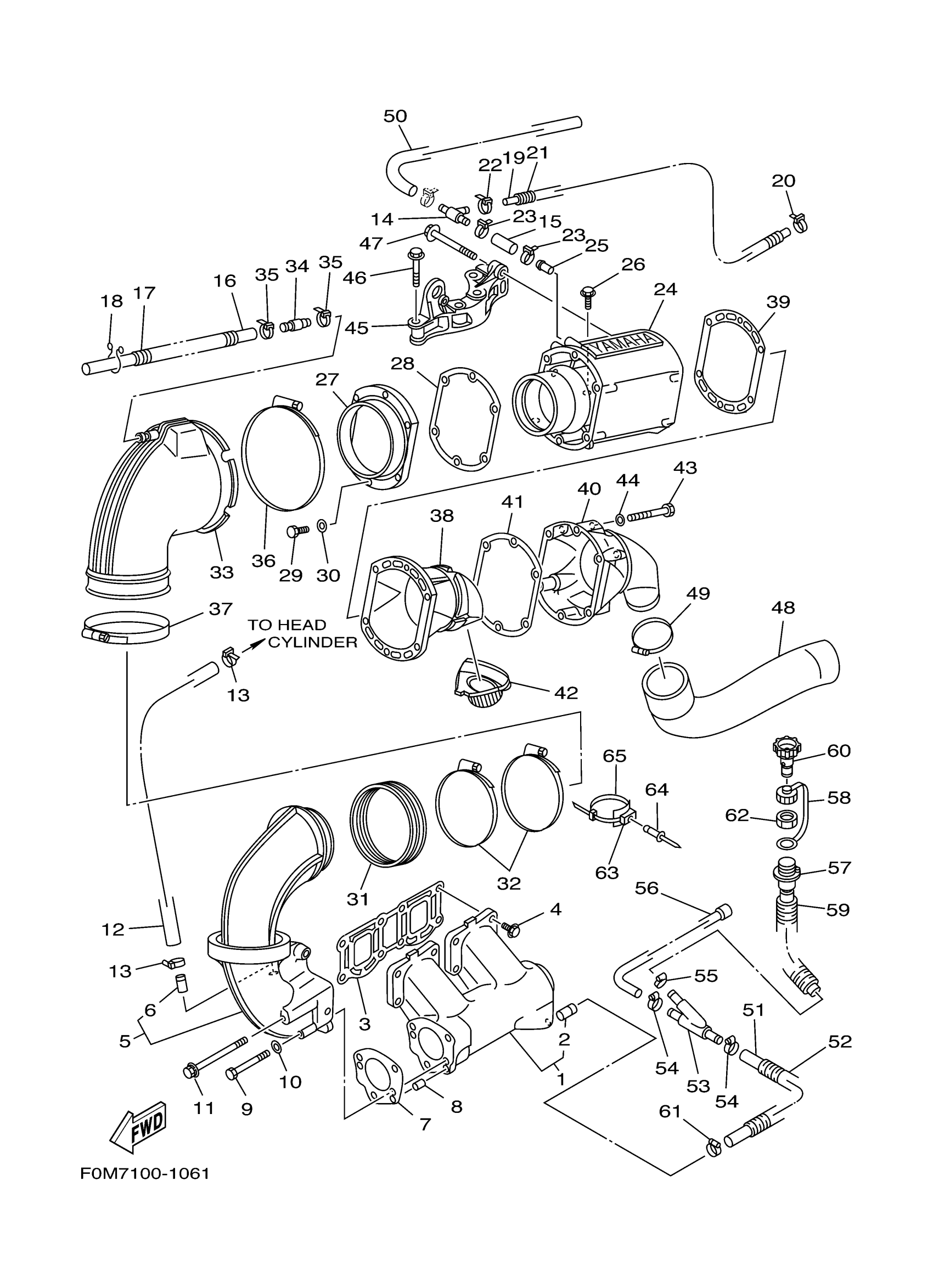

Yamaha XL700C (XL700) F0MF 2004 EXHAUST 1 Diagram

#

Description
Price

1

MUFFLER 1

62T-14711-10-94

$489.38

2

. NIPPLE

6K8-51129-00-00

$9.62

3

GASKET, EXHAUST PIPE

62T-14613-01-00

$27.26

4

BOLT, FLANGE

90105-10M60-00

$5.92

5

RING, JOINT

62T-14712-00-94

$506.05

6

. NIPPLE

6K8-51129-00-00

$9.62

7

GASKET, MUFFLER DAMPER 2

62T-14749-02-00

$18.52

8

PIN, DOWEL(62T)

93605-12M21-00

Unavailable

9

BOLT (6K8)

97013-08075-00

$5.58

10

.. WASHER, PLATE

92990-08600-00

$2.17

11

BOLT, WITH WASHER

90119-08M11-00

$2.73

12

HOSE (L380)

90445-14M25-00

$18.17

13

CLAMP

90465-10098-00

$1.68

14

PIPE, JOINT 4

63N-24378-00-00

$6.36

15

HOSE (L50)

90445-21M02-00

Unavailable

16

HOSE (L1300)

90445-14M22-00

Unavailable

17

HOSE(61L)

90446-20M31-00

Unavailable

18

CLAMP

90464-15M11-00

Unavailable

19

HOSE (L380)

90445-14M25-00

$18.17

20

CLAMP

90465-10098-00

$1.68

21

HOSE(61L)

90446-20M31-00

Unavailable

22

CLAMP

90465-10098-00

$1.68

23

CLAMP

90465-11M59-00

$2.07

24

MUFFLER 2

62T-14721-00-8S

$374.23

25

PIPE, JOINT

62T-14485-10-00

$33.99

26

BOLT, FLANGE

90105-10M60-00

$5.92

27

OUTER COVER, EXHAUST

62T-41113-00-8S

$107.56

28

GASKET, EXHAUST OUTER COVER

62T-41114-01-00

$16.99

29

BOLT(62Y)

97013-06025-00

Unavailable

30

WASHER, PLAIN (646)

92990-06600-00

Unavailable

31

JOINT, EXHAUST 2

62T-14625-00-00

$62.23

32

HOSE CLAMP ASSY(62T)

90450-99M06-00

Unavailable

33

JOINT, EXHAUST 1

62T-14615-01-00

$83.32

34

PIPE, JOINT 2

6R3-24377-00-00

$6.56

35

CLAMP

90465-10098-00

$1.68

36

HOSE CLAMP ASSY

90450-99M18-00

Unavailable

37

HOSE CLAMP ASSY(62T)

90450-99M02-00

Unavailable

38

INNER COVER,EXHAUST

62T-41121-00-8S

$159.08

39

. GASKET, EXHAUST INNER COVER

62T-41122-00-00

$28.52

40

OUTER COVER, EXHAUST

62T-41123-01-8S

$409.08

41

. GASKET, EXHAUST OUTER COVER

62T-41124-00-00

$8.14

42

SEAL, RUBBER 1

63N-15761-00-00

$72.71

43

BOLT(62J)

97013-06070-00

Unavailable

44

WASHER, PLAIN (646)

92990-06600-00

Unavailable

45

STAY, MUFFLER 1

62T-14771-00-00

$92.41

46

BOLT, WITH WASHER

90119-10M17-00

$9.08

47

BOLT, FLANGE

90105-10M88-00

$2.95

48

PIPE, OUTLET

63N-14752-30-00

$168.17

49

HOSE CLAMP ASSY(62T)

90450-70M03-00

Unavailable

50

HOSE (L1390)

90445-21M00-00

Unavailable

51

HOSE

90445-14M03-00

Unavailable

52

HOSE(GK5)

90446-20M65-00

Unavailable

53

JOINT, HOSE 1

64X-12581-00-00

$11.35

54

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

55

HOSE CLAMP ASSY

90450-18M09-00

$9.82

56

PIPE, WATER

65R-12564-00-00

Unavailable

57

JOINT ASSY

64T-12580-00-00

$113.62

58

CAP,1

682-84385-01-00

$9.08

59

HOSE (L420)

90446-24M89-00

$9.08

60

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

61

BAND, HOSE 18

90601-118UF-00

$2.07

62

NUT

EU0-61652-00-00

$11.48

63

CLAMP COMP (EU0)

90600-91736-00

Unavailable

64

RIVET, BLIND

90267-489U7-00

Unavailable

65

CLAMP

90464-32801-00

$1.23
