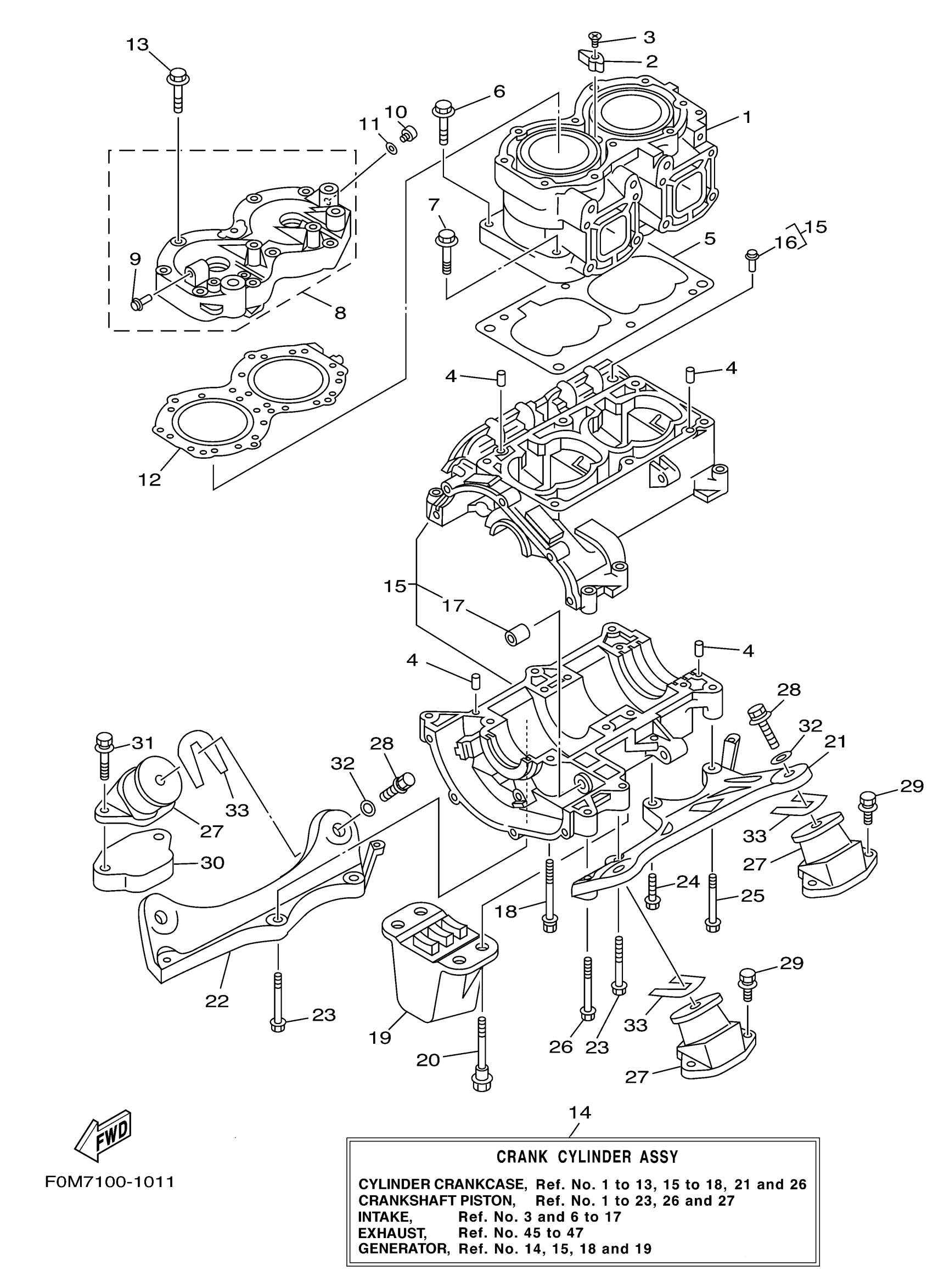

Yamaha XL700C (XL700) F0MF 2004 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CYLINDER 1

62T-11311-00-8S

$868.17

2

ANODE

6E5-11325-00-00

$4.08

3

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

4

PIN, DOWEL (614)

93606-12019-00

$3.05

5

GASKET, CYLINDER

6M6-11351-A2-00

$18.15

6

BOLT, WITH WASHER

90119-10M56-00

$10.24

7

BOLT (6F5)

90119-10M07-00

$4.21

8

HEAD, CYLINDER 1

62T-11111-00-8S

$366.65

9

. NIPPLE

6K8-51129-00-00

$9.62

10

PLUG, STRAIGHT SCREW

90340-08002-00

$10.69

11

GASKET

90430-08003-00

$1.08

12

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$59.08

13

BOLT, WITH WASHER

90119-08M96-00

$2.95

14

CRANK CYLINDER ASSY

62T-W0090-03-8S

$3,416.65

15

CRANKCASE ASSY

62T-15100-00-00

$804.53

16

NIPPLE

62T-14251-10-00

$4.51

17

. BUSH, SOLID

90380-12M29-00

Unavailable

18

BOLT, WITH WASHER

90119-08M55-00

$2.95

19

STOPPER, UPPER MOUNT

63N-44532-01-00

$160.59

20

BOLT

90109-08M56-00

$4.09

21

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$131.80

22

BRACKET, REAR UPPER 1

6R7-21425-01-00

$139.38

23

BOLT, WITH WASHER

90119-10M23-00

$10.24

24

BOLT, WITH WASHER

90119-10M00-00

$8.56

25

BOLT, WITH WASHER

90119-10M03-00

$9.08

26

BOLT, WITH WASHER

90119-10M01-00

$9.08

27

MOUNT RUBBER

6M6-44517-A2-94

$90.89

28

BOLT, WITH WASHER

90119-089UT-00

$3.16

29

BOLT, WITH WASHER

90119-089U1-00

$3.23

30

SPACER, ENGINE MOUNT

GJ1-6721B-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08856-00

$5.17

32

WASHER, PLATE

90201-099U3-00

$2.16

33

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

33

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

33

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

33

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

33

SHIM (T=2.0)

EU0-67354-E0-00

$4.09
