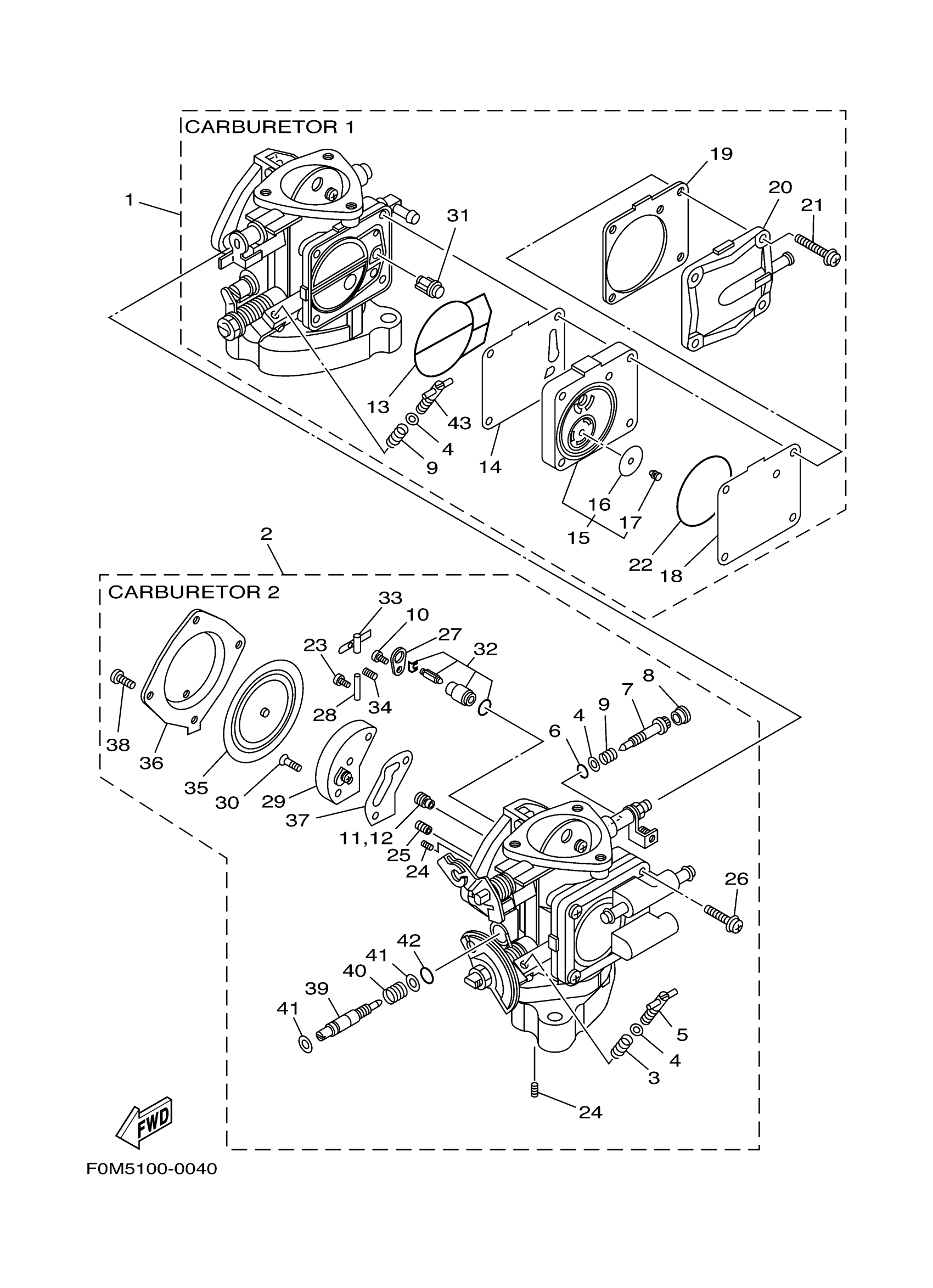

Yamaha XL700C (XL700) F0MF 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

62T-14301-03-00

Unavailable

2

CARBURETOR ASSY 2

62T-14302-03-00

Unavailable

3

. SPRING, THROTTLE STOP

47X-14133-00-00

Unavailable

4

WASHER,NEEDLE

812-14235-00-00

Unavailable

5

SCREW,ADJUST

6M6-14521-01-00

Unavailable

6

. O-RING

6K8-14562-00-00

Unavailable

7

. PLATE, NEEDLE FITTING

6K8-14946-10-00

Unavailable

8

. CAP, CARBURETOR

6K8-14471-10-00

Unavailable

9

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

10

. SCREW

6M6-14503-00-00

Unavailable

11

JET, MAIN (#130)

3G2-14231-26-A0

$10.99

12

JET,MAIN(#120)

3G2-14231-24-00

$13.49

13

. O-RING

6K8-14564-00-00

Unavailable

14

. DIAPHRAGM

6K8-24411-20-00

Unavailable

15

BODY 2

6M6-24413-02-00

Unavailable

16

.. VALVE, CHECK

65U-24421-00-00

Unavailable

17

.. BUSH, FUEL PUMP

65U-24492-00-00

Unavailable

18

. VALVE, CHECK

6K8-24421-10-00

Unavailable

19

. GASKET, FUEL PUMP 1

6K8-24431-20-00

Unavailable

20

. COVER 1

62T-14293-00-00

Unavailable

20

. COVER

6K8-24452-10-00

Unavailable

21

SCREW, WITH WASHER(61B)

97985-05330-00

Unavailable

22

. O-RING

6K8-14563-00-00

Unavailable

23

. SCREW

6K8-14503-02-00

Unavailable

24

. SCREW

6K8-14521-10-00

Unavailable

25

JET,MAIN #67.5

830-1423A-64-00

Unavailable

26

. SCREW, PAN HEAD

98580-05018-00

Unavailable

27

. PLATE

6K8-14527-11-00

Unavailable

28

. PIN, FLOAT

439-14186-00-00

Unavailable

29

. BODY 1

6R7-24412-01-00

Unavailable

30

SCREW, STOP

6K8-14523-12-00

Unavailable

31

. STRAINER

6R7-14569-00-00

Unavailable

32

NEEDLE

61X-14916-16-00

Unavailable

33

. ARM, FLOAT

6K8-14547-01-00

Unavailable

34

. SPRING

6R7-14253-00-00

Unavailable

35

. DIAPHRAGM, PUMP

6R7-14541-00-00

Unavailable

36

. BODY, PUMP 1

6R7-14542-00-00

Unavailable

37

. GASKET

6K8-14536-11-00

Unavailable

38

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

39

. SCREW, PILOT

65U-14923-10-00

Unavailable

40

. SPRING

6K8-14589-00-00

Unavailable

41

WASHER, NEEDLE

822-14235-00-00

Unavailable

42

O-RING

583-14561-00-00

Unavailable

43

. SCREW, ADJUST

6K8-14521-00-00

Unavailable
