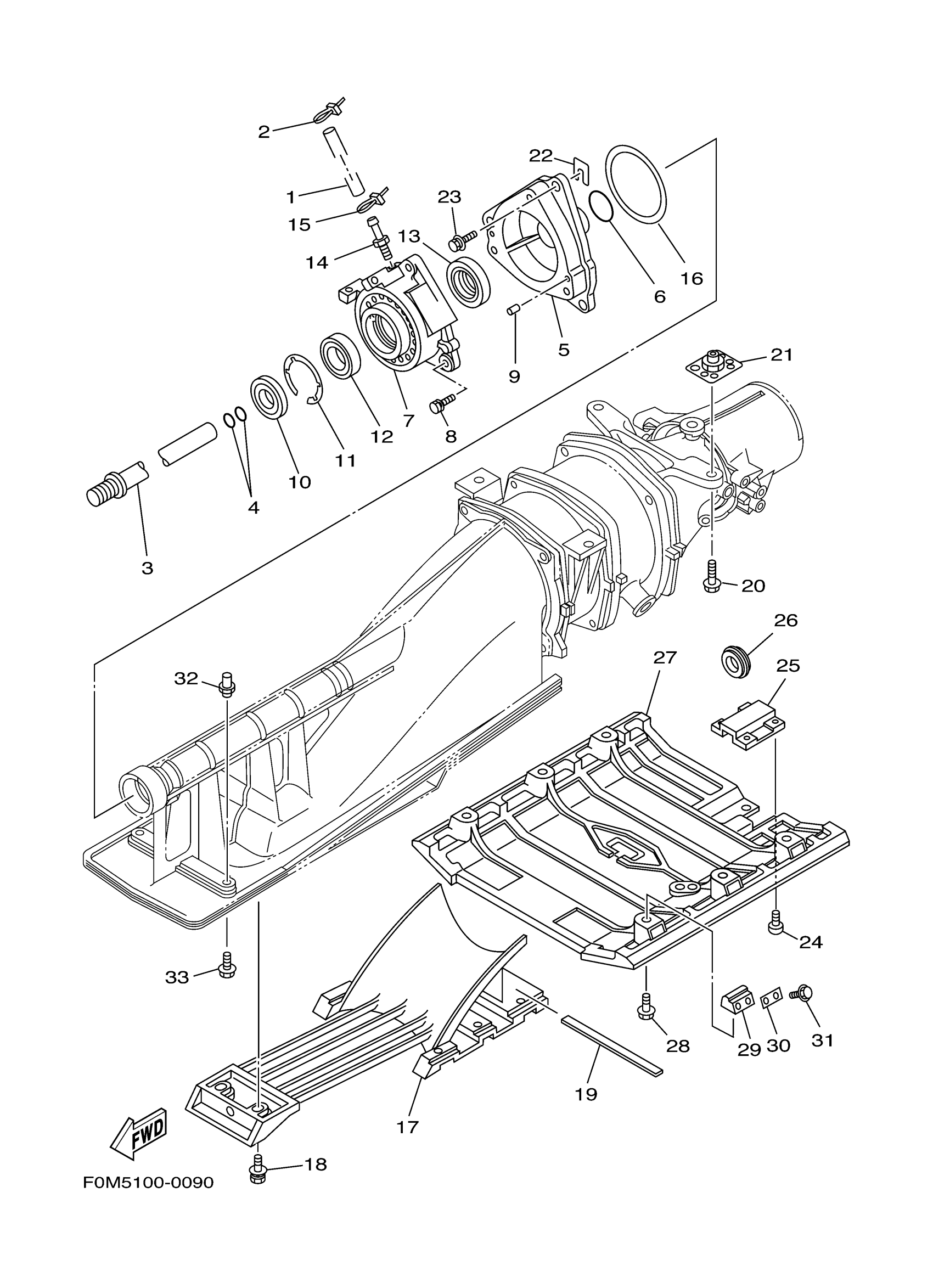

Yamaha XL700B (XL700) F0MC 2003 JET UNIT 2 Diagram

#

Description
Price

1

HOSE (L445)

90445-09M21-00

$20.98

2

CLAMP

90465-10098-00

$1.68

3

SHAFT, COUPLOR

63N-51323-10-00

$533.32

4

O-RING(6R7)

93210-17MA4-00

$4.65

5

HOUSING, BEARING

65A-G5331-00-00

Unavailable

6

O-RING

93210-35M72-00

$11.39

7

HOUSING, BEARING

65U-45332-02-94

$256.05

8

BOLT, WITH WASHER

90119-08841-00

$1.01

9

PIN, DOWEL (614)

93606-12019-00

$3.05

10

OIL SEAL(62T)

93101-25M55-00

$24.36

11

CIRCLIP

93430-47M04-00

$5.18

12

BEARING(62G)

93306-205U6-00

$55.29

13

OIL SEAL

93101-24001-00

$30.69

14

NIPPLE, HOSE

61L-45378-00-00

$11.35

15

CLAMP

90465-10098-00

$1.68

16

SEAL

6K8-45127-00-00

$15.49

17

SCREEN, INTAKE

65R-R1333-00-00

Unavailable

18

BOLT, WITH WASHER

90119-069UC-00

$3.37

19

. FELT, PACKING

63M-51367-00-00

$4.55

20

BOLT, WITH WASHER

90119-109U8-00

Unavailable

21

NUT

90179-10800-00

Unavailable

22

SHIM (0.5)

GD0-U7249-00-05

$1.94

22

SHIM (0.5)

GD0-U7249-00-05

$1.94

23

BOLT, WITH WASHER

90119-08907-00

$5.45

24

SCREW, PAN HEAD(3YL)

98580-05014-00

$6.99

25

COVER,PLATE

GT3-6273C-00-00

$31.80

26

CAP

GJ8-60469-01-00

$16.99

27

PLATE 2

GJ3-U273B-00-00

Unavailable

28

BOLT, WITH WASHER

90119-08829-00

$3.88

29

PACKING

GJ1-62733-00-00

$44.99

30

PACKING 1

GJ1-62663-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08907-00

$5.45

32

NUT,SPEC'L SHAPE

90179-06814-00

Unavailable

33

BOLT, WITH WASHER

90119-06896-00

$5.03
