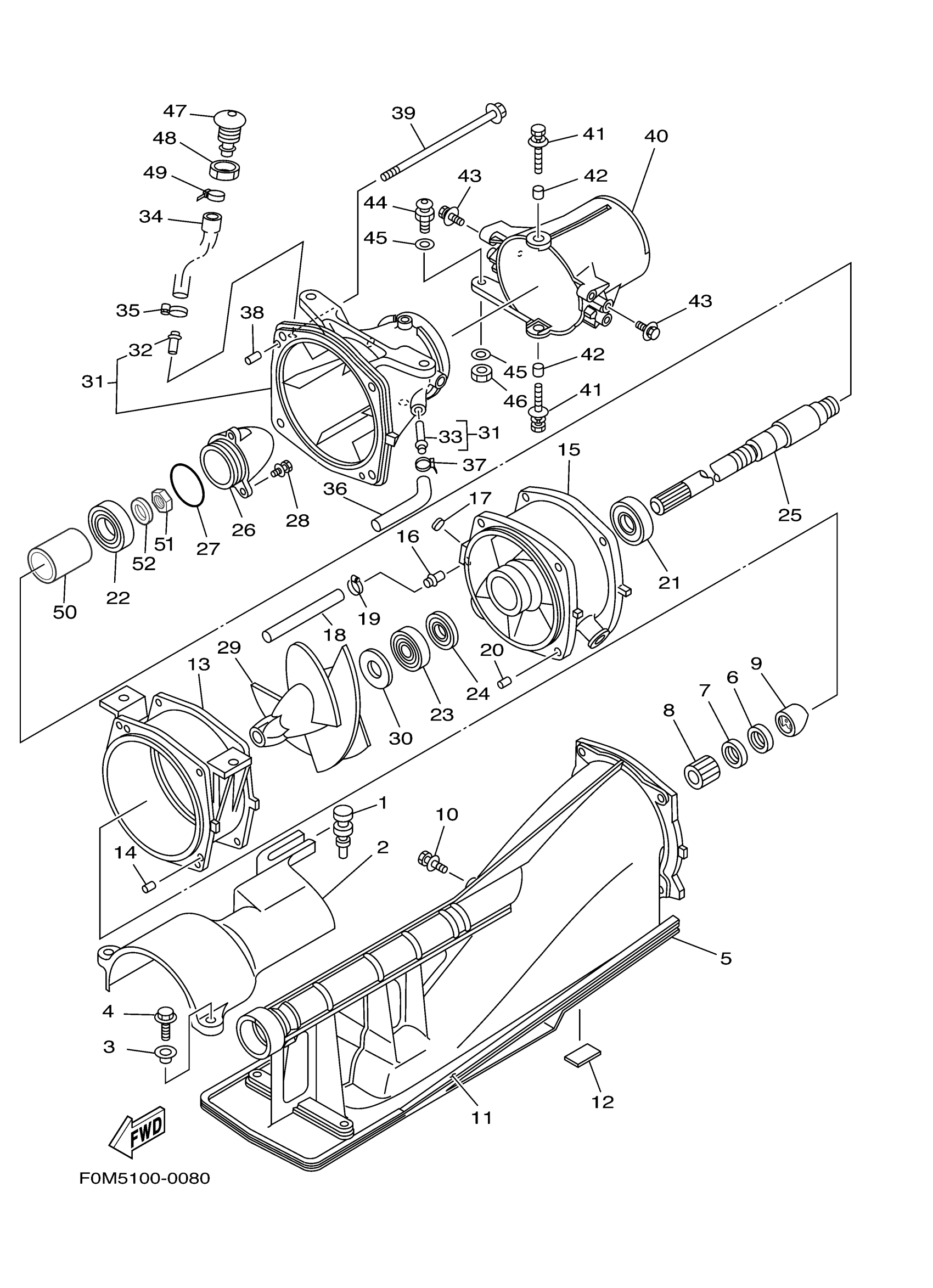

Yamaha XL700B (XL700) F0MC 2003 JET UNIT 1 Diagram

#

Description
Price

1

GROMMET(6R7)

90480-06M46-00

$9.31

2

COVER

65R-R1381-00-00

Unavailable

3

COLLAR

90387-06M60-00

$6.37

4

BOLT, WITH WASHER

90119-06892-00

$3.79

5

DUCT, INTAKE

65U-R1311-00-00

Unavailable

6

OIL SEAL

93102-17M49-00

$9.79

7

OIL SEAL

93102-17M50-00

Unavailable

8

BUSHING, DRIVE SHAFT

65V-45318-00-00

$84.83

9

SPACER

65U-R1348-01-00

Unavailable

10

BOLT, WITH WASHER

90119-06892-00

$3.79

11

. FELT, PACKING

6R8-51367-01-00

$10.36

12

. FELT, PACKING

63M-51368-00-00

$3.64

13

HOUSING, IMPELLER

63M-51312-02-94

Unavailable

14

PIN, DOWEL (614)

93606-12019-00

$3.05

15

DUCT, IMPELLER

63M-51315-02-00

Unavailable

16

NIPPLE

65A-R1129-10-00

Unavailable

17

PLUG

90331-12M05-00

Unavailable

18

HOSE (L108)

90445-18M03-00

Unavailable

19

BAND, HOSE 18

90601-118UF-00

$2.07

20

PIN, DOWEL (614)

93606-12019-00

$3.05

21

BEARING

93305-205U0-00

Unavailable

22

BEARING

93306-304XB-00

$17.22

23

OIL SEAL(6R7)

93102-25M34-00

Unavailable

24

OIL SEAL(6R7)

93101-25M50-00

Unavailable

25

SHAFT, DRIVE

65R-45511-10-00

$372.71

26

CAP KIT

65A-R1326-10-KT

Unavailable

27

. O-RING

93210-46M16-00

$7.15

28

BOLT,WITH WASHER

90119-06890-00

$1.07

29

IMPELLER

65R-R1321-12-00

$328.77

30

SPACER

62T-51348-00-00

$52.82

31

NOZZLE

65R-R1318-00-00

Unavailable

32

. NIPPLE

65A-R1129-00-00

Unavailable

33

NIPPLE,HOSE

65A-R1334-01-00

Unavailable

34

PIPE 1

62E-51673-00-00

$24.98

35

BAND, HOSE 18

90601-118UF-00

$2.07

36

HOSE (L380)

90445-14M25-00

Unavailable

37

CLAMP

90465-10098-00

$1.68

38

PIN, DOWEL (614)

93606-12019-00

$3.05

39

BOLT,WASHER BASED

90105-088D7-00

Unavailable

40

NOZZLE,DEFLECTOR

65R-R1313-01-00

Unavailable

41

BOLT, WITH WASHER

90119-08852-00

$3.79

42

COLLAR

90387-08M08-00

$10.75

43

BOLT, WITH WASHER

90119-08852-00

$3.79

44

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

45

WASHER,PLATE

90201-068M4-00

Unavailable

46

NUT

9538R-06700-00

$1.01

47

SPOUT

FN8-6269B-00-00

$22.49

48

NUT

EU0-61652-00-00

$11.48

49

CLIP

90600-91755-00

$5.91

50

SPACER 1

65V-45538-00

Unavailable

51

NUT

9531P-16700

Unavailable

52

WASHER

9299R-16600

Unavailable
