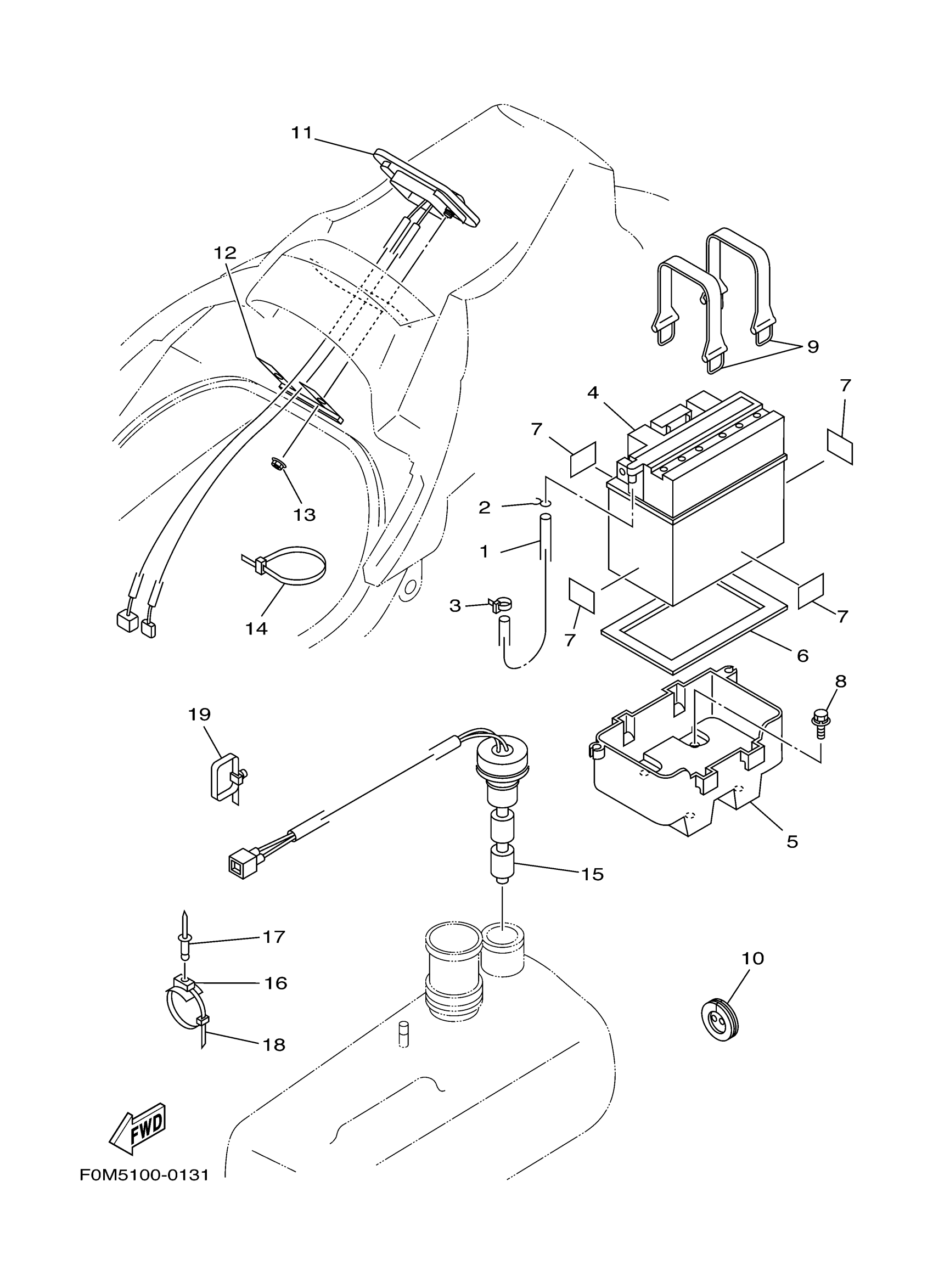

Yamaha XL700B (XL700) F0MC 2003 ELECTRICAL 2 Diagram

#

Description

Price

1

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

2

CLIP

90467-089U1-00

Unavailable

3

CLAMP

90600-91060-00

Unavailable

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PAD, BATTERY

F1S-U8221-00-00

Unavailable

7

PAD, BATTERY

EU0-U8221-31-00

$2.99

8

BOLT, WITH WASHER

90119-069US-00

Unavailable

9

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

10

GROMMET

FJ0-68222-01-00

Unavailable

11

METER ASSY

F0M-6820A-00-00

Unavailable

12

BRACKET, METER

F0M-68238-00-00

Unavailable

13

NUT, FLANGE

9572R-05300-00

Unavailable

14

CLAMP

90464-32801-00

Unavailable

15

SENDER, OIL

GJ8-U824C-01-00

Unavailable

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

RIVET, BLIND

90267-48802-00

Unavailable

18

CLAMP

90464-32801-00

Unavailable

19

CLAMP

90600-944U8-00

Unavailable
