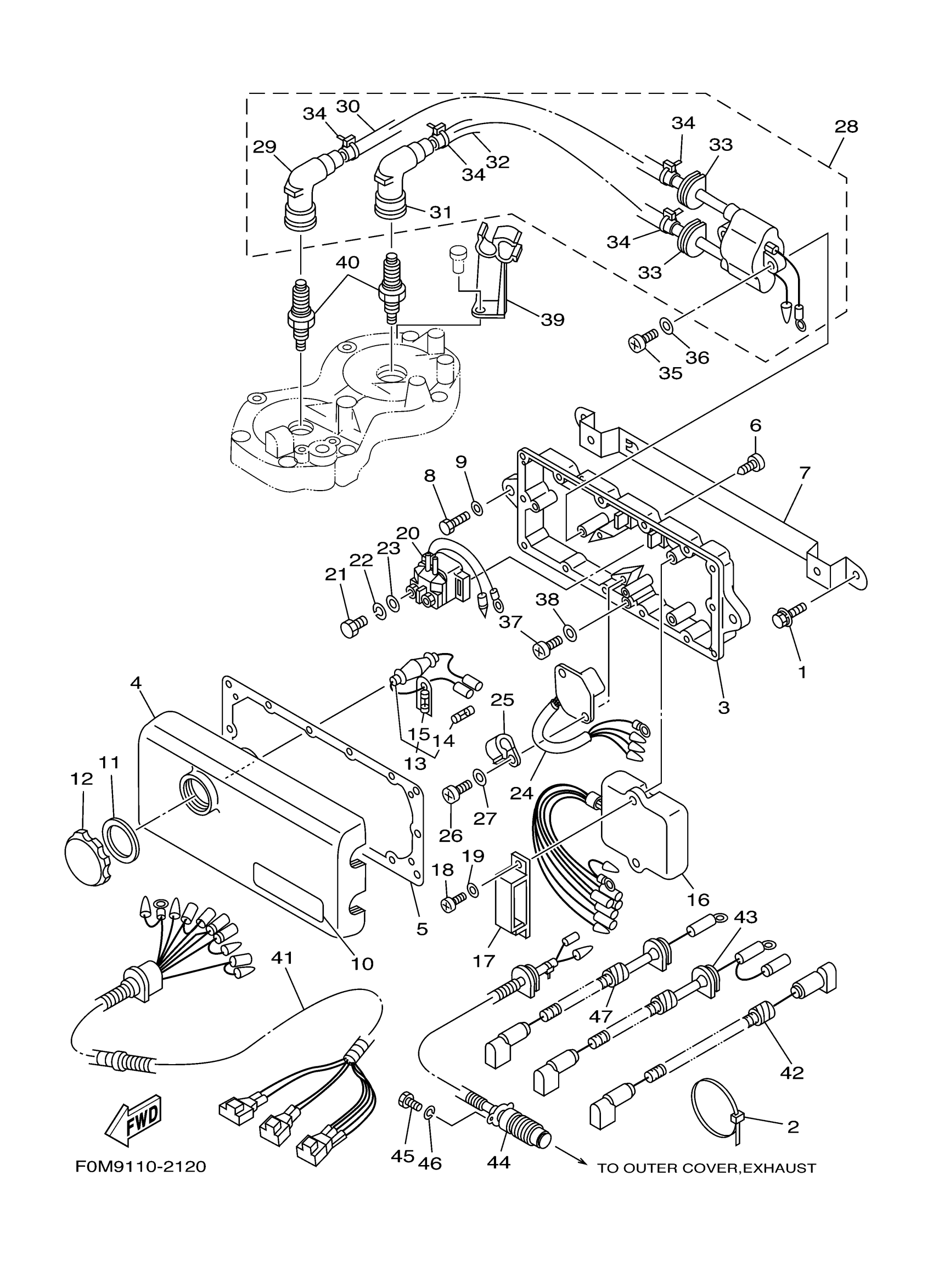

Yamaha XL700B (XL700) F0MC 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08800-00

$4.09

2

BAND (EU0)

90601-20009-00

$6.36

3

HOUSING

62L-8552A-00-8P

$162.11

4

COVER, CASE

6M6-8552E-01-00

$78.77

5

GASKET, TERMINAL

6M6-81921-00-00

$19.63

6

SCREW, TAPPING(65J)

97780-60625-00

$2.64

7

BRACKET

66D-85542-00-00

$69.68

8

BOLT (62G)

97095-08025-00

$6.12

9

.. WASHER, PLATE

92990-08600-00

$2.17

10

MARK 3

6R7-83623-40-00

$7.27

11

GASKET

6M6-81844-00-00

$10.99

12

CAP

6M6-8132W-00-00

$14.38

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

$6.36

18

SCREW, PAN HEAD

98580-06016-00

$2.88

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

STARTER RELAY ASSY

68N-81940-00-00

$85.05

21

BOLT

97085-06010-00

$1.21

22

WASHER, SPRING

92995-06100-00

$2.95

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

$112.11

25

CLAMP

90465-06M86-00

$6.64

26

SCREW, PAN HEAD

98580-06016-00

$2.88

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

IGNITION COIL ASSY

62E-85570-11-00

$209.08

29

. CAP, PLUG

62E-82371-11-00

$42.41

30

. TUBE, CORD

62E-82351-01-00

$6.36

31

. CAP, PLUG

62E-82371-11-00

$42.41

32

. TUBE, CORD 2

62E-82352-01-00

$4.39

33

GROMMET

90480-06M43-00

$6.82

34

CLAMP

90465-10098-00

$1.68

35

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

36

WASHER, PLAIN (646)

92990-06600-00

Unavailable

37

SCREW, PAN HEAD

98580-06016-00

$2.88

38

WASHER, PLAIN (646)

92990-06600-00

Unavailable

39

CLAMP, CORD

62T-82361-00-00

$10.99

40

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

41

EXTENSION, WIRE LEAD

63N-82553-00-00

$251.50

42

WIRE, LEAD

63N-82117-00-00

$118.17

43

WIRE, LEAD

63N-82117-11-00

$75.74

44

THERMO SWITCH ASSY

62T-82560-11-00

$184.83

45

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

46

WASHER, SPRING

92995-06100-00

$2.95

47

WIRE, LEAD

62L-82117-20-00

$89.38
