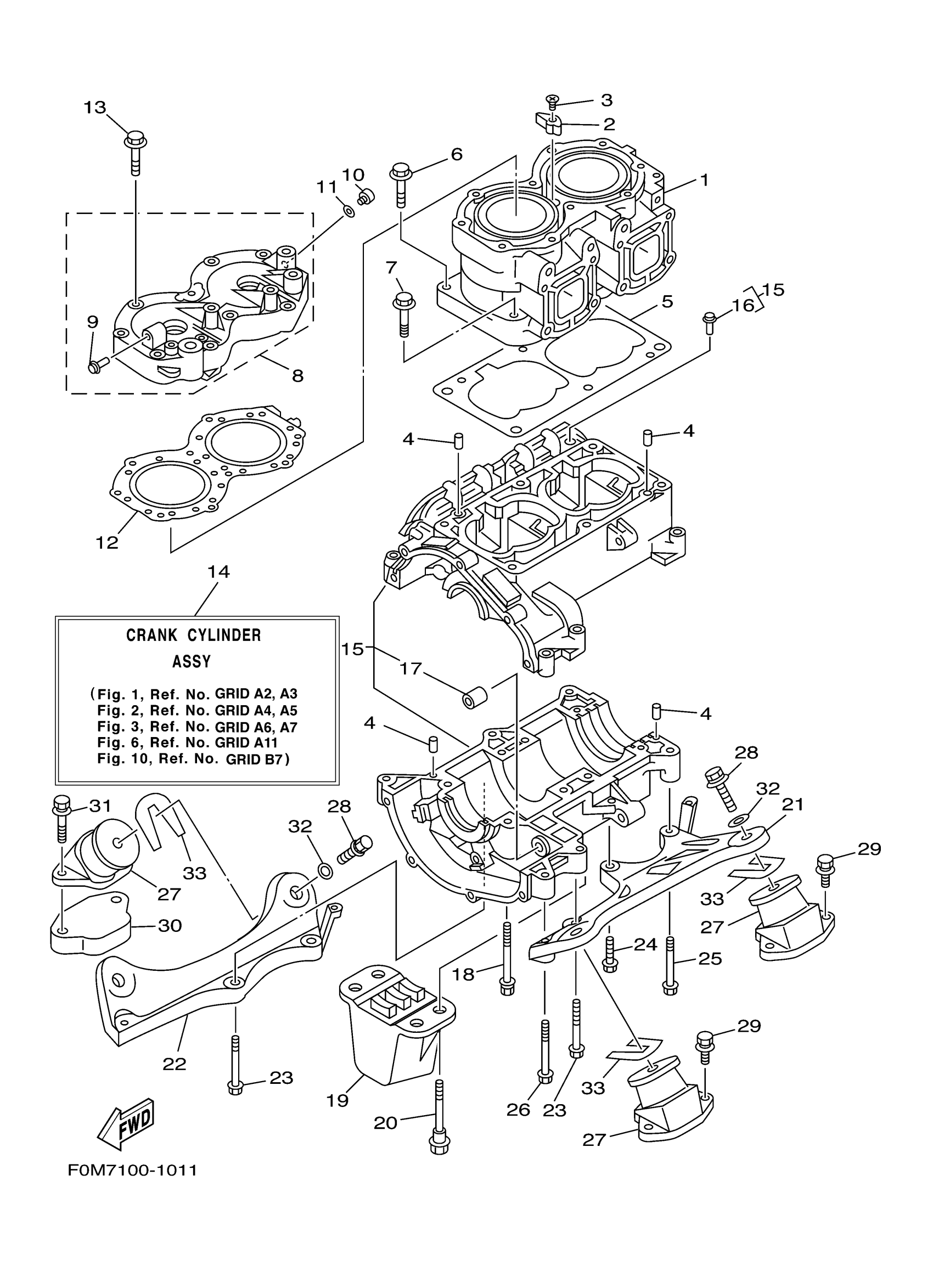

Yamaha XL700B (XL700) F0MC 2003 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CYLINDER 1

62T-11311-00-8S

$855.21

2

ANODE

6E5-11325-00-00

$4.52

3

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

4

PIN, DOWEL (614)

93606-12019-00

$3.50

5

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

6

BOLT, WITH WASHER

90119-10M56-00

$10.04

7

BOLT (6F5)

90119-10M07-00

$4.21

8

HEAD, CYLINDER 1

62T-11111-00-8S

$361.18

9

. NIPPLE

6K8-51129-00-00

$9.87

10

PLUG, STRAIGHT SCREW

90340-08002-00

$11.42

11

GASKET

90430-08003-00

$1.60

12

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$56.00

13

BOLT, WITH WASHER

90119-08M96-00

$3.03

14

CRANK CYLINDER ASSY

62T-W0090-03-8S

$3,365.66

15

CRANKCASE ASSY

62T-15100-00-00

$792.52

16

NIPPLE

62T-14251-10-00

$4.31

17

. BUSH, SOLID

90380-12M29-00

Unavailable

18

BOLT, WITH WASHER

90119-08M55-00

$3.03

19

STOPPER, UPPER MOUNT

63N-44532-01-00

$158.19

20

BOLT

90109-08M56-00

$3.88

21

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$129.84

22

BRACKET, REAR UPPER 1

6R7-21425-01-00

$137.30

23

BOLT, WITH WASHER

90119-10M23-00

$10.04

24

BOLT, WITH WASHER

90119-10M00-00

$8.56

25

BOLT, WITH WASHER

90119-10M03-00

$8.94

26

BOLT, WITH WASHER

90119-10M01-00

$8.94

27

MOUNT RUBBER

6M6-44517-A2-94

$86.17

28

BOLT, WITH WASHER

90119-089UT-00

$3.29

29

BOLT, WITH WASHER

90119-089U1-00

$3.37

30

SPACER, ENGINE MOUNT

GJ1-6721B-00-00

Unavailable

31

BOLT, WITH WASHER

90119-08856-00

$5.39

32

WASHER, PLATE

90201-099U3-00

$2.30

33

SHIM (T=0.1)

EU0-67354-A0-00

$4.31

33

SHIM (T=0.3)

EU0-67354-B0-00

$5.17

33

SHIM (T=0.5)

EU0-67354-C0-00

$4.31

33

SHIM (T=1.0)

EU0-67354-D0-00

$3.88

33

SHIM (T=2.0)

EU0-67354-E0-00

$3.88
