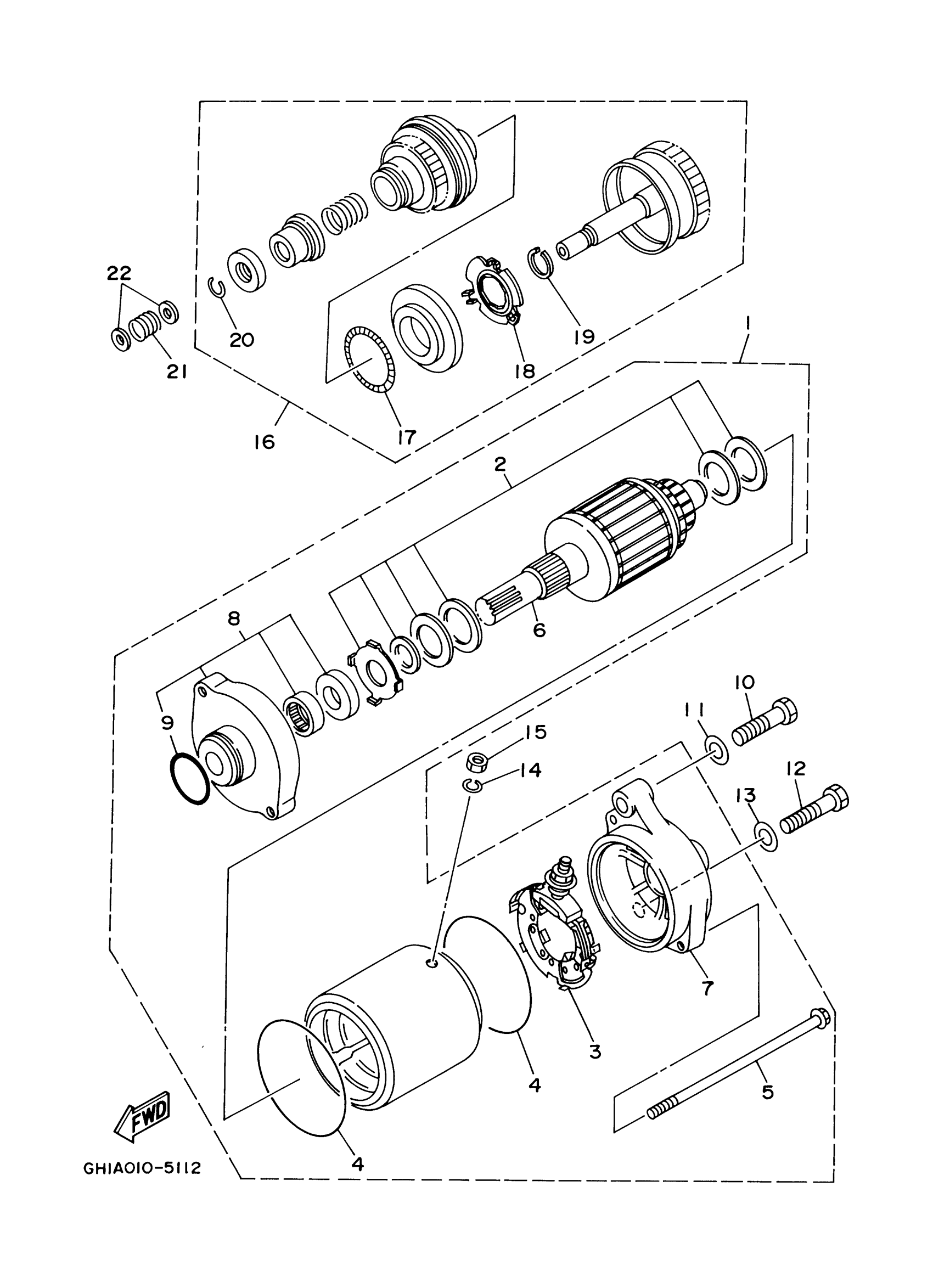

Yamaha XL700A (XL700) F0M9 2002 STARTING MOTOR Diagram

#

Description
Price

1

STARTING MOTOR ASSY

6M6-81800-10-00

$367.90

2

WASHER KIT

3AJ-81809-00-00

Unavailable

3

. BRUSH HOLDER ASSY

6M6-81840-10-00

$122.71

4

GASKET

35C-81844-00-00

Unavailable

5

. BOLT

6M6-81826-00-00

$8.51

6

. ARMATURE ASSY

6M6-81850-00-00

$487.86

7

. REAR BRACKET ASSY

6M6-81820-00-00

$171.20

8

. FRONT BRACKET ASSY

6M6-81830-00-00

$136.35

9

O-RING (437)

93210-24235-00

$5.34

10

BOLT

97014-08040-00

$4.90

11

.. WASHER, PLATE

92990-08600-00

$2.17

12

BOLT

97013-08035-00

$4.48

13

.. WASHER, PLATE

92990-08600-00

$2.17

14

WASHER, SPRING

92995-06100-00

$2.95

15

NUT(650)

95380-06700-00

$5.75

16

IDLE GEAR COMP.

6M6-8183E-01-00

$431.80

17

. WEIGHT SPRING

6M6-81866-00-00

$14.38

18

. WEIGHT HOLDER

6M6-81865-00-00

$10.74

19

CIRCLIP(6M6)

93440-25M08-00

Unavailable

20

CIRCLIP(6M6)

93450-18M06-00

Unavailable

21

SPRING, COMPRESSION

90501-14M73-00

$7.40

22

WASHER, PLAIN (646)

92990-06600-00

Unavailable
