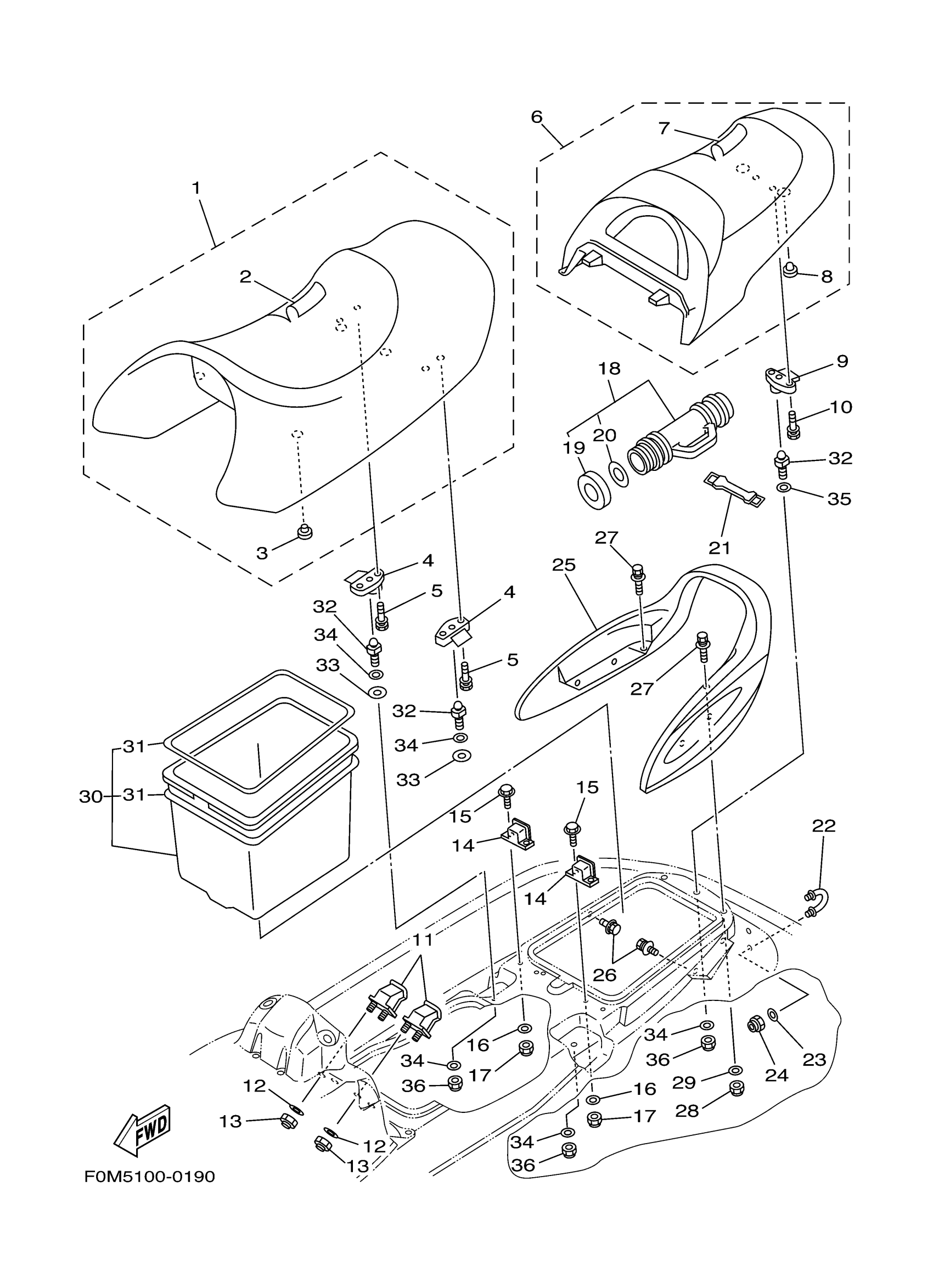

Yamaha XL700A (XL700) F0M9 2002 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

GU2-U371A-40-00

Unavailable

2

. COVER, SEAT 1

GU2-U371B-40-00

Unavailable

3

STOPPER MAIN STAND

278-27114-00-00

$7.90

4

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

SINGLE SEAT ASSY

GU2-U372A-40-00

Unavailable

7

. COVER, SEAT

GU2-U372B-40-00

Unavailable

8

STOPPER MAIN STAND

278-27114-00-00

$7.90

9

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

10

BOLT, WITH WASHER

90119-06808-00

$2.16

11

STAY, SEAT 1

GU2-6378C-00-00

$62.11

12

WASHER

9299R-06200-00

$0.43

13

NUT, NYLON

9572R-06300-00

$2.80

14

STAY,SEAT 2

GU2-6378D-02-00

$19.68

15

BOLT

90101-069U0-00

$1.23

16

WASHER

9299R-06200-00

$0.43

17

NUT, NYLON

9572R-06300-00

$2.80

18

CASE 2 ASSY.

EW2-U5920-00-00

Unavailable

19

. CAP, CASE

EW2-U5912-01-00

Unavailable

20

PACKING, CASE

EW2-U5913-01-00

Unavailable

21

BAND,WATER LOCK

EU0-U756E-00-00

Unavailable

22

BOW EYE 2 (C)

A00-61626-40-00

$43.92

23

WASHER

9299R-08200-00

Unavailable

24

NUT, NYLON (6J8)

95780-08300-00

$10.55

25

GRIP, HAND

GU2-U271B-00-00

Unavailable

26

BOLT, WITH WASHER

90119-06819-00

Unavailable

27

BOLT, WITH WASHER

90119-06820-00

$3.52

28

NUT, NYLON

9572R-06300-00

$2.80

29

WASHER

9299R-06200-00

$0.43

30

UNDER LOCKER ASSY

GJ3-U474A-01-00

Unavailable

31

PACKING 4

GJ3-U266C-02-00

$24.98

32

PIN

GH1-63774-01-00

$22.71

33

TAPE

GJ3-U5578-00-00

Unavailable

34

WASHER

9299R-10200-00

$1.63

35

WASHER, PLATE

90201-109U6-00

$3.29

36

NUT, NYLON

9572R-10300-00

$3.37
