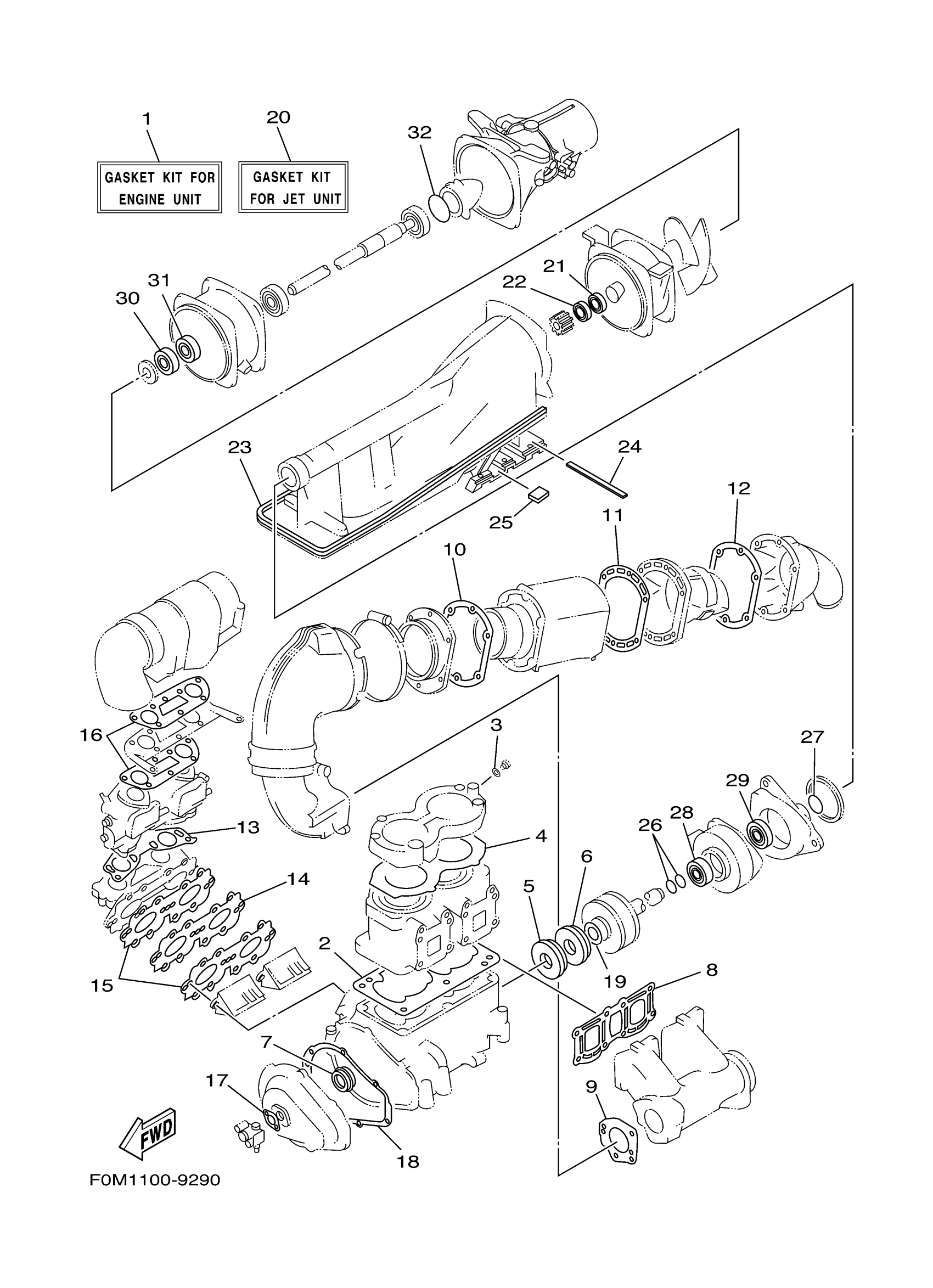

Yamaha XL700A (XL700) F0M9 2002 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT

62T-W0001-02-00

$222.39

2

GASKET, CYLINDER

6M6-11351-A2-00

$17.94

3

GASKET

90430-08003-00

$1.60

4

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$56.00

5

. OIL SEAL

93102-36M33-00

$15.95

6

. OIL SEAL

93101-36M46-00

$13.29

7

. OIL SEAL

93103-32M01-00

$15.19

8

GASKET, EXHAUST PIPE

62T-14613-01-00

$20.89

9

GASKET, MUFFLER DAMPER 2

62T-14749-02-00

$18.99

10

GASKET, EXHAUST OUTER COVER

62T-41114-01-00

$16.99

11

. GASKET, EXHAUST INNER COVER

62T-41122-00-00

$38.49

12

. GASKET, EXHAUST OUTER COVER

62T-41124-00-00

$10.99

13

. GASKET, MANIFOLD

62T-13556-00-00

$12.15

14

. PLATE,REED VALVE

62T-13624-00-00

$19.39

15

. GASKET

62T-13566-00-00

$9.11

16

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

$5.69

17

. GASKET, PUMP CASE

6R8-13116-A0-00

$3.03

18

. GASKET, HOLE COVER

6M6-81365-A0-00

$35.88

19

SEAL

62T-45127-01-00

Unavailable

20

GASKET KIT FOR JET UNIT

65U-W0001-20-00

Unavailable

21

OIL SEAL

93102-17M49-00

Unavailable

22

OIL SEAL

93102-17M50-00

Unavailable

23

. FELT, PACKING

6R8-51367-01-00

$10.63

24

. FELT, PACKING

63M-51367-00-00

$4.48

25

. FELT, PACKING

63M-51368-00-00

$3.58

26

O-RING(6R7)

93210-17MA4-00

Unavailable

27

O-RING

93210-35M72-00

Unavailable

28

OIL SEAL(62T)

93101-25M55-00

Unavailable

29

OIL SEAL

93101-24001-00

Unavailable

30

OIL SEAL(6R7)

93102-25M34-00

Unavailable

31

OIL SEAL(6R7)

93101-25M50-00

Unavailable

32

. O-RING

93210-46M16-00

$7.59
