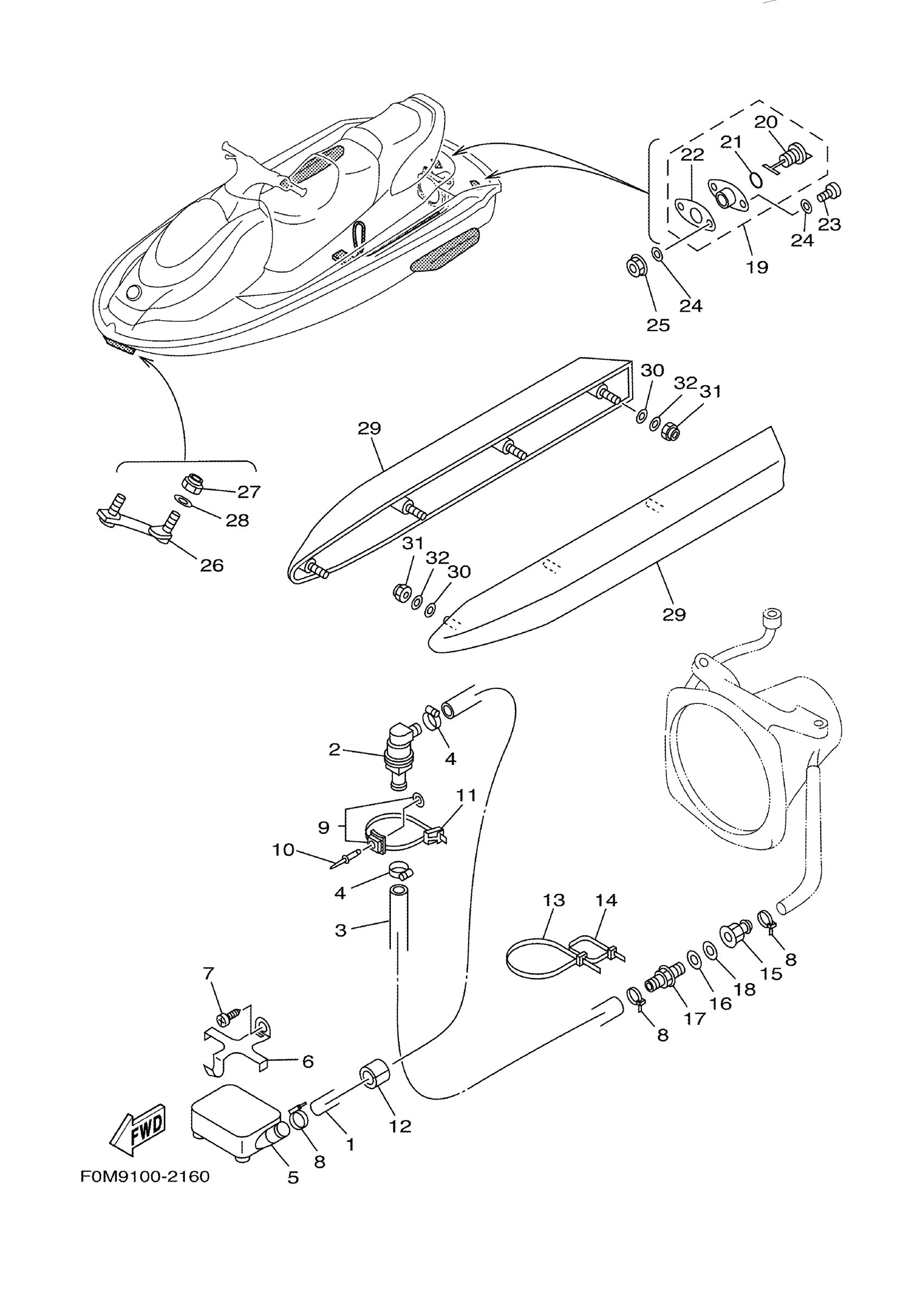

Yamaha XL700A (XL700) F0M9 2002 HULL DECK Diagram

#

Description
Price

1

HOSE

90445-14M11-00

Unavailable

2

JOINT, HOSE

68N-5112T-00-00

$47.39

3

HOSE

90445-19M01-00

Unavailable

4

BAND, HOSE 18

90601-118UF-00

$2.22

5

STRAINER, BILGE

GD0-U761D-00-00

Unavailable

6

BASE, STRAINER BLIGE

EW2-67618-00-00

$35.88

7

SCREW, TAPPING

9778R-50112-00

Unavailable

8

BAND

90601-200U1-00

$2.77

9

CLAMP COMP (EU0)

90600-91736-00

$6.22

10

RIVET, BLIND

90267-489U7-00

Unavailable

11

CLAMP

90464-32801-00

$1.29

12

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

13

NYLON CLIP 1(GD0)

90601-20016-00

$8.90

14

BAND

90601-200U4-00

Unavailable

15

CONNECTION, THRU-HULL 1/4

90604-80759-00

$18.64

16

GASKET

90430-13909-00

Unavailable

17

CONNECTION, THROUGH HALL (GD0)

90604-80775-00

Unavailable

18

GASKET

90430-13909-00

Unavailable

19

DRAIN PLUG ASSY

EU0-62280-00-00

$28.23

20

. PLUG, DRAIN

EU0-62282-00-00

$7.59

21

. O-RING

EU0-62283-00-00

$3.79

22

. PACKING DRAIN (EU0)

EU0-62285-01-00

$5.82

23

SCREW, PAN HEAD

9788R-05025-00

$2.66

24

WASHER

9299R-05200-00

$4.60

25

NUT, FLANGE

9572R-05300-00

$1.51

26

BOWEYE 1

FN8-U1624-00-00

Unavailable

27

NUT, NYLON (6J8)

95780-08300-00

$11.48

28

WASHER

9299R-08200-00

Unavailable

29

STABILIZER (BLACK)

GH3-U883M-30-00

Unavailable

30

PACKING, STABILIZER

GT3-U883U-00-00

Unavailable

31

NUT, NYLON

9572R-06300-00

$2.93

32

WASHER

9299R-06200-00

$0.43
