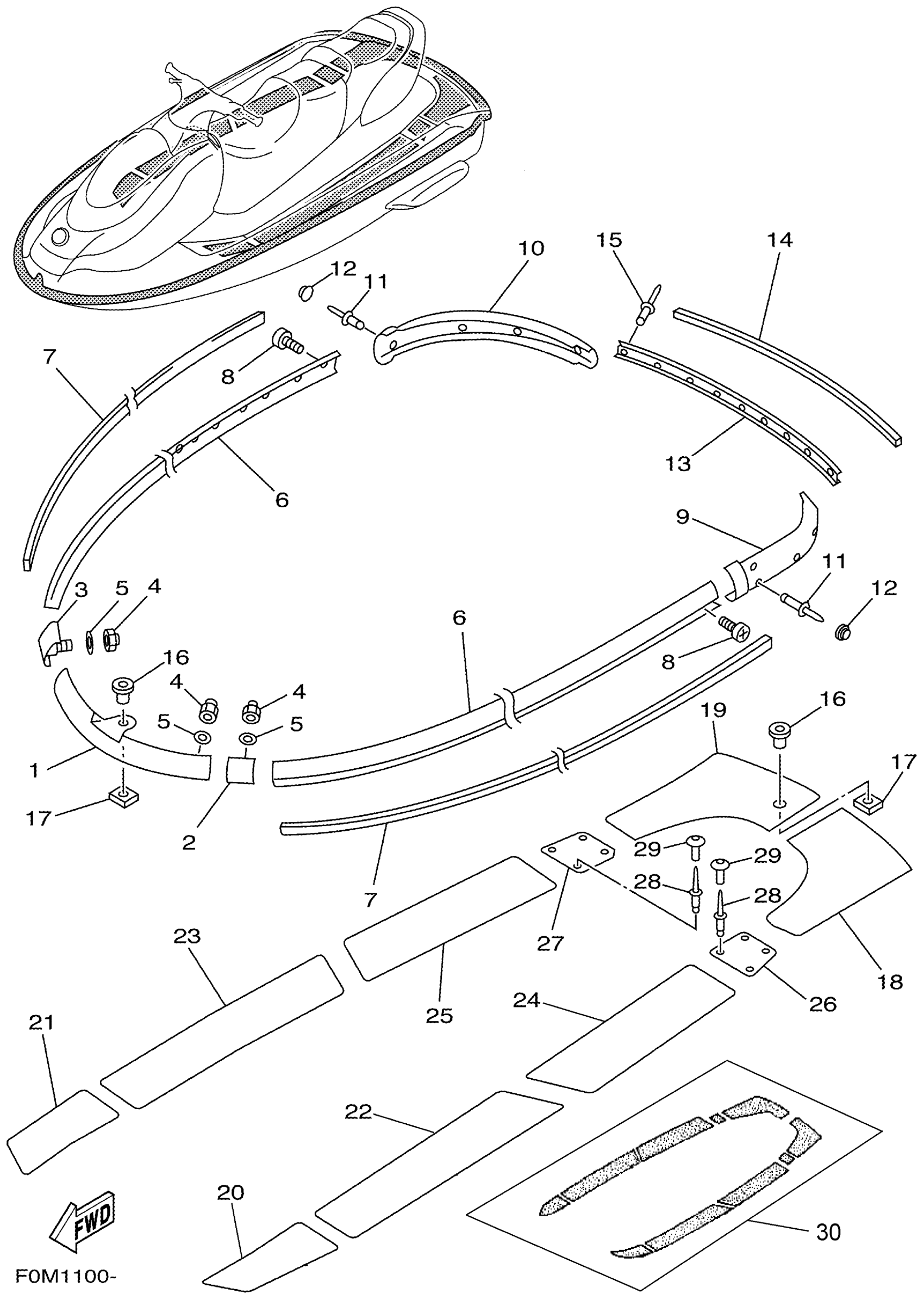

Yamaha XL700A (XL700) F0M9 2002 GUNWALE MAT Diagram

#

Description
Price

1

BOW GUNWALE COMP.

GJ3-U2501-20-00

Unavailable

2

JOINT, GUNWALE LH

GU2-6252E-10-00

$18.89

3

JOINT, GUNWALE RH

GU2-6252F-10-00

Unavailable

4

NUT, NYLON

9572R-06300-00

$2.80

5

WASHER

9299R-06200-00

$0.43

6

GUNWALE, SIDE

GH3-U2512-20-00

Unavailable

7

INNER, GUNWALE

GJ3-U2519-60-00

Unavailable

8

SCREW,TAPPING

90169-059U1-00

$1.05

9

GUNWALE, STERN 1

GJ3-U251D-21-00

Unavailable

10

GUNWALE, STERN 2

GJ3-U251E-21-00

Unavailable

11

RIVET, BLIND

90267-489U8-00

$0.99

12

CAP, HEAD (BLACK)

GJ3-U354D-30-00

$1.23

13

COVER, GUNWALE 1

GJ3-U252C-20-00

Unavailable

14

COVER, GUNWALE 2

GJ3-U252D-40-00

Unavailable

15

RIVET, BLIND

90267-489U8-00

$0.99

16

ROPE HOLE

FN8-61651-01-00

$5.00

17

NUT

EU0-61652-00-00

$11.48

18

MAT, UPPER LH

GU2-U358F-02-00

Unavailable

19

MAT, UPPER RH

GU2-U358G-02-00

Unavailable

20

MAT, STEP 1

GU2-U351H-10-00

Unavailable

21

MAT, STEP 2

GU2-U351J-10-00

Unavailable

22

MAT, STEP 5

GU2-U351N-10-00

Unavailable

23

MAT, STEP 6

GU2-U351P-10-00

Unavailable

24

MAT, STEP 7

GU2-U351R-02-00

Unavailable

25

MAT, STEP 8

GU2-U351S-10-00

Unavailable

26

MAT, STEP 4

GH3-U351M-50-00

Unavailable

27

MAT, STEP 4

GH3-U351M-60-00

Unavailable

28

RIVET, BLIND

90267-48802-00

$1.98

29

PLUG, MUSHROOM

GJ3-U352E-50-00

Unavailable

30

MAT KIT BLACK

GU2-MATKT-00-BK

Unavailable
