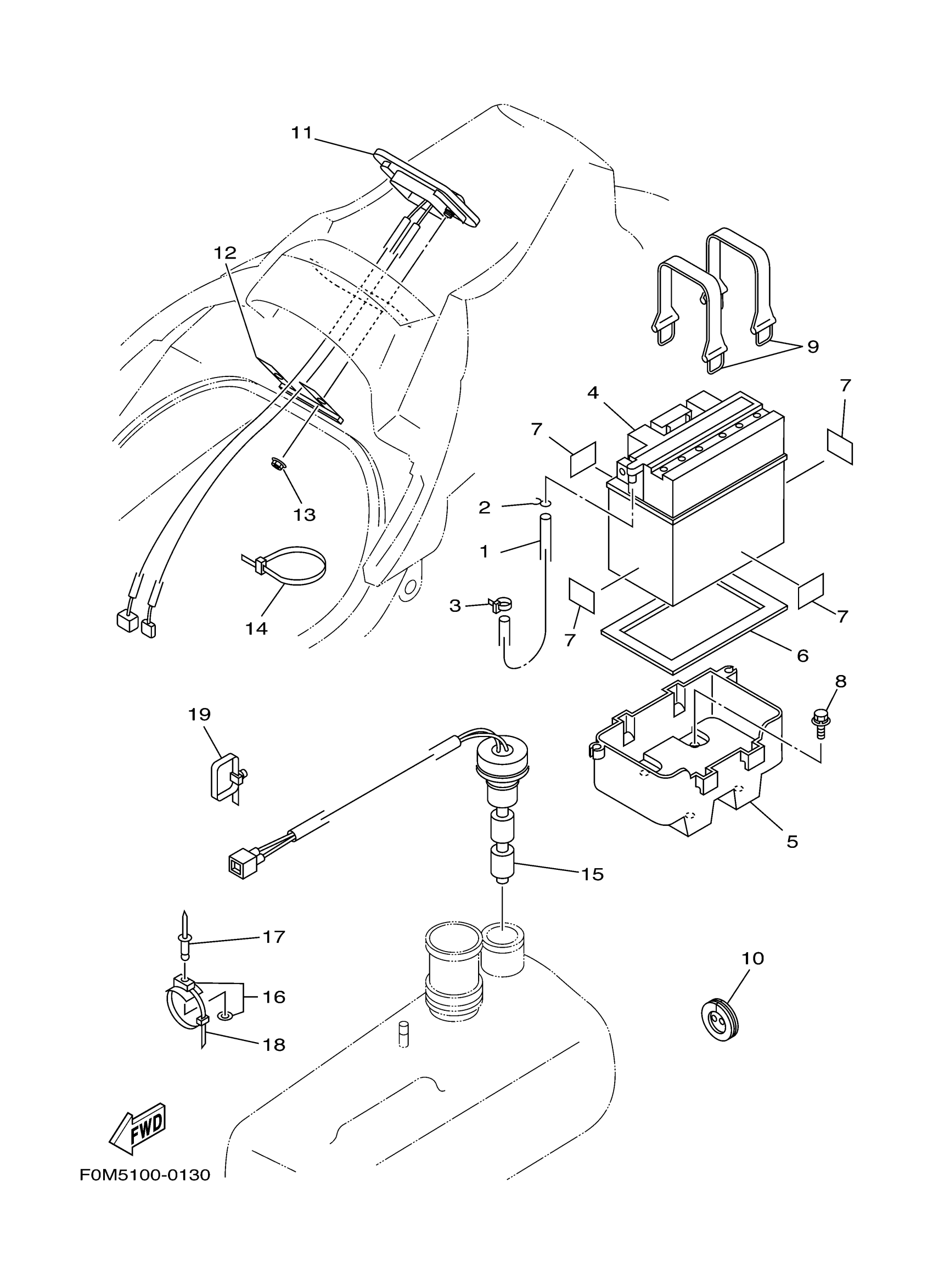

Yamaha XL700A (XL700) F0M9 2002 ELECTRICAL 2 Diagram

#

Description
Price

1

HOSE, AIR VENT 3

EU0-U7856-50-00

Unavailable

2

CLIP

90467-089U1-00

$1.44

3

CLAMP

90600-91060-00

$8.32

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

5

CASE, BATTERY

GP7-U8211-00-00

Unavailable

6

PAD, BATTERY

F1S-U8221-00-00

$2.75

7

PAD, BATTERY

EU0-U8221-31-00

$1.65

8

BOLT, WITH WASHER

90119-069US-00

$2.52

9

BAND,BATTERY 1

EU0-U821D-00-00

$7.33

10

GROMMET

FJ0-68222-01-00

Unavailable

11

METER ASSY

F0M-6820A-00-00

Unavailable

12

BRACKET, METER

F0M-68238-00-00

$57.56

13

NUT, FLANGE

9572R-05300-00

$1.43

14

CLAMP

90464-32801-00

$1.23

15

SENDER, OIL

GJ8-U824C-01-00

Unavailable

16

CLAMP COMP (EU0)

90600-91736-00

Unavailable

17

RIVET, BLIND

90267-48802-00

$1.98

18

CLAMP

90464-32801-00

$1.23

19

CLAMP

90600-944U8-00

Unavailable
