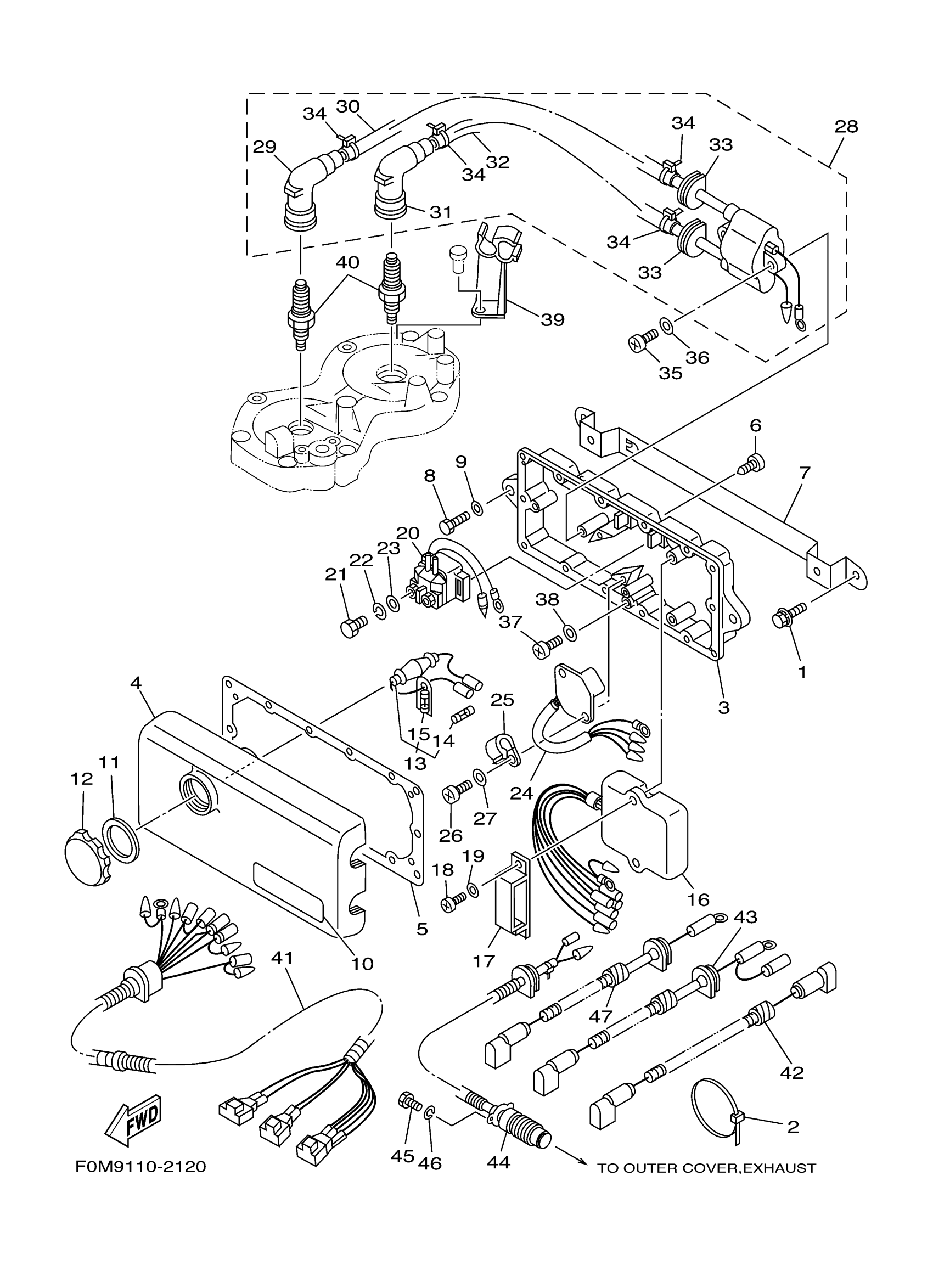

Yamaha XL700A (XL700) F0M9 2002 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08800-00

$4.31

2

BAND (EU0)

90601-20009-00

$6.27

3

HOUSING

62L-8552A-00-8P

$159.69

4

COVER, CASE

6M6-8552E-01-00

$77.60

5

GASKET, TERMINAL

6M6-81921-00-00

$20.13

6

SCREW, TAPPING(65J)

97780-60625-00

$2.64

7

BRACKET

66D-85542-00-00

$68.64

8

BOLT (62G)

97095-08025-00

$6.12

9

.. WASHER, PLATE

92990-08600-00

$2.41

10

MARK 3

6R7-83623-40-00

$7.16

11

GASKET

6M6-81844-00-00

$10.99

12

CAP

6M6-8132W-00-00

$14.16

13

FUSE HOLDER ASSY

6K8-82150-02-00

Unavailable

14

FUSE (10A)

1E6-82151-00-00

$5.80

15

FUSE SPEAR (10A)

6K8-82159-01-00

Unavailable

16

C.D.I. UNIT ASSY

62T-85540-04-00

Unavailable

17

CLAMP

90464-06M29-00

$6.27

18

SCREW, PAN HEAD

98580-06016-00

$2.96

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

STARTER RELAY ASSY

68N-81940-00-00

$87.01

21

BOLT

97085-06010-00

$1.29

22

WASHER, SPRING

92995-06100-00

$3.04

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

RECTIFIER & REGULATOR ASSY

6M6-81960-A0-00

Unavailable

25

CLAMP

90465-06M86-00

$6.94

26

SCREW, PAN HEAD

98580-06016-00

$2.96

27

WASHER, PLAIN (646)

92990-06600-00

Unavailable

28

IGNITION COIL ASSY

62E-85570-11-00

$198.21

29

. CAP, PLUG

62E-82371-11-00

$41.78

30

. TUBE, CORD

62E-82351-01-00

$6.27

31

. CAP, PLUG

62E-82371-11-00

$41.78

32

. TUBE, CORD 2

62E-82352-01-00

$4.39

33

GROMMET

90480-06M43-00

$5.69

34

CLAMP

90465-10098-00

$2.24

35

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.71

36

WASHER, PLAIN (646)

92990-06600-00

Unavailable

37

SCREW, PAN HEAD

98580-06016-00

$2.96

38

WASHER, PLAIN (646)

92990-06600-00

Unavailable

39

CLAMP, CORD

62T-82361-00-00

$10.99

40

BR8HS NGK SCREW TOP PLUG 4PK

BR8-HS000-00-00

$4.28

41

EXTENSION, WIRE LEAD

63N-82553-00-00

$247.75

42

WIRE, LEAD

63N-82117-00-00

$116.40

43

WIRE, LEAD

63N-82117-11-00

$74.61

44

THERMO SWITCH ASSY

62T-82560-11-00

$182.07

45

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

46

WASHER, SPRING

92995-06100-00

$3.04

47

WIRE, LEAD

62L-82117-20-00

$88.04
