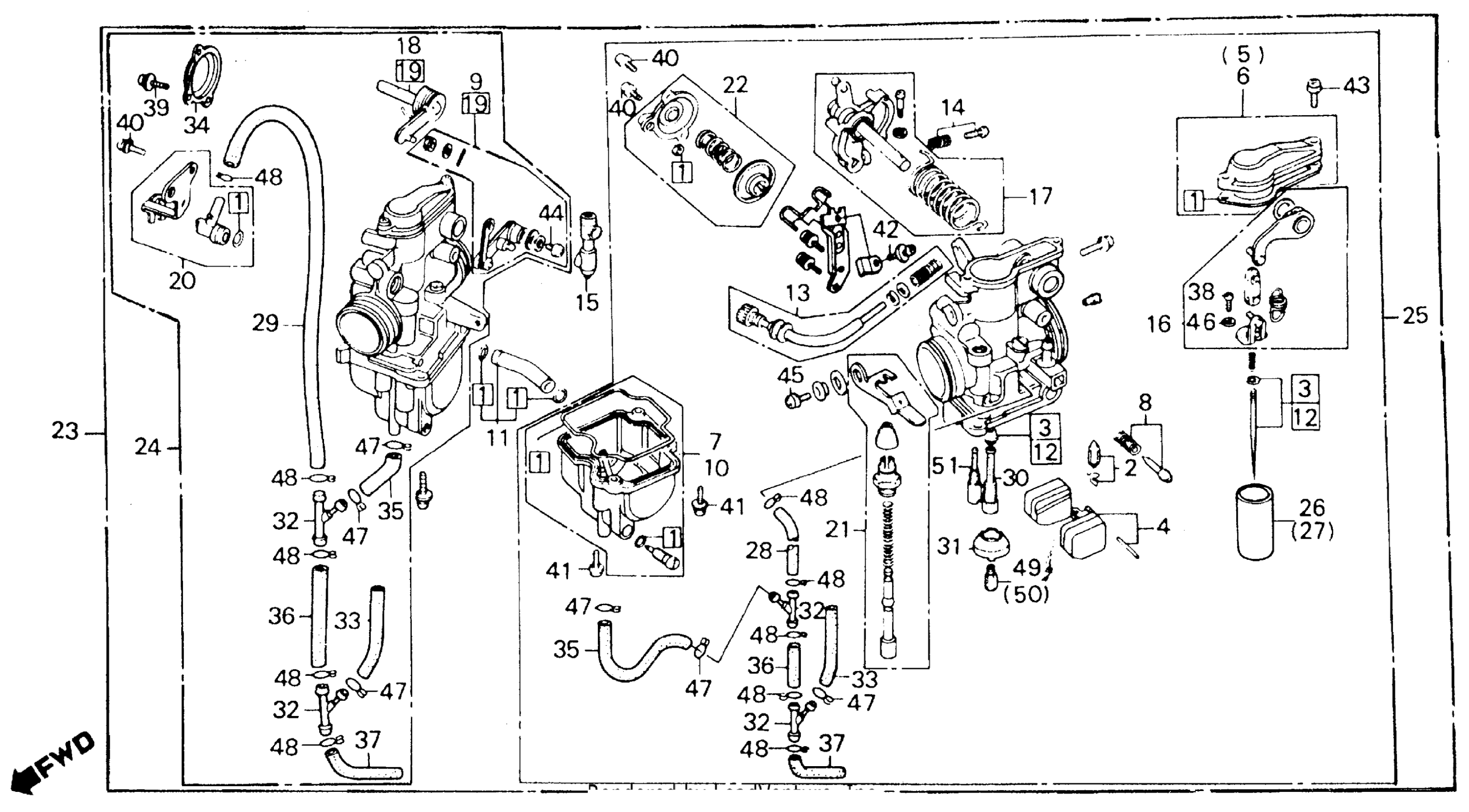

Honda XL600RAC (87) MOTORCYCLE, JPN, VIN# JH2PD031-HK400001 AC CARBURETOR 86-87 Diagram

#

Description
Price

1

GASKET SET

16010-MG2-305

$43.84

1

GASKET SET This part replaces 16010-MG2-791.

16010-MG2-305

$43.84

2

VALVE SET, FLOAT This part replaces 16011-KG0-891.

16011-KCK-910

$33.82

2

VALVE SET, FLOAT This part replaces 16011-382-004.

16011-KCK-910

$33.82

3

NEEDLE SET, PRIMARY JET

16012-ML6-671

Unavailable

4

FLOAT SET

16013-KG0-891

Unavailable

5

TOP SET

16014-MG2-601

Unavailable

6

TOP SET, PRIMARY

16014-MG2-881

Unavailable

7

CHAMBER SET, FLOAT

16015-ML6-671

Unavailable

8

SCREW SET (NOT AVAILABLE)

16016-MG2-791

Unavailable

10

CHAMBER SET, FLOAT

16023-ML6-671

Unavailable

11

JOINT SET, FUEL

16026-KF0-004

Unavailable

12

NEEDLE SET, SECONDARY JET

16027-MG2-881

Unavailable

13

SCREW SET

16028-KF0-004

Unavailable

14

SCREW SET

16029-KG0-004

Unavailable

15

HOLDER SET, ADJ.

16030-MK5-004

Unavailable

16

ARM SET, PRIMARY LINK (NOT AVAILABLE)

16031-MG3-004

Unavailable

17

LINK SET, PRIMARY THROTTLE

16032-ML6-671

Unavailable

19

LEVER SET, LINK

16035-ML6-671

Unavailable

20

JOINT SET, FUEL

16037-MG3-004

Unavailable

21

VALVE SET, STARTER (NOT AVAILABLE)

16046-MG2-891

Unavailable

22

VALVE SET, AIR CUT

16048-KG0-891

Unavailable

23

CARBURETOR ASSY.

16100-ML6-745

Unavailable

24

CARBURETOR ASSY., R.

16101-ML6-742

Unavailable

25

CARBURETOR ASSY., L.

16102-ML6-742

Unavailable

26

VALVE, PRIMARY THROTTLE

16112-MG2-891

Unavailable

27

VALVE, THROTTLE (A)

16112-MG3-004

Unavailable

28

TUBE

16143-ML6-741

Unavailable

29

TUBE This part replaces 16144-ML6-741.

16144-ML6-405

Unavailable

30

HOLDER, NEEDLE JET

16165-MG2-761

Unavailable

31

HOLDER, JET

16168-KF0-004

Unavailable

32

JOINT

16180-ML6-671

$15.97

33

TUBE

16191-ML6-741

Unavailable

34

COVER, AIR CUT VALVE (NOT AVAILABLE)

16193-KB4-671

Unavailable

35

TUBE

16195-ML6-741

Unavailable

36

TUBE

16198-ML6-741

Unavailable

37

PIPE, AIR VENT

16199-ML6-741

Unavailable

38

SCREW, PAN (3X8)

93500-03008-0H

$1.49

38

SCREW, PAN (3X8) This part replaces 93500-03008-1H.

93500-03008-0H

$1.49

39

SCREW, PAN (4X8)

93500-04008-0H

$1.49

40

SCREW, PAN (4X10)

93500-04010-0H

$1.49

41

SCREW, PAN (4X14)

93500-04014-0H

$1.49

42

SCREW-WASHER (4X10)

93892-04010-08

$1.49

43

SCREW-WASHER (4X16)

93892-04016-08

$1.49

44

SCREW-WASHER (4X20)

93892-04020-08

Unavailable

44

SCREW-WASHER (4X20) This part replaces 93892-04020-18.

93892-04020-08

Unavailable

45

SCREW-WASHER (5X14)

93892-05014-08

$1.49

45

SCREW-WASHER (5X14) This part replaces 93892-05014-18.

93892-05014-08

$1.49

46

WASHER, SPRING (3MM)

94111-03800

$1.49

47

CLIP, TUBE (B8)

95002-02080

$1.80

48

CLIP, TUBE (B10)

95002-02100

$1.90

49

JET (#112)

99101-GHB-1120

$7.98

49

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.77

49

JET, MAIN (#115)

99101-MAZ-1150

$8.77

49

JET (#112) This part replaces 99101-393-1120.

99101-GHB-1120

$7.98

49

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.77

50

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.77

50

JET, MAIN (#118) This part replaces 99101-GHB-1180.

99101-MBZ-1180

$10.56

50

JET, MAIN (#115)

99101-MAZ-1150

$8.77

50

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.77

50

JET, MAIN (#118) This part replaces 99101-393-1180.

99101-MBZ-1180

$10.56

51

JET, SLOW (#62)

99103-MG3-0620

Unavailable
