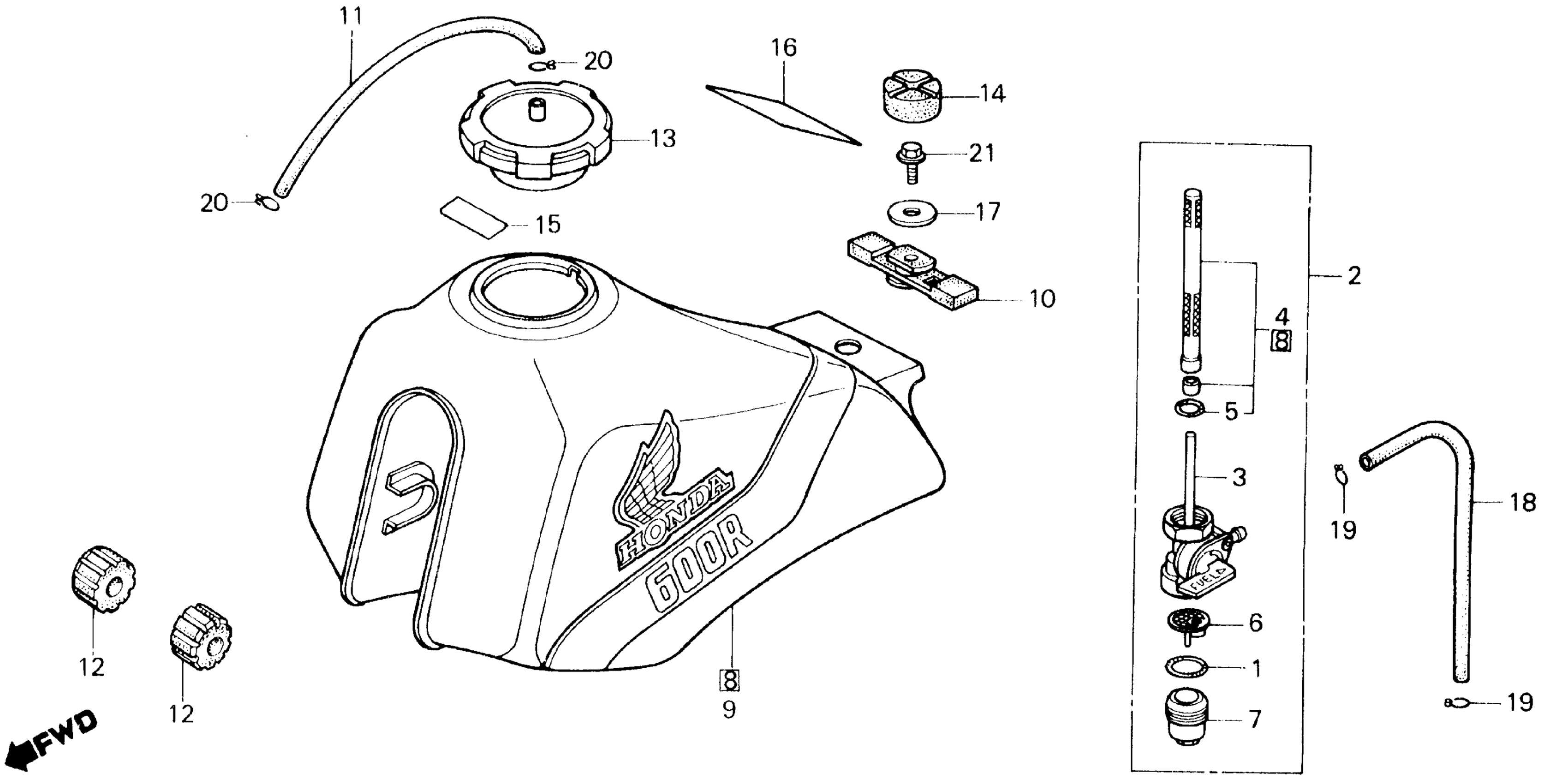

Honda XL600RAC (86) MOTORCYCLE, JPN, VIN# JH2PD031-GK300001 TO JH2PD031-GK301422 FUEL TANK Diagram

#

Description
Price

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

2

PETCOCK ASSY.

16950-KBR-000

$113.25

2

PETCOCK ASSY. This part replaces 16950-MG2-005.

16950-KBR-000

$113.25

3

BODY, VALVE (NOT AVAILABLE)

16951-KB7-005

Unavailable

4

SCREEN SET, FUEL STRAINER This part replaces 16952-MG2-005.

16952-KPM-003

Unavailable

5

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

5

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

6

FILTER, CUP

16959-471-831

$9.35

7

CUP, FUEL STRAINER

16967-MA2-771

$25.08

9

TANK SUB-ASSY., FUEL *NH138* (SHASTA WHITE)

17500-ML6-740ZA

Unavailable

10

RUBBER, RR. FUEL TANK

17503-KG0-000

$20.54

11

TUBE, FUEL CAP BREATHER

17530-437-000

$8.92

12

RUBBER, FR. FUEL TANK

17611-MG2-000

$11.43

13

CAP, FUEL FILLER This part replaces 17620-KE1-003.

17620-KE1-023

$42.29

13

CAP, FUEL FILLER This part replaces 17620-KE1-013.

17620-KE1-023

$42.29

14

RUBBER, FR. SEAT SETTING

77202-MG2-000

Unavailable

15

LABEL, ENGINE OIL CAUTION

87515-MK5-600

Unavailable

16

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

17

WASHER, TANK SETTING

90136-428-870

$1.56

18

BULK HOSE, FUEL (5.5X3000) (5.5X70)

95001-55003-60M

$47.32

19

CLIP, TUBE (B10)

95002-02100

$1.90

20

CLIP, TUBE (C9)

95002-50000

$1.49

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
