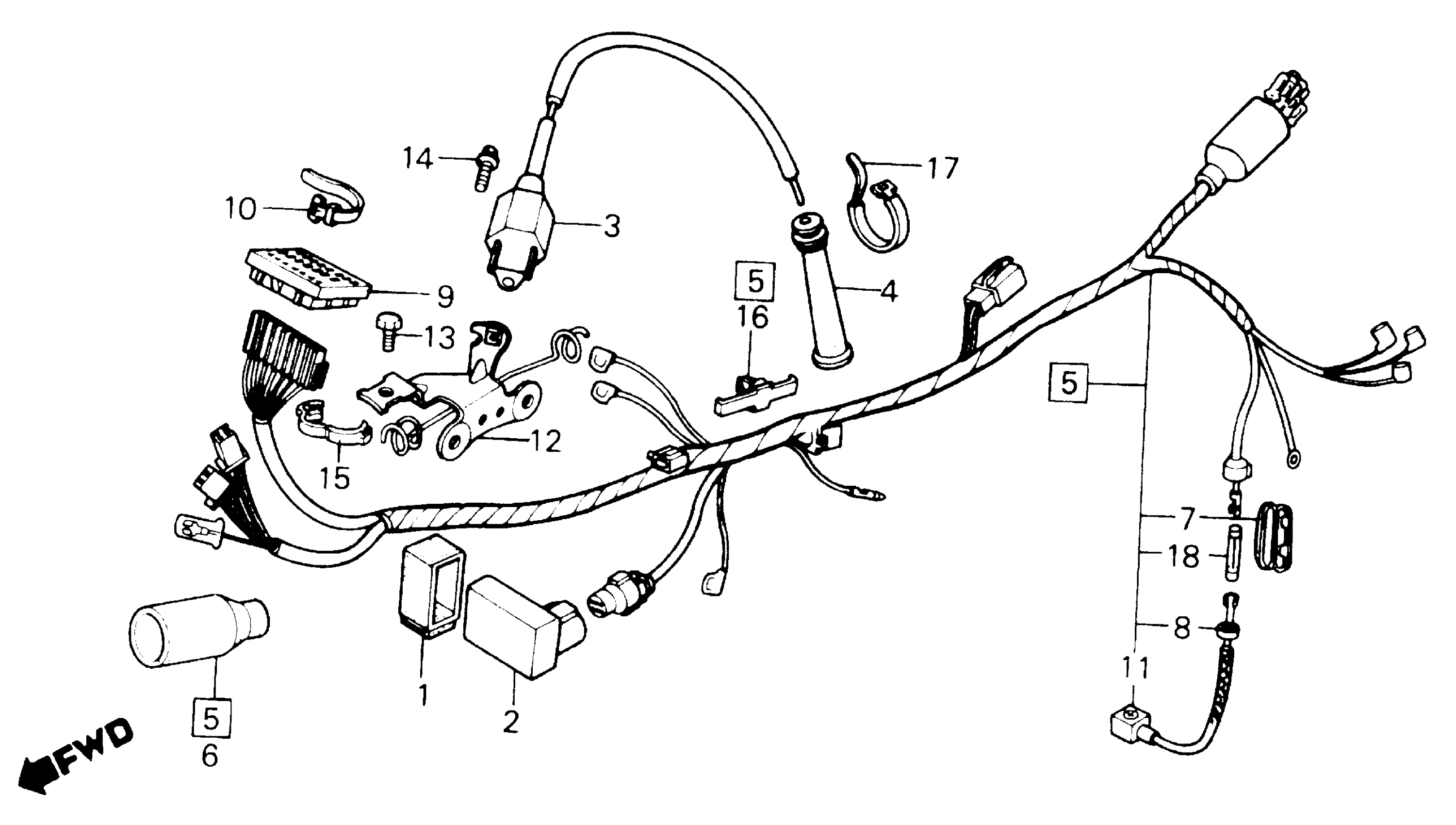

Honda XL600RA (87) MOTORCYCLE, JPN, VIN# JH2PD030-HK400002 WIRE HARNESS + IGNITION COIL Diagram

RUBBER, IGNITION CONTROL MODULE

30401-VM0-000

$4.22

MODULE, IGNITION CONTROL (CDI)

30410-MG2-892

Unavailable

COIL, IGNITION

30510-GR2-405

$74.70

COIL, IGNITION This part replaces 30510-KB9-750.

30510-GR2-405

$74.70

CAP ASSY. This part replaces 30700-KF0-153.

30700-MK4-612

$18.93

CAP ASSY. This part replaces 30700-KF0-163.

30700-MK4-612

$18.93

CAP ASSY. This part replaces 30700-MK4-611.

30700-MK4-612

$18.93

WIRE HARNESS

32100-ML6-670

Unavailable

COVER, CONNECTOR (NOT AVAILABLE)

32108-355-000

Unavailable

CASE, FUSE CONNECTOR

32111-230-000

$4.28

COVER B, FUSE CASE

32124-GB2-720

Unavailable

MULTI-CONNECTOR (10X3)

32150-MG2-003

Unavailable

COVER, BATTERY TERMINAL

32412-KG8-000

Unavailable

GUIDE, WIRE HARNESS

50290-ML6-670

Unavailable

BOLT, FLANGE (6X10) This part replaces 90170-MG3-000.

95701-06010-00

$1.49

BOLT-WASHER (5X20)

90189-MG3-000

Unavailable

CLIP, WIRE HARNESS

90683-KJ2-003

$3.56

CLIP, WIRE HARNESS (BLACK)(HARNESS TAPING)

91507-693-003

$7.79

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

FUSE A (10A)

98200-11000

$1.80
