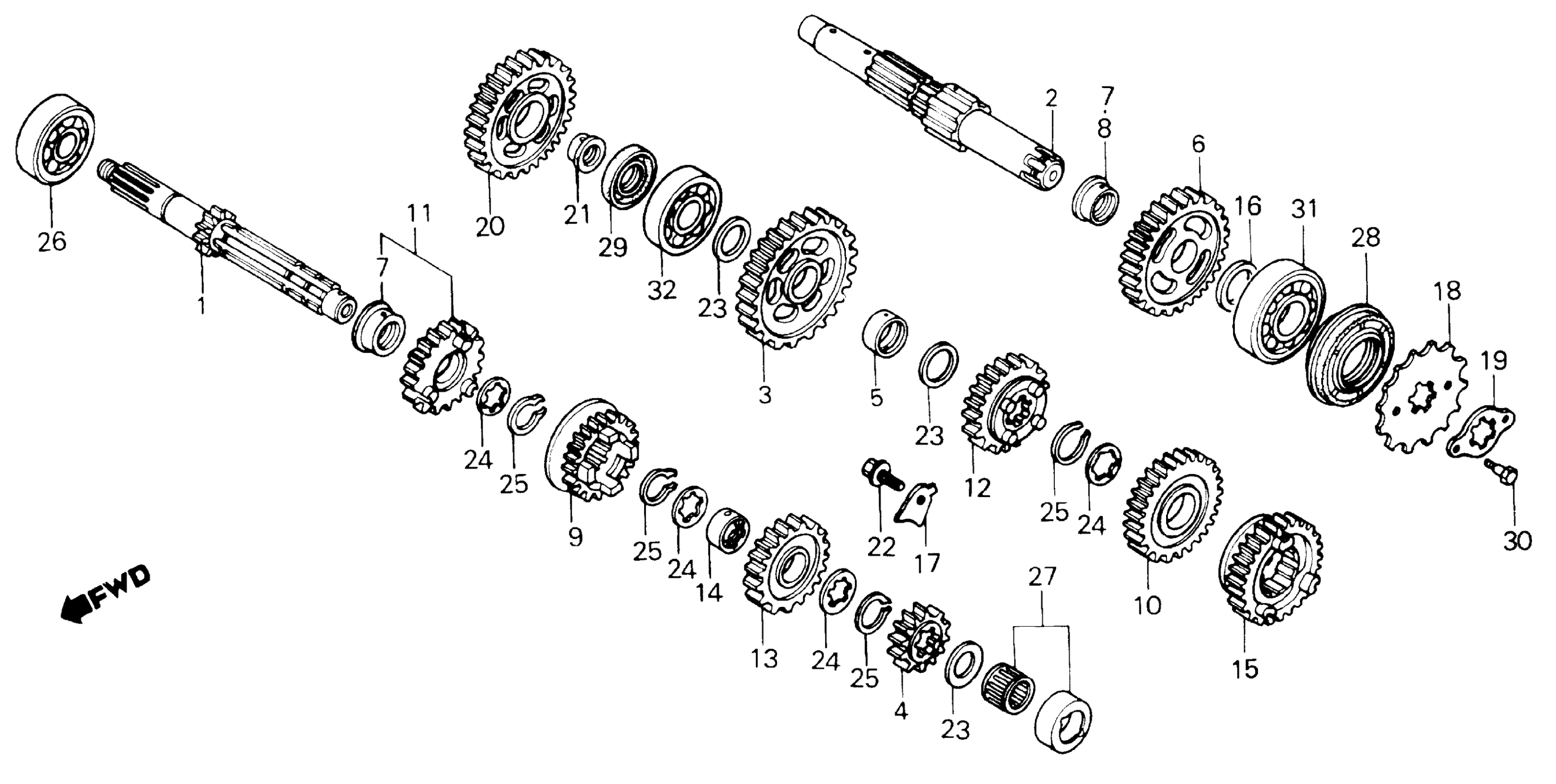

Honda XL600RA (87) MOTORCYCLE, JPN, VIN# JH2PD030-HK400002 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) This part replaces 23211-MG3-000.

23211-MN1-670

Unavailable

1

MAINSHAFT, TRANSMISSION (13T)

23211-MN1-670

Unavailable

2

COUNTERSHAFT This part replaces 23220-MK2-000.

23220-MN9-641

Unavailable

2

COUNTERSHAFT This part replaces 23220-MN9-640.

23220-MN9-641

Unavailable

2

COUNTERSHAFT

23220-MN9-641

Unavailable

3

GEAR, COUNTERSHAFT LOW (31T) This part replaces 23411-MG2-790.

23411-MN1-670

Unavailable

3

GEAR, COUNTERSHAFT LOW (31T)

23411-MN1-670

Unavailable

4

GEAR, MAINSHAFT SECOND (17T)

23421-MK2-000

Unavailable

5

BUSH (20MM)

23422-MG2-000

$23.00

6

GEAR, COUNTERSHAFT SECOND (28T)

23431-MK2-010

Unavailable

7

BUSH (25MM) This part replaces 23432-MG3-000.

23432-MN1-670

$27.93

7

BUSH (25MM)

23432-MN1-670

$27.93

8

BUSH (25MM)

23432-MK2-000

$27.93

9

GEAR, MAINSHAFT THIRD (20T)

23441-MK2-000

Unavailable

10

GEAR, COUNTERSHAFT THIRD (25T)

23451-MG2-790

Unavailable

11

GEAR, MAINSHAFT FOURTH (23T) This part replaces 23461-MG2-790.

23461-MN1-671

Unavailable

11

GEAR, MAINSHAFT FOURTH (23T) This part replaces 23461-MN1-670.

23461-MN1-671

Unavailable

11

GEAR, MAINSHAFT FOURTH (23T)

23461-MN1-671

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (23T)

23471-MG2-790

Unavailable

13

GEAR, MAINSHAFT FIFTH (25T) This part replaces 23481-MK2-000.

23481-MN1-670

Unavailable

13

GEAR, MAINSHAFT FIFTH (25T)

23481-MN1-670

Unavailable

14

BUSH, SPLINE (28MM)

23485-369-000

$29.59

15

GEAR, COUNTERSHAFT FIFTH (21T)

23491-MK2-010

Unavailable

16

WASHER, THRUST (25MM)

90412-ZE5-000

$4.71

17

PLATE, BEARING SETTING

23531-MG2-790

$4.46

18

SPROCKET, DRIVE (15T) This part replaces 23801-MC4-000.

23801-MK5-620

Unavailable

18

SPROCKET, DRIVE (15T)

23801-MK5-620

Unavailable

19

PLATE, DRIVE SPROCKET FIXING

23811-292-000

$2.51

20

GEAR, KICK STARTER IDLE (33T) This part replaces 28221-KN8-000.

28221-MN1-670

Unavailable

20

GEAR, KICK STARTER IDLE (33T)

28221-MN1-670

Unavailable

21

BUSH (16MM)

28222-MG3-000

Unavailable

22

BOLT, FLANGE SOCKET (6X14)

90071-MF5-000

$3.35

23

PLATE, THRUST (20MM)

90451-MG3-000

$4.13

24

WASHER, THRUST (25MM)

90451-413-000

$3.26

25

CIRCLIP (25MM)

90601-107-000

$3.74

26

BEARING, RADIAL BALL (5205A)

91002-422-008

$68.41

27

BEARING, NEEDLE (20MM)

91022-MG2-791

$46.80

28

OIL SEAL (25X45X7) (ARAI)

91204-MG3-003

$9.80

29

OIL SEAL (20X35X55)

91204-216-003

$6.31

30

BOLT, FLANGE (6X12)

90118-958-003

$3.24

31

BEARING, RADIAL BALL (6305)

91002-MG2-790

Unavailable

31

BEARING, RADIAL BALL (6305) (TOYO)

91002-MG2-791

$41.07

32

BEARING, RADIAL BALL (6204U) This part replaces 91003-MK2-680.

96140-62040-10

$21.84

32

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84
