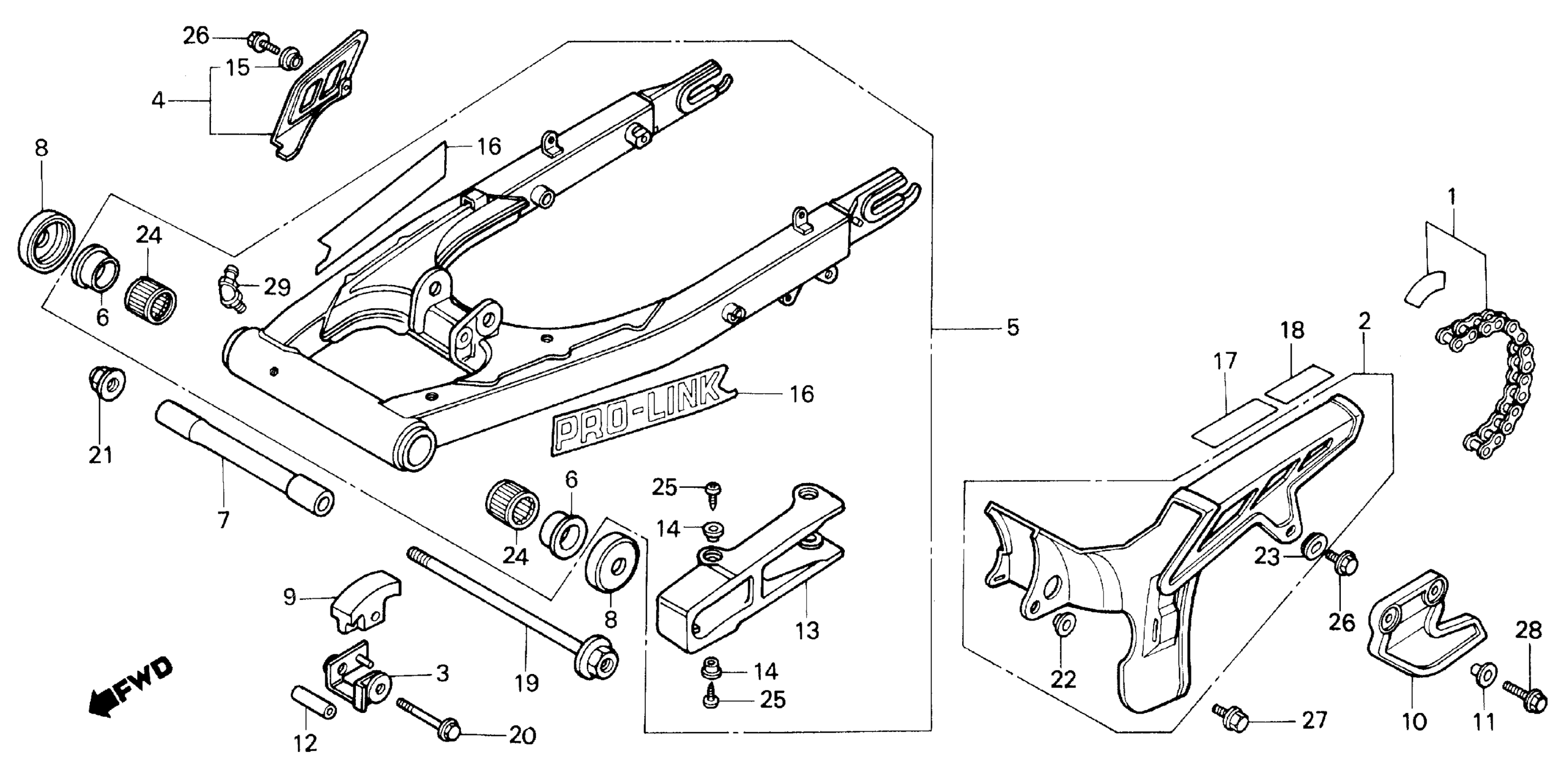

Honda XL600RA (87) MOTORCYCLE, JPN, VIN# JH2PD030-HK400002 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (520V.4-104) (DAIDO) This part replaces 405A3-MG2-005.

405A3-MG2-023

Unavailable

1

CHAIN SET, DRIVE (520V.4-104) (DAIDO) This part replaces 405A3-MG2-015.

405A3-MG2-023

Unavailable

1

CHAIN SET, DRIVE (520V.4-104) (DAIDO)

405A3-MG2-023

Unavailable

2

CASE, DRIVE CHAIN

40510-MG2-000

Unavailable

3

STAY, TENSIONER

50143-MA0-770

Unavailable

4

GUARD, PILLION STEP (NOT AVAILABLE)

50720-MG2-000

Unavailable

5

SWINGARM ASSY., RR.

52100-ML6-770

Unavailable

6

BUSH, PIVOT THRUST

52109-430-300

$16.01

7

COLLAR, RR. SWINGARM CENTER (NOT AVAILABLE)

52141-KF0-000

Unavailable

8

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-286-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK) This part replaces 52144-356-003.

52144-356-005

$17.31

8

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

9

SLIDER, CHAIN (NOT AVAILABLE)

52155-MG2-891

Unavailable

10

GUARD, CHAIN

52156-KB7-000

Unavailable

11

COLLAR, CHAIN GUARD

52159-KB7-000

$6.34

12

COLLAR, CHAIN ROLLER

52159-169-000

Unavailable

13

SLIDER, CHAIN

52170-KK0-771

$112.25

14

COLLAR, CHAIN SLIDER

52171-MC4-000

$4.99

15

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

16

MARK, SWINGARM

87121-KL3-760

Unavailable

17

MARK, TIRE CAUTION

87505-ML6-770

Unavailable

18

MARK, DRIVE CHAIN CAUTION

87509-ML6-770

Unavailable

19

BOLT, SWINGARM PIVOT

90121-MG3-000

Unavailable

20

BOLT, FLANGE (6X45) This part replaces 90176-MG3-000.

95801-06045-00

$2.06

20

BOLT, FLANGE (6X45)

95801-06045-00

$2.06

21

NUT, U (14MM)

90305-GE8-003

$3.86

22

WASHER (6X20)

90512-300-000

$3.08

23

WASHER (6X9)

90513-323-000

$1.84

24

BEARING, RR. SWINGARM PIVOT (TOYO)

91071-MA0-003

$33.10

24

BEARING, RR. SWINGARM PIVOT (TOYO) This part replaces 91071-MA0-004.

91071-MA0-003

$33.10

25

SCREW, TAPPING (6X12)

93901-26110

$1.49

26

BOLT, FLANGE (6X10) This part replaces 90170-MG3-000.

95701-06010-00

$1.49

27

BOLT, FLANGE (6X16)

90172-MG3-000

Unavailable

28

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

28

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

29

FITTING, GREASE (B.76S)

96201-80000

$2.56
