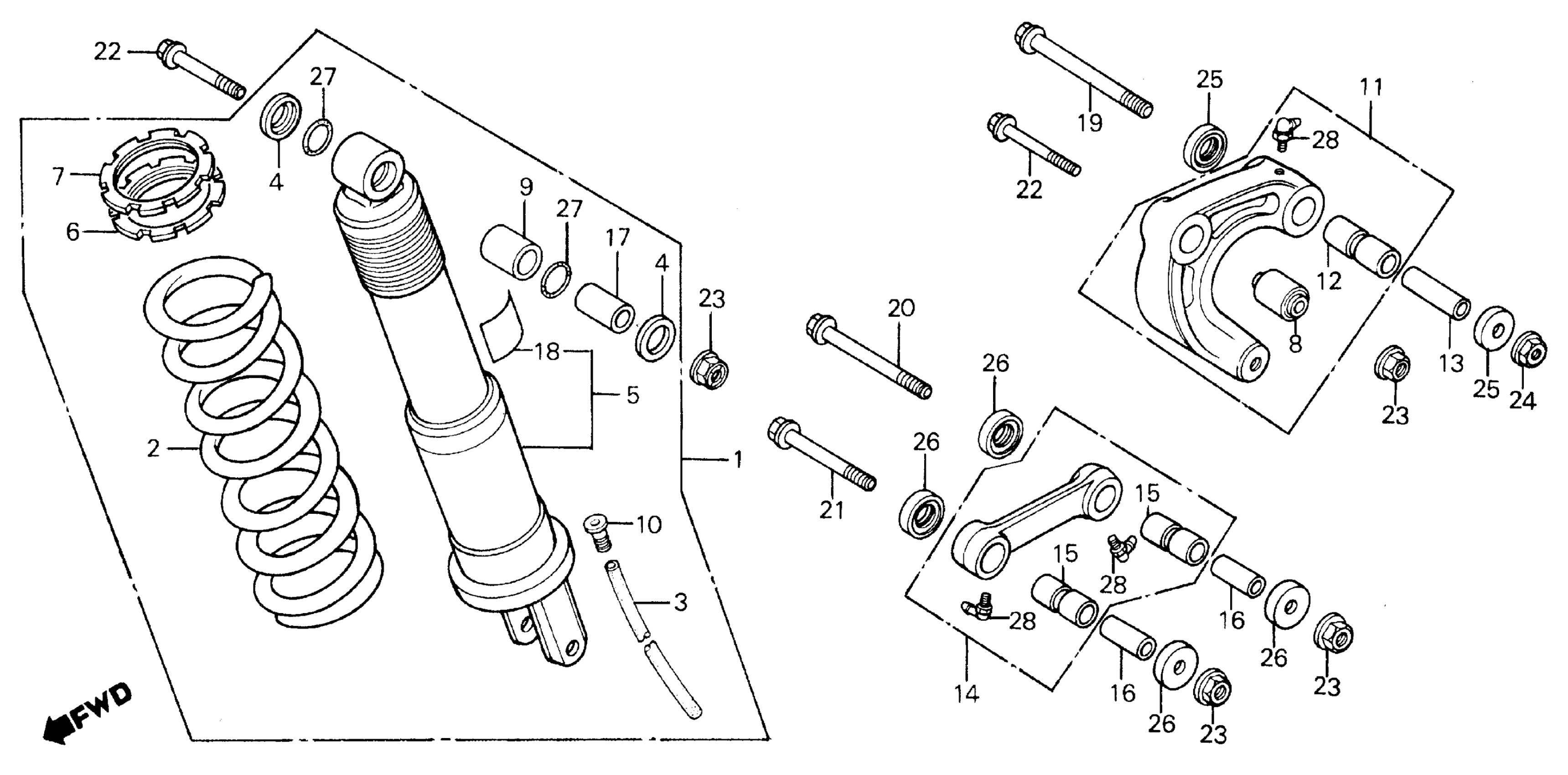

Honda XL600RA (87) MOTORCYCLE, JPN, VIN# JH2PD030-HK400002 SHOCK ABSORBER Diagram

#

Description
Price

1

CUSHION ASSY., RR. *R134* (FIGHTING RED) This part replaces 52400-ML6-771ZA.

52400-ML6-771ZB

Unavailable

1

CUSHION ASSY., RR. *R134* (FIGHTING RED)

52400-ML6-771ZB

Unavailable

2

SPRING, RR. SHOCK ABSORBER *B106* (CAPRI BLUE)

52401-MG2-003ZC

Unavailable

3

PIPE, DRAIN (NOT AVAILABLE)

52405-KB7-003

Unavailable

4

CAP, DUST SEAL

52406-KB7-003

$6.48

5

DAMPER, RR.

52410-ML6-771

Unavailable

6

ADJUSTER, SPRING

52422-MA0-003

$39.25

7

NUT, ADJUSTER

52423-MA0-003

Unavailable

8

BUSH, SHOCK ABSORBER (LOWER)

52451-MA0-000

$15.12

9

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

10

JOINT, PIPE

52456-KB7-003

Unavailable

11

ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)

52460-KF0-010

Unavailable

12

BUSH, CUSHION ARM

52462-KF0-003

Unavailable

13

COLLAR, CUSHION ARM PIVOT

52463-KF0-000

Unavailable

14

ROD ASSY., RUBBER CONNECTING

52470-KF0-010

Unavailable

15

BUSH, RUBBER CONNECTING ROD

52472-MA0-013

$29.48

16

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

16

COLLAR, CONNECTING ROD PIVOT

52473-MA0-020

$16.68

17

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

18

LABEL, RR. DAMPER This part replaces 87516-KY7-911.

87516-MBL-610

$4.31

18

LABEL, RR. DAMPER This part replaces 87516-ML6-771.

87516-MBL-610

$4.31

19

BOLT, FLANGE (12X90)

90128-KF0-000

Unavailable

20

BOLT, FLANGE (10X77)

90129-KF0-000

$14.86

21

BOLT, FLANGE (10X65)

90151-MG3-000

$12.61

22

BOLT, FLANGE (10X55)

90153-KF0-000

$9.92

23

NUT, U (10MM)

90304-GE8-003

$3.67

24

NUT, FLANGE (12MM)

90306-KF0-003

$3.85

25

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-711.

91262-KR8-750

Unavailable

25

SEAL, CUSHION ARM PIVOT (ARAI) This part replaces 91261-KA3-712.

91262-KR8-750

Unavailable

26

SEAL, RUBBER CONNECTING ROD PIVOT (ARAI) This part replaces 91262-KA3-711.

91262-KA3-712

$11.62

26

SEAL, RUBBER CONNECTING ROD PIVOT (ARAI)

91262-KA3-712

$11.62

27

DUST SEAL B

91351-KB7-003

$3.49

28

FITTING, GREASE (B.76S)

96201-80000

$2.56
