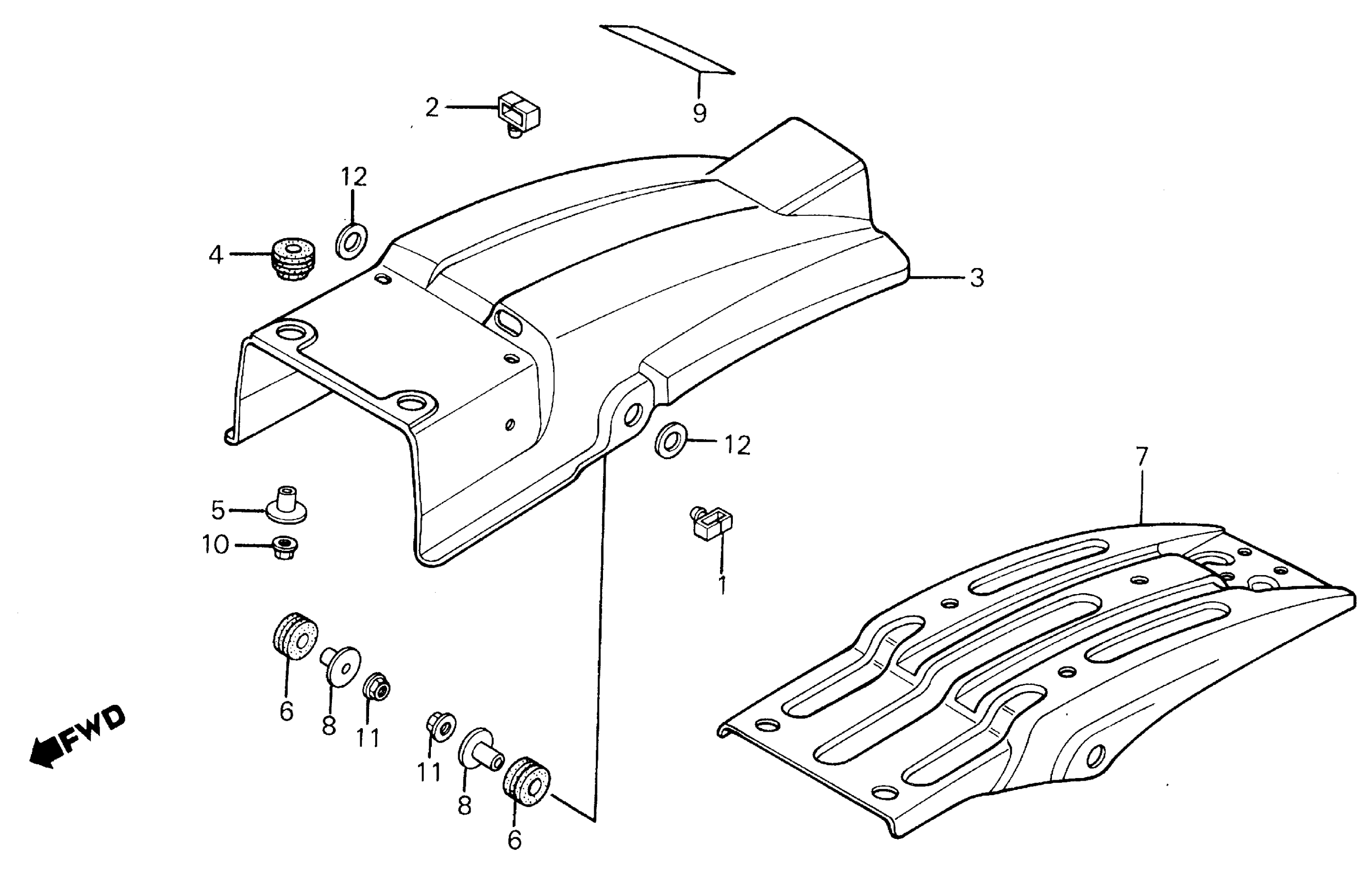

Honda XL600RA (87) MOTORCYCLE, JPN, VIN# JH2PD030-HK400002 REAR FENDER Diagram

#

Description
Price

1

GROMMET, CABLE (NOT AVAILABLE)

32985-MG2-000

Unavailable

2

GROMMET, CABLE

32985-300-000

$3.12

3

FENDER, RR. *NH138* (SHASTA WHITE) (NOT AVAILABLE)

80100-MG2-670ZD

Unavailable

4

RUBBER, RR. FENDER

80101-MG2-000

Unavailable

5

COLLAR, SEAT SETTING (NOT AVAILABLE)

80102-MG2-000

Unavailable

6

RUBBER, RR. FENDER

80103-MG2-000

$2.83

7

PATCH, RR. FENDER (NOT AVAILABLE)

80110-KG0-010

Unavailable

8

COLLAR (8X12)

80101-KB7-600

$5.50

9

MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-435-770

Unavailable

10

NUT, U (6MM)

90301-473-003

$3.79

11

NUT, FLANGE (8MM)

90309-428-731

$3.12

11

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12
