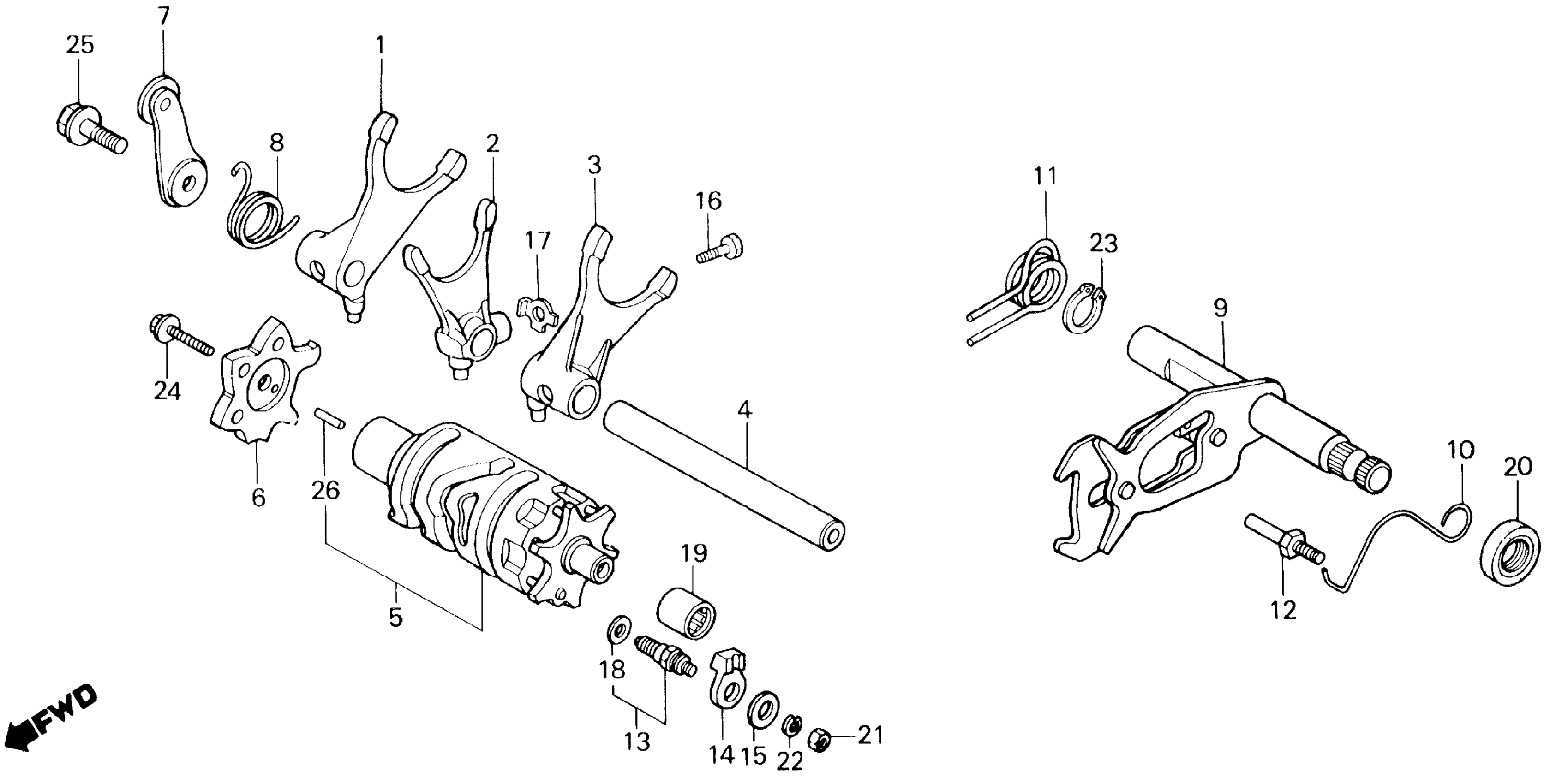

Honda XL600RA (87) MOTORCYCLE, JPN, VIN# JH2PD030-HK400002 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MG3-000

$112.49

2

FORK, CENTER GEARSHIFT

24212-MG3-000

$112.46

3

FORK, L. GEARSHIFT

24213-MK2-680

$87.60

4

SHAFT, GEARSHIFT FORK GUIDE

24241-MK2-000

$24.40

5

DRUM, GEARSHIFT

24300-MG2-000

$166.59

6

CAM, GEARSHIFT

24411-MG3-020

$17.21

7

STOPPER, GEARSHIFT DRUM

24430-MG3-000

$20.53

8

SPRING, SHIFT DRUM STOPPER

24435-MG3-010

$5.06

9

SPINDLE, GEARSHIFT This part replaces 24610-MK5-000.

24610-MK5-010

$97.53

9

SPINDLE, GEARSHIFT

24610-MK5-010

$97.53

10

SPRING, GEARSHIFT RESET This part replaces 24624-KA4-000.

24624-MT3-000

$3.56

10

SPRING, GEARSHIFT RESET

24624-MT3-000

$3.56

11

SPRING, GEARSHIFT RETURN

24651-KF0-013

$8.09

12

PIN, SHIFT RETURN SPRING

24652-028-000

$8.99

13

SWITCH ASSY., NEUTRAL (TOYO)

35600-413-023

$19.10

14

GUIDE, NEUTRAL SWITCH

35601-KG0-000

$11.38

15

WASHER C, PARKING BRAKE

47134-567-000

$2.32

16

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.54

17

WASHER, LOCK

90407-MB0-000

$2.46

17

WASHER, LOCK | Use up to Engine SN 5403053 This part replaces 90407-MG3-000.

90407-MB0-000

$2.46

18

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.24

19

BEARING, NEEDLE (12X16X10) This part replaces 91053-719-005.

91101-PZ9-000

$7.99

19

BEARING, NEEDLE (12X16X10)

91101-PZ9-000

$7.99

20

OIL SEAL (14X28X7) (ARAI)

91202-965-003

$6.12

21

NUT, HEX. (4MM)

94001-04080-0S

$1.03

22

WASHER, SPRING (4MM)

94111-04800

$0.91

23

CIRCLIP (OUTER) (14MM)

94510-14000

Unavailable

24

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.78

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.78

25

BOLT, FLANGE (8X20)

95701-08020-00

$1.87

25

BOLT, FLANGE (8X20) This part replaces 95800-08020-00.

95701-08020-00

$1.87

25

BOLT, FLANGE (8X20) This part replaces 95801-08020-00.

95701-08020-00

$1.87

26

ROLLER (3X8.5)

96220-30085

$0.49
