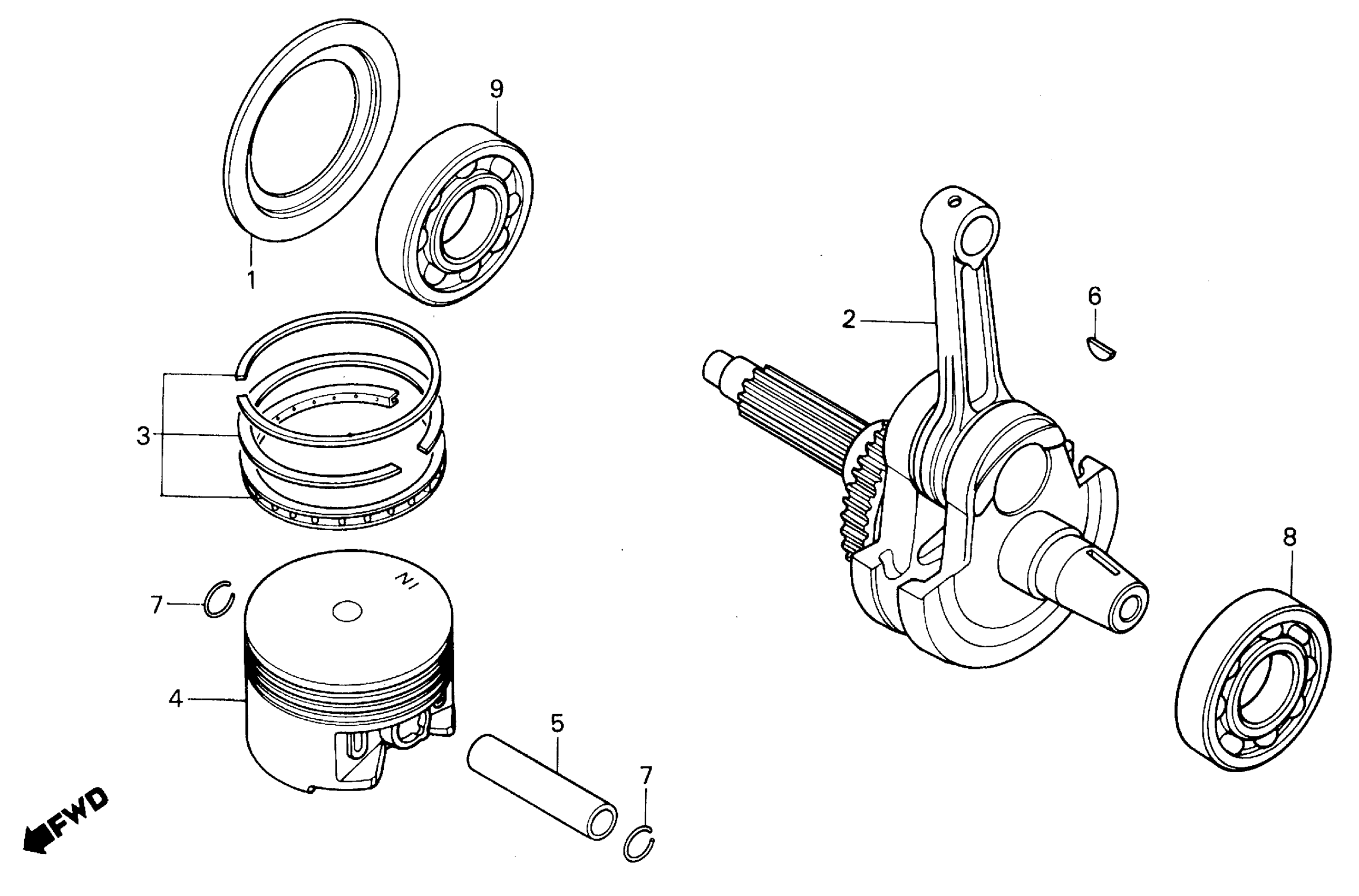

Honda XL600RA (87) MOTORCYCLE, JPN, VIN# JH2PD030-HK400002 CRANKSHAFT Diagram

PLATE, MAIN BEARING

11215-MG2-000

Unavailable

CRANKSHAFT This part replaces 13000-MG2-791.

13000-MG2-792

Unavailable

CRANKSHAFT

13000-MG2-792

Unavailable

RING SET, PISTON (STD)

13011-MN9-305

Unavailable

RING SET, PISTON (OS 0.25)

13012-MN9-305

Unavailable

RING SET, PISTON (OS 0.50)

13013-MN9-305

Unavailable

RING SET, PISTON (STD) This part replaces 131A1-MG2-003.

13011-MN9-305

Unavailable

RING SET, PISTON (OS 0.25) This part replaces 131A2-MG2-003.

13012-MN9-305

Unavailable

RING SET, PISTON (OS 0.50) This part replaces 131A3-MG2-003.

13013-MN9-305

Unavailable

PISTON (STD)

13101-MG2-790

Unavailable

PISTON (OS 0.25)

13102-MG2-306

Unavailable

PISTON (OS 0.50)

13103-MG2-306

Unavailable

PIN, PISTON

13111-MG2-000

Unavailable

KEY, SPECIAL WOODRUFF (25X18)

13331-357-000

$3.60

CLIP, PISTON PIN

90602-MG2-000

$1.75

BEARING, RADIAL BALL (6308) This part replaces 91001-MG2-008.

91001-MN1-671

$55.64

BEARING, RADIAL BALL (6308)

91001-MN1-671

$55.64

BEARING, RADIAL BALL (6307)

91001-MK2-003

$92.86
