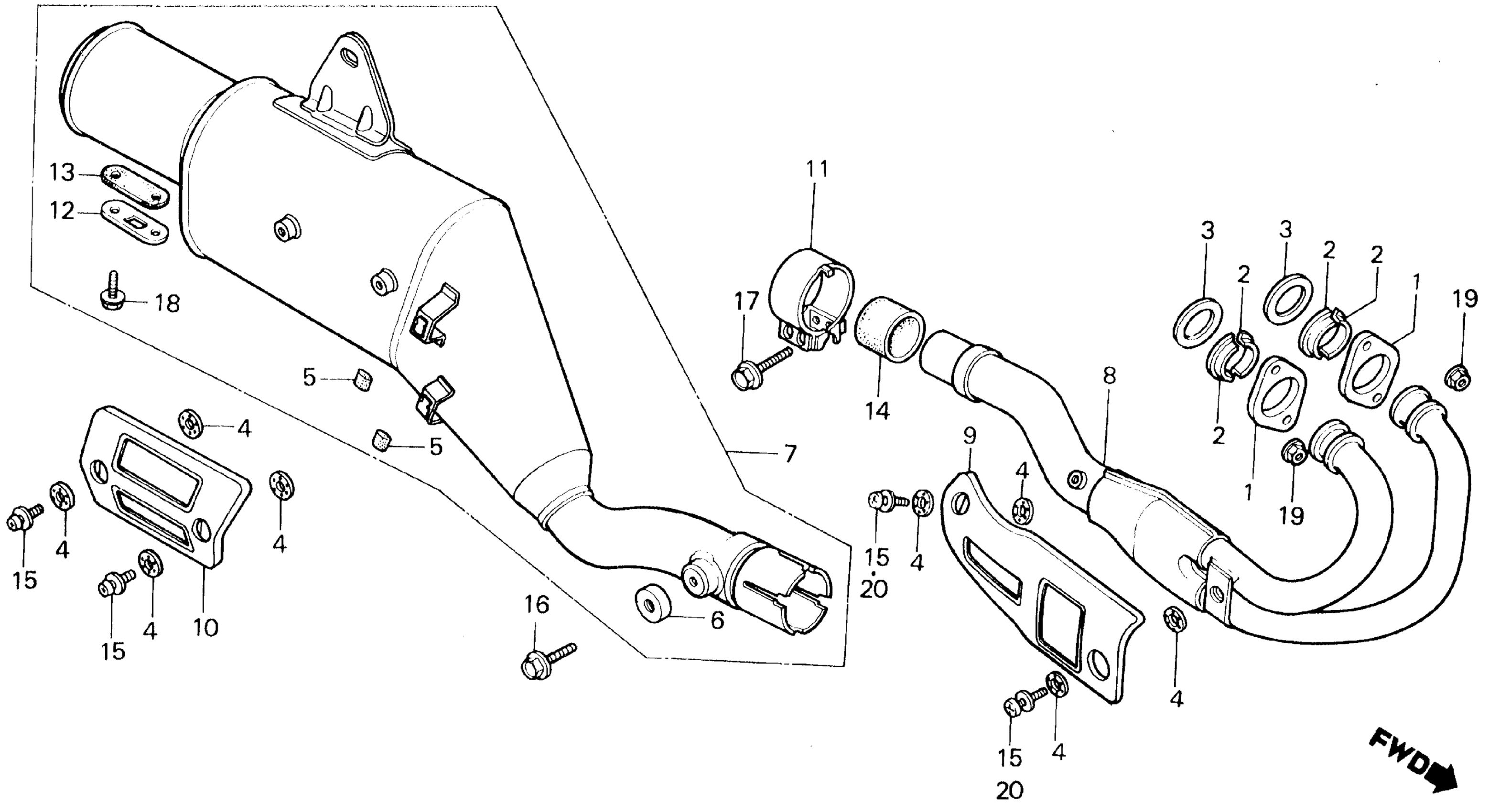

Honda XL600RA (86) MOTORCYCLE, JPN, VIN# JH2PD030-GK300002 TO JH2PD030-GK303182 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MG3-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-435-000

$8.52

3

GASKET, EX. PIPE

18291-MN5-650

$3.77

3

GASKET, EX. PIPE This part replaces 18291-216-000.

18291-MN5-650

$3.77

4

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

4

GASKET, PROTECTOR

18292-MM9-740

$3.03

4

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

5

RUBBER, SIDE COVER (PD)

83512-KA4-700

$4.57

6

GASKET B, MUFFLER This part replaces 18295-KS3-920.

18295-KV6-920

Unavailable

6

GASKET B, MUFFLER This part replaces 18295-KZ1-670.

18295-KV6-920

Unavailable

6

GASKET B, MUFFLER This part replaces 18295-429-000.

18295-KV6-920

Unavailable

7

MUFFLER, EX. This part replaces 18310-MG2-670.

18310-MG2-671

Unavailable

7

MUFFLER, EX.

18310-MG2-671

Unavailable

8

PIPE, EX. (NOT AVAILABLE)

18320-MG2-000

Unavailable

9

PROTECTOR, EX. PIPE

18325-MG3-000

Unavailable

10

PROTECTOR, MUFFLER

18355-MG2-000

Unavailable

11

BAND, MUFFLER This part replaces 18371-MA0-770.

18376-KV0-000

Unavailable

11

BAND, MUFFLER

18376-KV0-000

Unavailable

12

LID, MUFFLER

18373-429-010

$9.15

13

GASKET, MUFFLER LID

18374-MN1-880

$4.21

13

GASKET, MUFFLER LID This part replaces 18374-429-000.

18374-MN1-880

$4.21

14

GASKET, MUFFLER This part replaces 18391-429-000.

18391-429-010

$15.22

14

GASKET, MUFFLER

18391-429-010

$15.22

15

SCREW-WASHER (6X12)

90136-MC7-000

$4.66

16

BOLT, FLANGE (8X16) This part replaces 90213-KF0-000.

96300-08016-00

$1.49

16

BOLT, FLANGE (8X16)

96300-08016-00

$1.49

17

BOLT, FLANGE (8X32) | Use up to Frame SN GK300011

90216-KF0-000

Unavailable

17

BOLT, FLANGE (8X40) | Use from Frame SN GK300012

95701-08040-08

$2.28

17

BOLT, FLANGE (8X40) | Use from Frame SN GK300012 This part replaces 96300-08040-08.

95701-08040-08

$2.28

18

BOLT-WASHER (6X12)

93401-06012-07

$1.62

18

BOLT-WASHER (6X12) This part replaces 93411-06012-07.

93401-06012-07

$1.62

18

BOLT-WASHER (6X12) This part replaces 93481-06012-07.

93401-06012-07

$1.62

19

NUT, CAP (8MM)

90304-ME1-670

$5.94

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-02.

95701-06012-02

$2.00

20

BOLT, FLANGE (6X12)

95701-06012-02

$2.00
