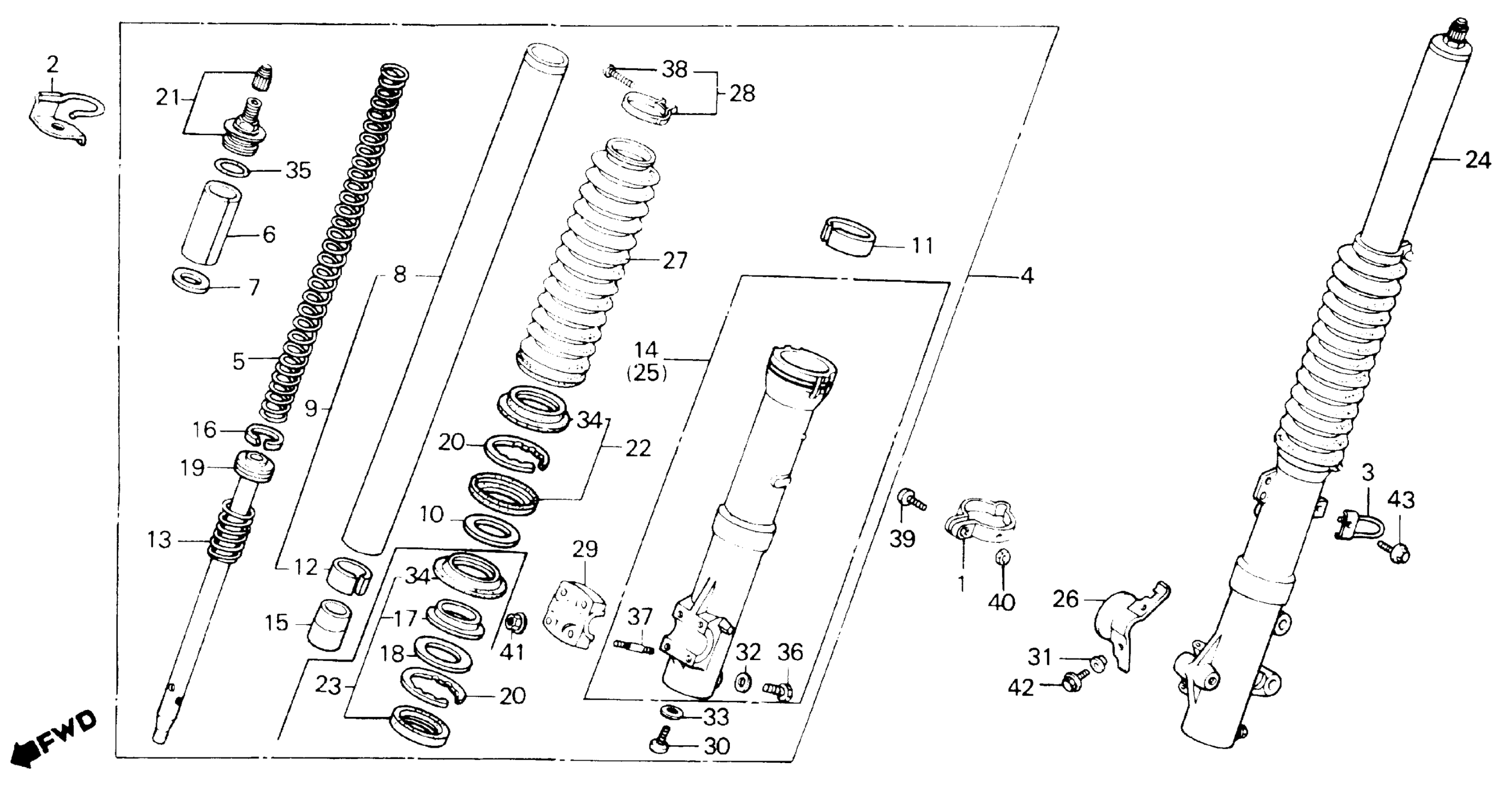

Honda XL600RA (86) MOTORCYCLE, JPN, VIN# JH2PD030-GK300002 TO JH2PD030-GK303182 FRONT FORK Diagram

#

Description
Price

1

CLAMP, SPEEDOMETER CABLE

44832-MG2-000

$8.59

2

CLIP, BRAKE HOSE (UPPER) (NOT AVAILABLE)

45461-MG2-000

Unavailable

3

CLIP, BRAKE HOSE (LOWER) (NOT AVAILABLE)

45463-MG2-000

Unavailable

4

FORK ASSY., R. FR. *YR112MU/PB5L* (GOLD/BLUE)

51400-ML6-671ZA

Unavailable

5

SPRING, FR. FORK (NOT AVAILABLE)

51401-MG2-003

Unavailable

6

COLLAR, SPRING

51402-MG2-003

Unavailable

7

PLATE, SPRING JOINT

51403-ME5-003

Unavailable

8

PIPE, FR. FORK

51410-MG2-003

Unavailable

10

RING, BACK-UP

51412-463-003

$7.75

10

RING, BACK-UP This part replaces 51412-463-305.

51412-463-003

$7.75

13

SPRING, REBOUND (NOT AVAILABLE)

51416-MG2-003

Unavailable

14

CASE, R. (LOWER) *YR112MU* (SUPER GOLD METALLIC-U)

51420-ML6-671ZA

Unavailable

15

PIECE, OIL LOCK

51432-MG2-003

Unavailable

16

RING, PISTON (NOT AVAILABLE)

51437-MG2-003

Unavailable

19

PIPE, SEAT

51440-MG2-003

Unavailable

20

CIRCLIP (INNER)

51447-463-003

$4.53

21

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MG2-003

Unavailable

22

SEAL SET, FR. FORK

51490-MG2-872

$40.38

24

FORK ASSY., L. FR. *YR112MU/PB5L* (GOLD/BLUE)

51500-ML6-671ZA

Unavailable

25

CASE, L. (LOWER) *YR112MU* (SUPER GOLD METALLIC-U)

51520-ML6-671ZA

Unavailable

27

BOOT, FR. FORK *PB5L* (FIJI BLUE) This part replaces 51611-KL3-711ZB.

51611-KL3-712ZB

Unavailable

27

BOOT, FR. FORK *PB5L* (FIJI BLUE)

51611-KL3-712ZB

Unavailable

28

BAND, FR. FORK BOOT (NOT AVAILABLE)

51612-MG2-003

Unavailable

29

HOLDER, AXLE *YR112MU* (SUPER GOLD METALLIC-U)

51634-MK5-003ZA

Unavailable

30

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

32

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

33

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

34

DUST SEAL

91254-MG2-871

Unavailable

35

O-RING (29.2X3.5)

91356-MA3-661

$3.69

36

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

36

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

37

BOLT, STUD (6X25)

92900-06025-0E

$1.49

38

SCREW, PAN (3X20)

93500-03020-0A

$1.49

39

SCREW, PAN (5X20)

93500-05020-0A

$1.49

40

NUT, HEX. (5MM)

94001-05000-0S

$2.74

41

NUT, U (6MM)

90301-473-003

$4.07

43

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

43

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
