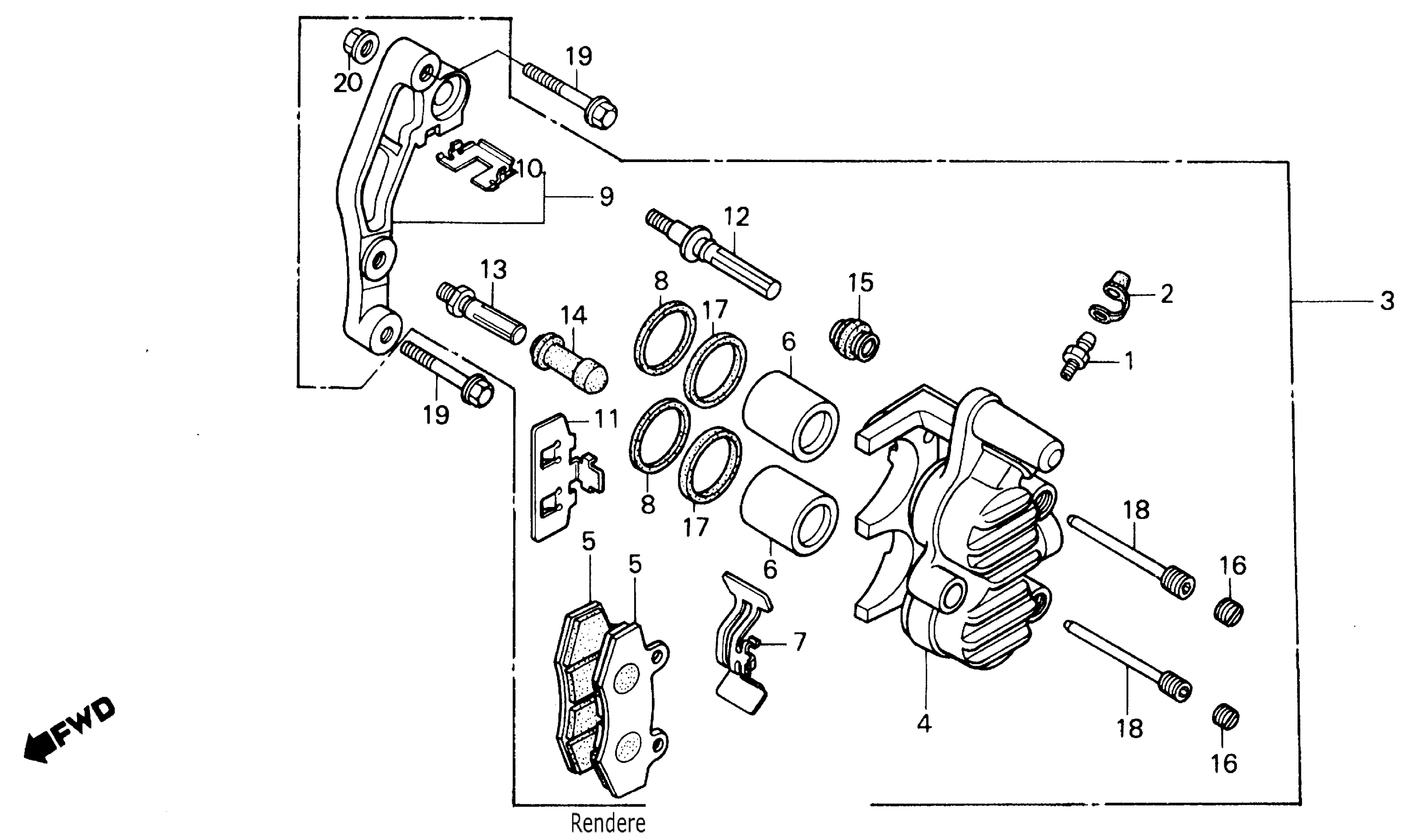

Honda XL600RA (86) MOTORCYCLE, JPN, VIN# JH2PD030-GK300002 TO JH2PD030-GK303182 FRONT BRAKE CALIPER Diagram

BRAKE PAD KIT

451A0-MG3-670

Unavailable

SCREW, BLEEDER

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

CALIPER ASSY., L. FR. (NOT AVAILABLE) This part replaces 45100-MG3-006.

45100-MG3-016

Unavailable

CALIPER, L. FR.

45101-MG3-006

Unavailable

PAD (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MG3-006

Unavailable

PISTON This part replaces 45107-MG3-006.

45107-MG3-016

$41.28

PISTON

45107-MG3-016

$41.28

SPRING, PAD

45108-GE2-006

Unavailable

DUST SEAL

45109-GE2-006

$5.31

BRACKET, L. FR.

45110-MG3-006

Unavailable

RETAINER

45112-MG3-006

$7.27

SHIM (NOT AVAILABLE)

45116-MG3-006

Unavailable

BOLT A, PIN

45131-MG3-006

Unavailable

PIN, BOLT

45131-166-016

$7.63

BUSH, PIN

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN This part replaces 45203-MG3-006.

45203-MG3-016

$5.12

PLUG, PIN

45203-MG3-016

$5.12

SEAL, PISTON

45209-GE2-006

$6.91

PIN, HANGER This part replaces 45215-GE2-006.

45215-GE2-016

$11.52

PIN, HANGER

45215-GE2-016

$11.52

BOLT, FLANGE (8X40) This part replaces 90131-MG3-000.

96400-08040-00

$2.02

NUT, FLANGE (8MM)

94050-08080

$1.49
