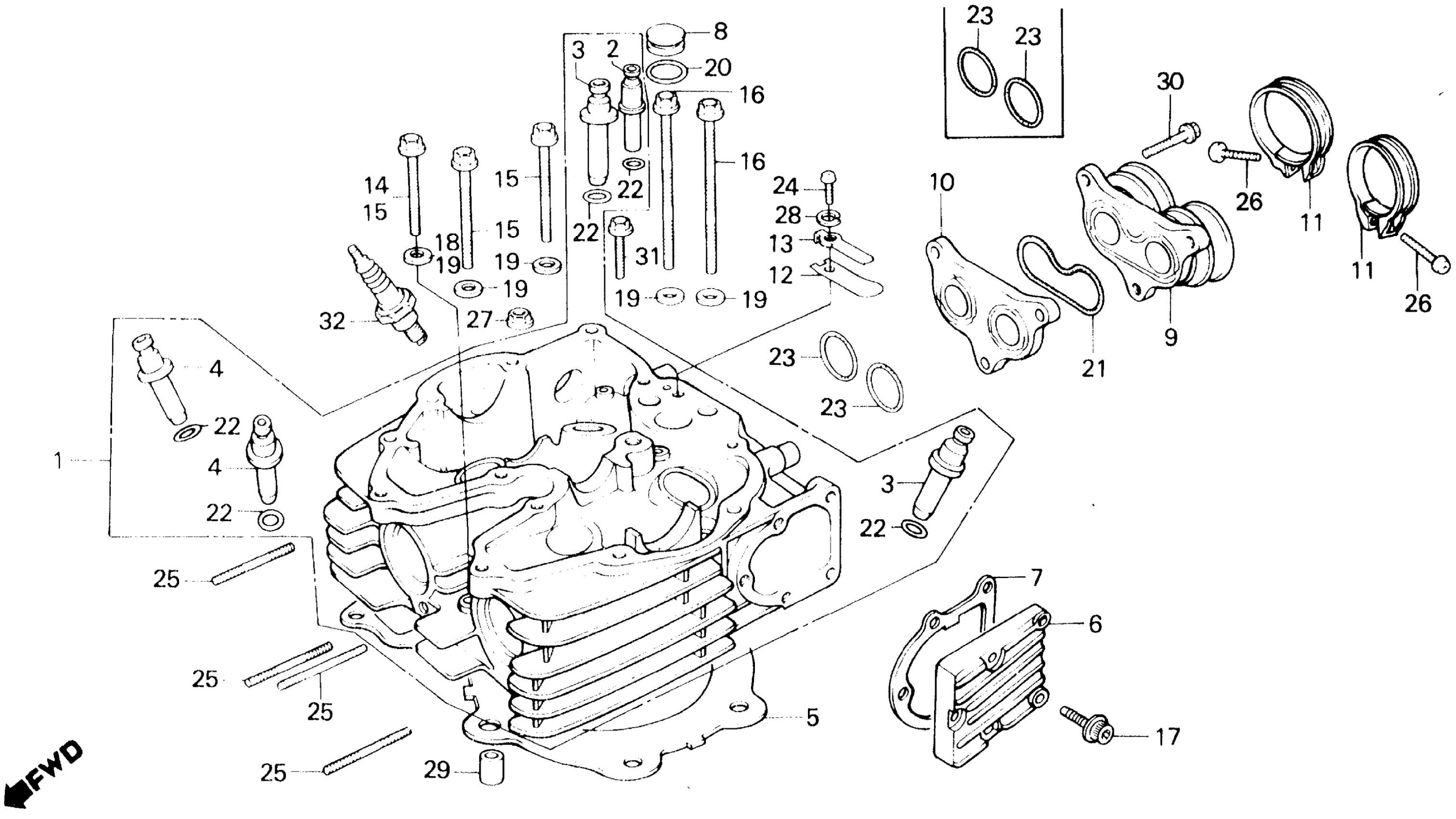

Honda XL600RA (86) MOTORCYCLE, JPN, VIN# JH2PD030-GK300002 TO JH2PD030-GK303182 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD | Use up to Engine SN 5303374 This part replaces 12200-ML6-000.

12200-ML6-315

Unavailable

1

CYLINDER HEAD This part replaces 12200-ML6-010.

12200-ML6-315

Unavailable

1

CYLINDER HEAD This part replaces 12200-ML6-305.

12200-ML6-315

Unavailable

1

CYLINDER HEAD

12200-ML6-315

Unavailable

3

GUIDE, VALVE (OS)

12231-MG2-306

$18.05

4

GUIDE, EX. VALVE (OS)

12241-MG2-306

$18.05

5

GASKET, CYLINDER HEAD This part replaces 12251-MG2-791.

12251-MG2-792

$27.28

5

GASKET, CYLINDER HEAD

12251-MG2-792

$27.28

6

COVER, DECOMPRESSION

12330-MK5-000

Unavailable

9

INSULATOR, CARBURETOR

16211-MG3-010

Unavailable

10

INSULATOR, HEAT

16215-MG2-306

Unavailable

10

INSULATOR, HEAT This part replaces 16215-MG2-881.

16215-MG2-306

Unavailable

10

INSULATOR, HEAT This part replaces 16215-MG2-882.

16215-MG2-306

Unavailable

11

BAND, INSULATOR

16223-KS5-000

$14.20

11

BAND, INSULATOR This part replaces 16223-357-010.

16223-KS5-000

$14.20

15

BOLT, FLANGE (8X70)

90082-MG3-003

$10.21

16

BOLT, FLANGE (8X100)

90083-MG3-003

$11.08

17

BOLT, FLANGE SOCKET (6X25)

90091-KF0-000

$3.71

18

WASHER, PLAIN (8MM)

90502-MK5-000

Unavailable

19

WASHER, PLAIN (8MM) | Use up to Engine SN 5302648 This part replaces 90501-MK2-000.

90501-MK4-600

$3.81

19

WASHER, PLAIN (8MM)

90501-MK4-600

$3.81

21

O-RING, SPECIAL (NOK)

91301-MG3-003

$7.08

22

O-RING (10X1.6)

91301-200-000

$3.01

23

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

23

O-RING (35.5X3) (NOK) | Use up to Engine SN 5300015 This part replaces 91301-MG2-790.

91301-428-003

$2.21

23

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

25

BOLT, STUD (8X40) This part replaces 92700-08040.

92700-08040-0B

$2.02

25

BOLT, STUD (8X40)

92700-08040-0B

$2.02

26

SCREW, PAN (5X28)

93500-05028-0G

$1.49

27

NUT, FLANGE (6MM)

94050-06080

$1.49

29

PIN A, DOWEL (10X20)

94301-10200

$2.35

30

BOLT, FLANGE (6X28) This part replaces 96000-06028-07.

96001-06028-07

$1.51

30

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

31

BOLT, FLANGE (6X32) This part replaces 96000-06032-07.

96001-06032-07

$1.54

31

BOLT, FLANGE (6X32)

96001-06032-07

$1.54

32

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

32

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

32

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62
