- XL600RA (85) MOTORCYCLE, JPN, VIN# JH2PD030-FK200003 TO JH2PD030-FK202357
A CARBURETOR 83-85

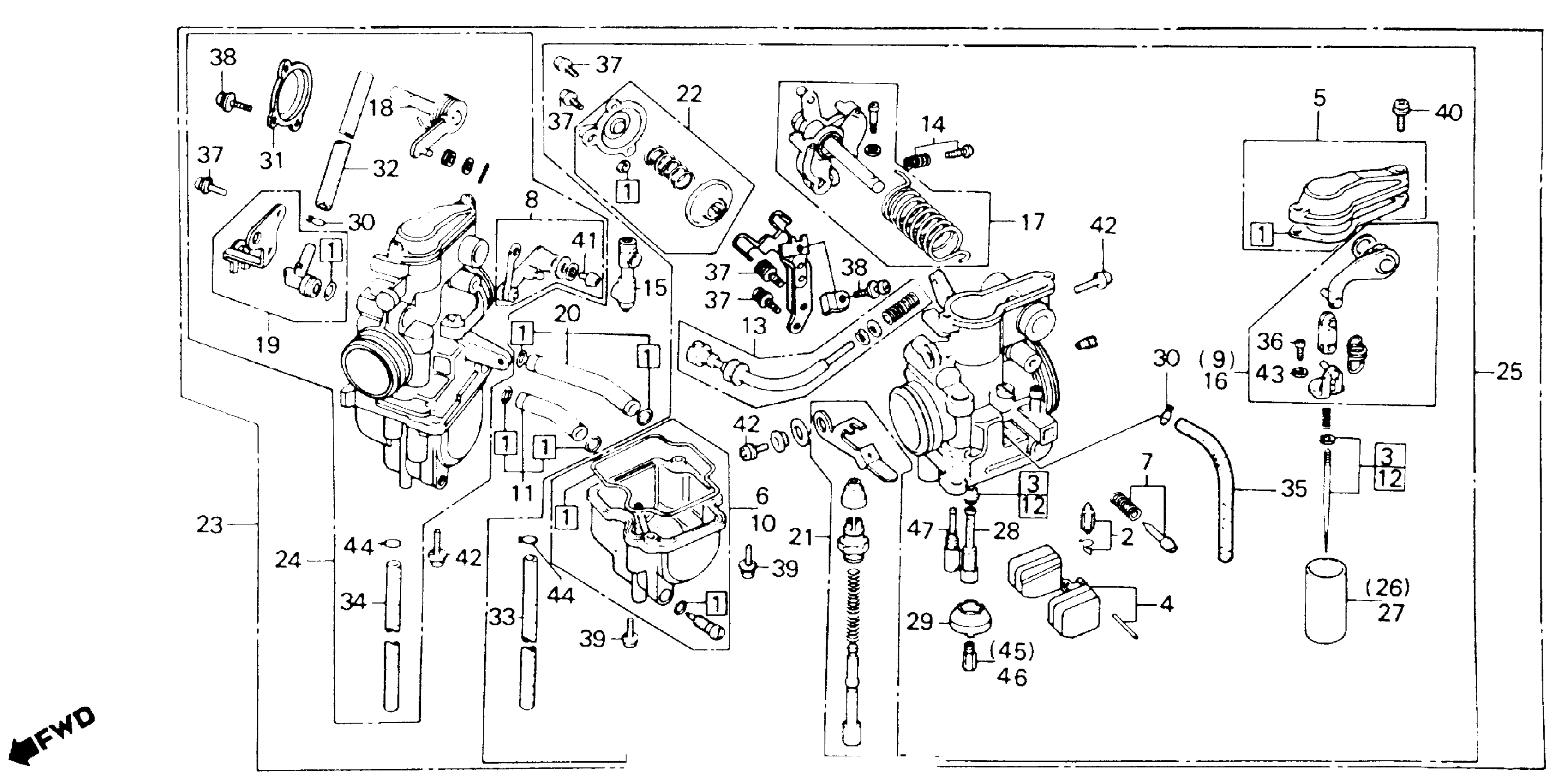

Honda XL600RA (85) MOTORCYCLE, JPN, VIN# JH2PD030-FK200003 TO JH2PD030-FK202357 A CARBURETOR 83-85 Diagram
#
3
NEEDLE SET, PRIMARY JET
16012-MG2-792
Unavailable
4
FLOAT SET This part replaces 16013-GC4-701.
16013-KG0-891
Unavailable
4
FLOAT SET
16013-KG0-891
Unavailable
5
TOP SET
16014-MG2-601
Unavailable
6
CHAMBER SET, FLOAT
16015-MG2-891
Unavailable
8
LEVER SET, LINK
16017-KF0-004
Unavailable
10
CHAMBER SET, FLOAT
16023-MG2-891
Unavailable
11
JOINT SET, FUEL
16026-KF0-004
Unavailable
12
NEEDLE SET, SECONDARY JET
16027-MG2-881
Unavailable
13
SCREW SET
16028-KF0-004
Unavailable
14
SCREW SET
16029-KG0-004
Unavailable
15
HOLDER SET, ADJ.
16030-KF0-004
Unavailable
16
ARM SET, PRIMARY LINK (NOT AVAILABLE)
16031-MG3-004
Unavailable
17
LINK SET, PRIMARY THROTTLE
16032-MG3-891
Unavailable
18
LINK SET, SECONDARY THROTTLE
16035-MG2-004
Unavailable
19
JOINT SET, FUEL
16037-MG3-004
Unavailable
21
VALVE SET, STARTER (NOT AVAILABLE)
16046-MG2-891
Unavailable
22
VALVE SET, AIR CUT This part replaces 16048-KF0-004.
16048-MG2-305
Unavailable
22
VALVE SET, AIR CUT
16048-MG2-305
Unavailable
23
CARBURETOR ASSY. | Use up to Engine SN 5208022
16100-MG2-793
Unavailable
23
CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 5208023
16100-MG2-794
Unavailable
24
CARBURETOR ASSY., R. (NOT AVAILABLE)
16101-MG2-792
Unavailable
25
CARBURETOR ASSY., L. This part replaces 16102-MG2-792.
16102-MG2-793
Unavailable
25
CARBURETOR ASSY., L.
16102-MG2-793
Unavailable
26
VALVE, PRIMARY THROTTLE This part replaces 16111-MG2-791.
16112-MG2-891
Unavailable
26
VALVE, PRIMARY THROTTLE
16112-MG2-891
Unavailable
27
VALVE, THROTTLE (A)
16112-MG3-004
Unavailable
28
HOLDER, NEEDLE JET
16165-MG2-761
Unavailable
29
HOLDER, JET
16168-KF0-004
Unavailable
30
CLIP, TUBE
16179-KE5-004
Unavailable
31
COVER, AIR CUT VALVE (NOT AVAILABLE)
16193-KB4-671
Unavailable
32
PIPE, L. AIR VENT This part replaces 16195-KF0-004.
16195-KE8-405
Unavailable
32
PIPE, L. AIR VENT This part replaces 16199-KM9-405.
16195-KE8-405
Unavailable
33
PIPE, OVERFLOW This part replaces 16198-MG3-004.
16198-ML4-405
Unavailable
33
PIPE, OVERFLOW
16198-ML4-405
Unavailable
34
TUBE, OVERFLOW (440MM)
16198-ML4-405
Unavailable
34
PIPE, OVERFLOW This part replaces 16199-KF0-004.
16198-ML4-405
Unavailable
35
TUBE, AIR VENT This part replaces 16199-MG3-771.
16199-MG3-405
Unavailable
41
SCREW-WASHER (4X20)
93892-04020-08
Unavailable
41
SCREW-WASHER (4X20) This part replaces 93892-04020-18.
93892-04020-08
Unavailable
47
JET, SLOW (#65) This part replaces 99103-MG2-0650.
99103-MG3-0650
Unavailable
47
JET, SLOW (#65)
99103-MG3-0650
Unavailable
