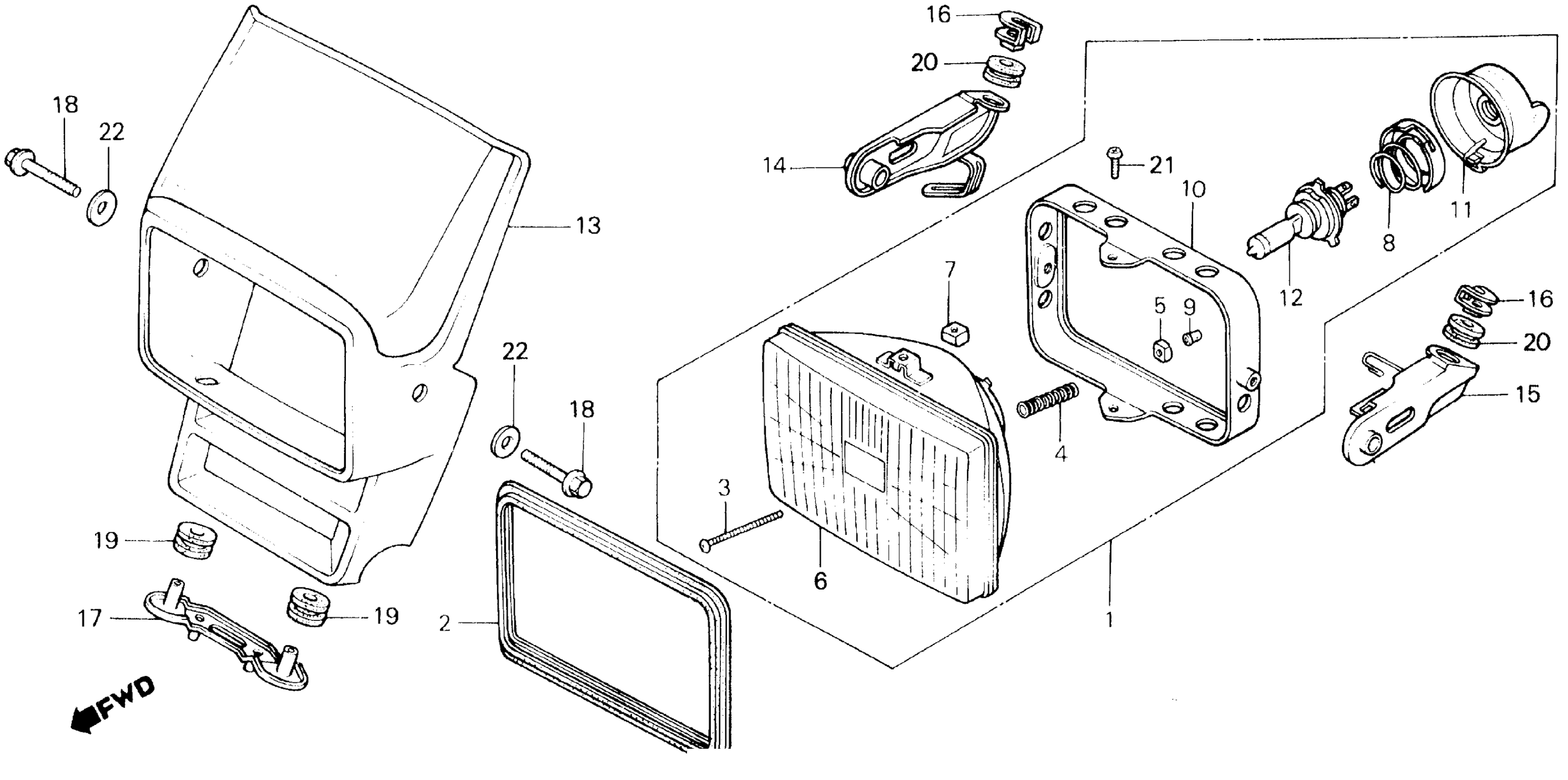

Honda XL600RA (84) MOTORCYCLE, JPN, VIN# JH2PD030-EM100006 TO JH2PD030-EM102560 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-MG2-671

Unavailable

2

GASKET, HEADLIGHT

33102-MG2-000

$29.33

3

SCREW, BEAM ADJ.

33103-MG2-671

$5.21

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-MG2-671

$2.92

5

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

6

HEADLIGHT UNIT (NOT AVAILABLE)

33120-MG2-671

Unavailable

7

NUT, UNIT HOLDER

33128-471-003

$1.62

8

HOLDER, HEADLIGHT SOCKET

33131-471-901

Unavailable

9

COVER, SCREW

33136-426-830

$1.89

10

RING, SETTING

33153-MG2-671

Unavailable

11

COVER, RUBBER This part replaces 33180-471-901.

33180-471-902

$11.93

11

COVER, RUBBER

33180-471-902

$11.93

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

12

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

13

VISOR SET, FR. *R110* (MONZA RED) (NOT AVAILABLE)

613A0-MG2-000ZA

Unavailable

14

STAY, R. HEADLIGHT (NOT AVAILABLE)

61315-MG2-000

Unavailable

15

STAY, L. HEADLIGHT

61316-MG2-000

Unavailable

16

PLATE, HEADLIGHT STAY SETTING

61317-KG0-000

Unavailable

17

STAY, FR. VISOR (LOWER)

61318-MG2-000

Unavailable

18

BOLT, FLANGE (8X25) This part replaces 90111-MG2-000.

95701-08025-02

$2.17

18

BOLT, FLANGE (8X25)

95701-08025-02

$2.17

19

RUBBER, FR. VISOR SETTING

90504-MG2-000

Unavailable

20

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

21

SCREW, PAN (5X8)

93500-05008-0H

$1.49

22

WASHER, PLAIN (8MM)

94101-08200

$1.49
