1990 Yamaha XL-V (XL540P) Windshield Diagram

← All diagrams

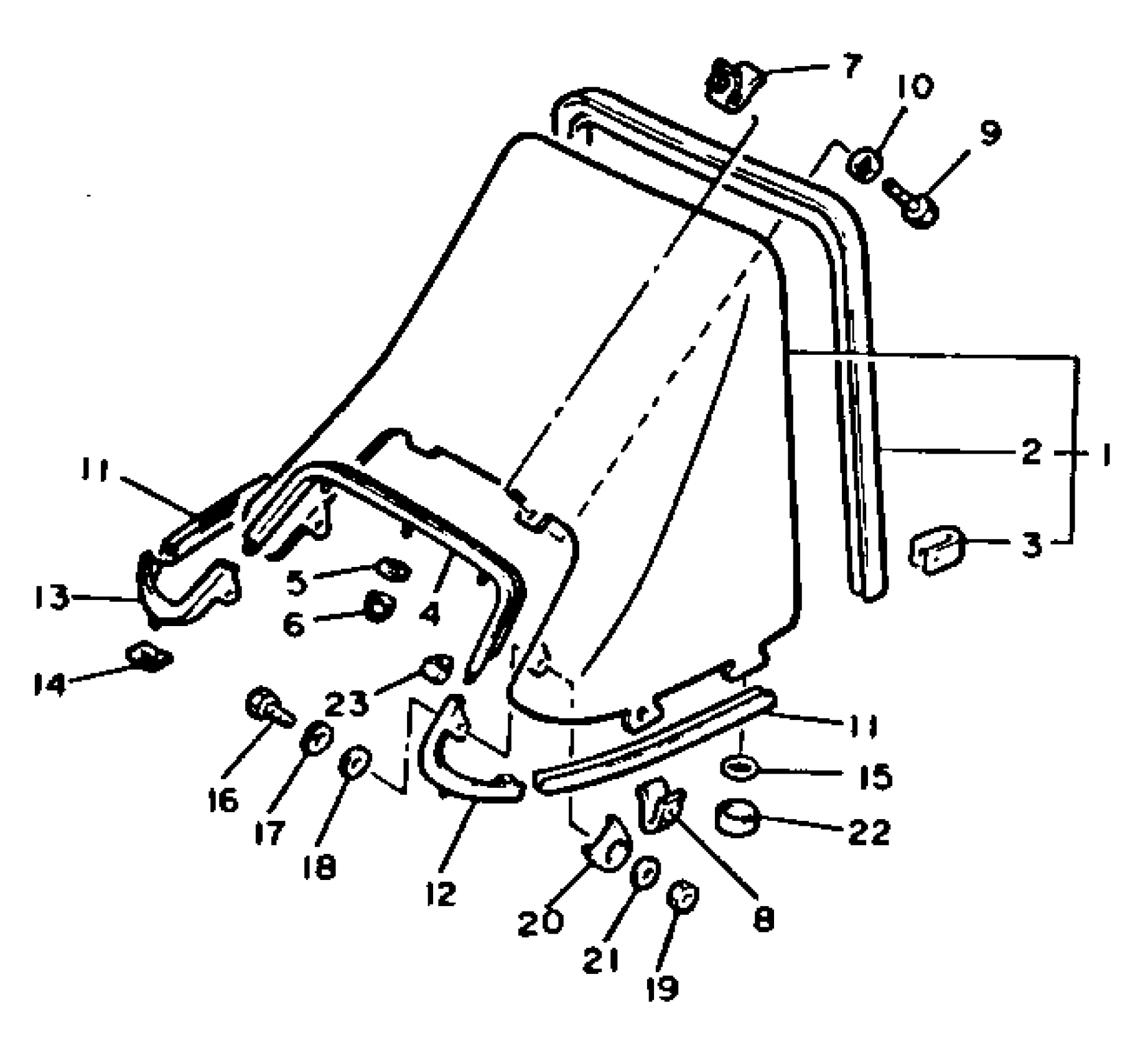

Find the part on the Windshield diagram for your 1990 Yamaha XL-V (XL540P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha XL-V (XL540P) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD,XL540

83N-77210-10-XX

1
Out of stock

2

TRIM,UPPER

87K-77213-00-00

1
Out of stock

3

. FASTENER

80V-77223-00-00

1
Out of stock

4

TRIM, LOWER

8L0-77214-00-00

1
Out of stock

5

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

6

NUT, NYLON

95701-05300-0

1
Out of stock

7

BRACKET, WNDSHLD R

8K4-77222-00-00

1
Out of stock

8

. BRACKET, WNDSHLD R

82V-77222-00-00

1
Out of stock

9

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

TRIM 3

80R-77215-00-00

1
Out of stock

12

TRIM 5

80R-77225-00-00

1
Out of stock

13

TRIM 6

80R-77226-00-00

1
Out of stock

14

NUT, SPRING(8AJ)

90183-05068-00

1

$7.46

In stock

15

FASTNER

82H-77223-00-00

1

$7.63

In stock

16

BOLT(6A1)

97095-05016-00

—

$1.46

In stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

WASHER PLATE 829771780000

90201-05033-00

—
Out of stock

19

NUT, CAP

95307-05800-00

—

$5.62

In stock

20

WASHER, SPECIAL

8L9-77116-00-00

1
Out of stock

21

WASHER, PLATE

90201-06045-00

—

$6.18

In stock

22

FASTNER

82H-77223-00-00

1

$7.63

In stock

23

CLAMP 2

8L0-77136-00-00

1
Out of stock
