Description

Price

1

TRACK ASSEMBLY

87F-47110-01-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

SHAFT 5 (80X-47487-00-00)

90891-50061-00

Unavailable

5

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

6

BEARING(8AB)

93306-00444-00

$41.99

7

CIRCLIP(5U8)

99009-42500-00

$8.49

8

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

9

PIN, COTTER

91490-30030-00

$8.49

10

SUSPENSION WHEEL COMP

885-47320-01-00

$72.99

11

BEARING(8AB)

93306-00444-00

$41.99

12

CIRCLIP(5U8)

99009-42500-00

$8.49

13

CIRCLIP(1AR)

99009-20400-00

$8.49

14

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

15

BEARING(8AB)

93306-00444-00

$41.99

16

CIRCLIP(5U8)

99009-42500-00

$8.49

17

CIRCLIP(1AR)

99009-20400-00

$8.49

18

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

19

COLLAR

90387-202H9-00

Unavailable

20

COLLAR

90387-20022-00

Unavailable

21

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

22

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

23

CIRCLIP(48Y)

99009-47500-00

Unavailable

24

NUT, SELF-LOCKING (8BF)

95607-14200-00

$12.49

25

PIN, COTTER

91490-30030-00

$8.49

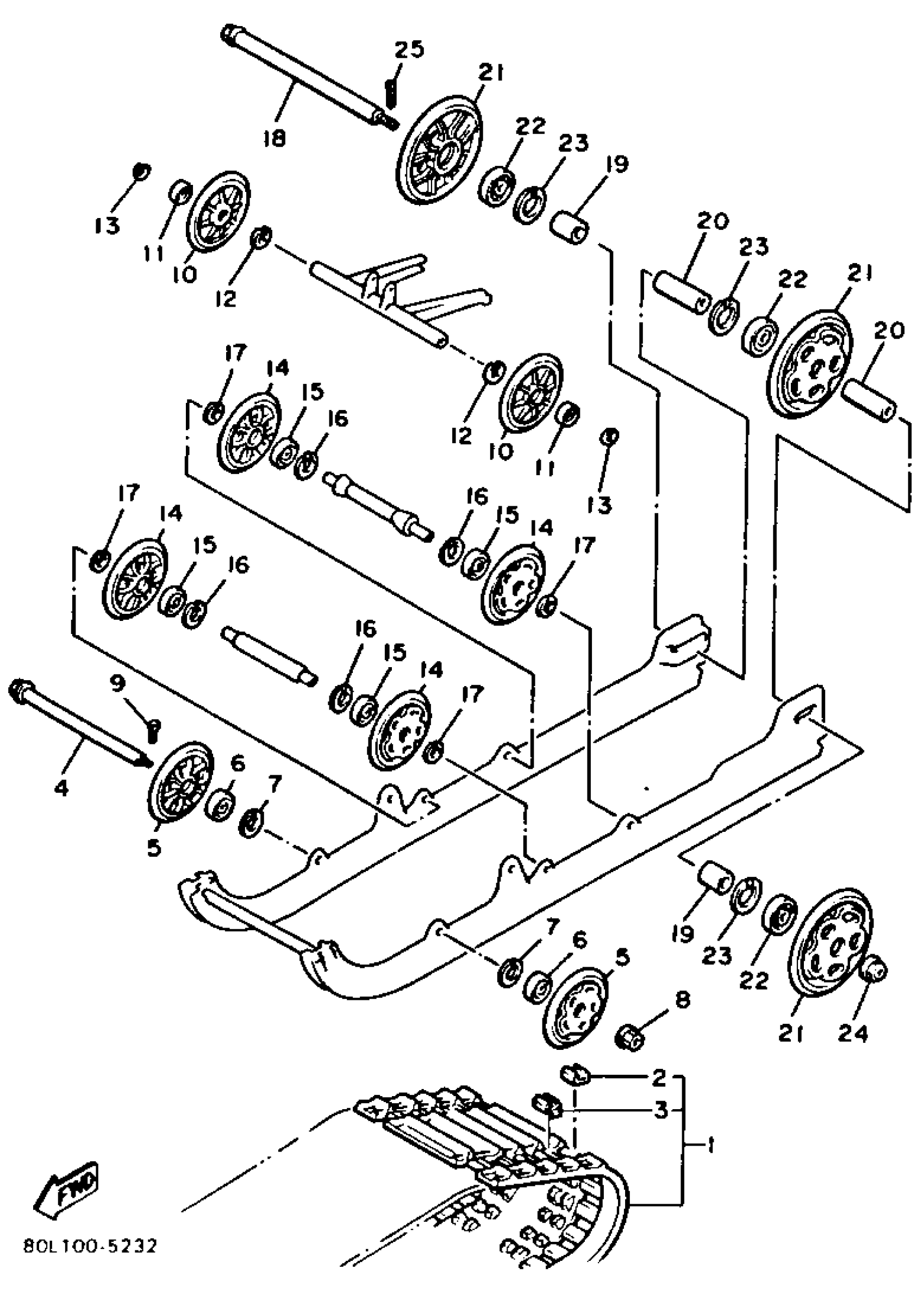

Yamaha XL540P (XL-V) 1990 TRACK SUSPENSION 1 Diagram

TRACK ASSEMBLY

PLATE, REINFORCEMENT

METAL, SLIDE

SHAFT 5 (80X-47487-00-00)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

NUT, SELF-LOCKING (8BF)

PIN, COTTER

SUSPENSION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

SUSPENTION WHEEL COMP

BEARING(8AB)

CIRCLIP(5U8)

CIRCLIP(1AR)

REAR AXLE COMP.

COLLAR

COLLAR

GUIDE WHEEL COMP.

BRG,R-B 62042RS 47MM 110G KY

CIRCLIP(48Y)

NUT, SELF-LOCKING (8BF)

PIN, COTTER
