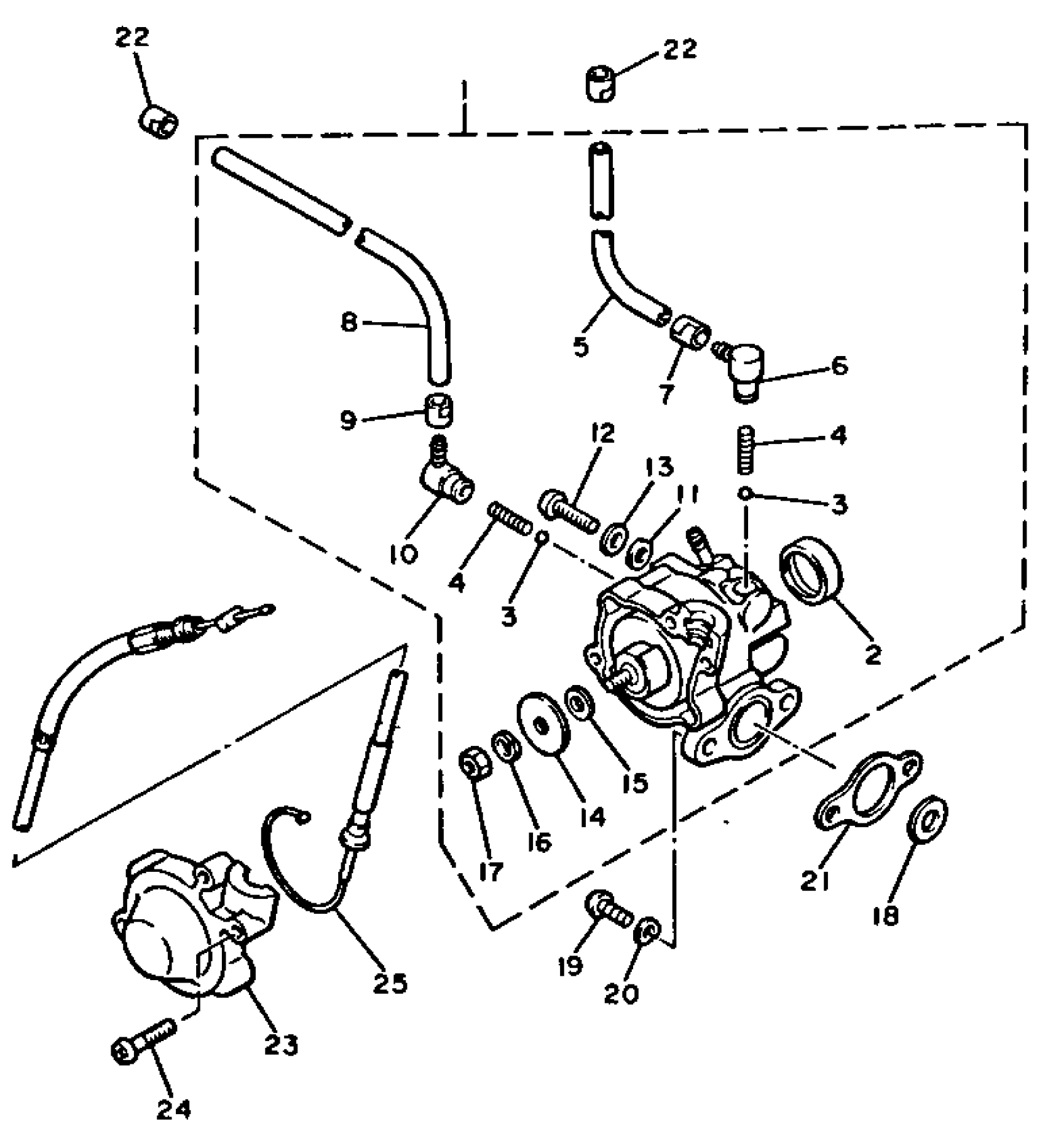

Yamaha XL540P (XL-V) 1990 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSEMBLY

8V8-13101-00-00

Unavailable

2

. PLUG

90338-21100-00

Unavailable

3

BALL

93505-32002-00

$2.92

4

SPRING (278-13169-00)

90501-02018-00

$9.49

5

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

6

NOZZLE

353-13552-01-00

$9.99

7

CLIP (2A6)

90468-02025-00

$9.49

8

TUBE, FLEXIBLE VINYL(8AV)

91A30-03039-00

$10.49

9

CLIP (2A6)

90468-02025-00

$9.49

10

NOZZLE

353-13552-01-00

$9.99

11

GASKET 137131870000

90430-04004-00

$9.49

12

SCREW, BINDING

98907-04020-00

Unavailable

13

WASHER, PLAIN (646)

92990-04600-00

$5.99

14

PLATE, ADJUSTING

137-13138-01-00

Unavailable

15

SHIM,PLUNGER

137-13137-00-03

$5.49

15

SHIM,PLUNGER

137-13137-00-05

Unavailable

15

SHIM,PLUNGER

137-13137-00-10

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

NUT, HEXAGON (663)

95380-05600-00

Unavailable

18

WASHER, PLATE (1E7)

90201-08624-00

Unavailable

19

SCREW, PAN HEAD(JJ6)

98507-05016-00

Unavailable

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

GASKET, PUMP CASE

126-13116-01-00

Unavailable

22

CLIP (2A6)

90468-02025-00

$9.49

23

COVER, ADJUST PULLEY

8A5-13146-01-00

Unavailable

24

SCREW, PAN HEAD

98507-04018-00

Unavailable

25

PUMP CABLE ASSY

8L8-26320-05-00

Unavailable
