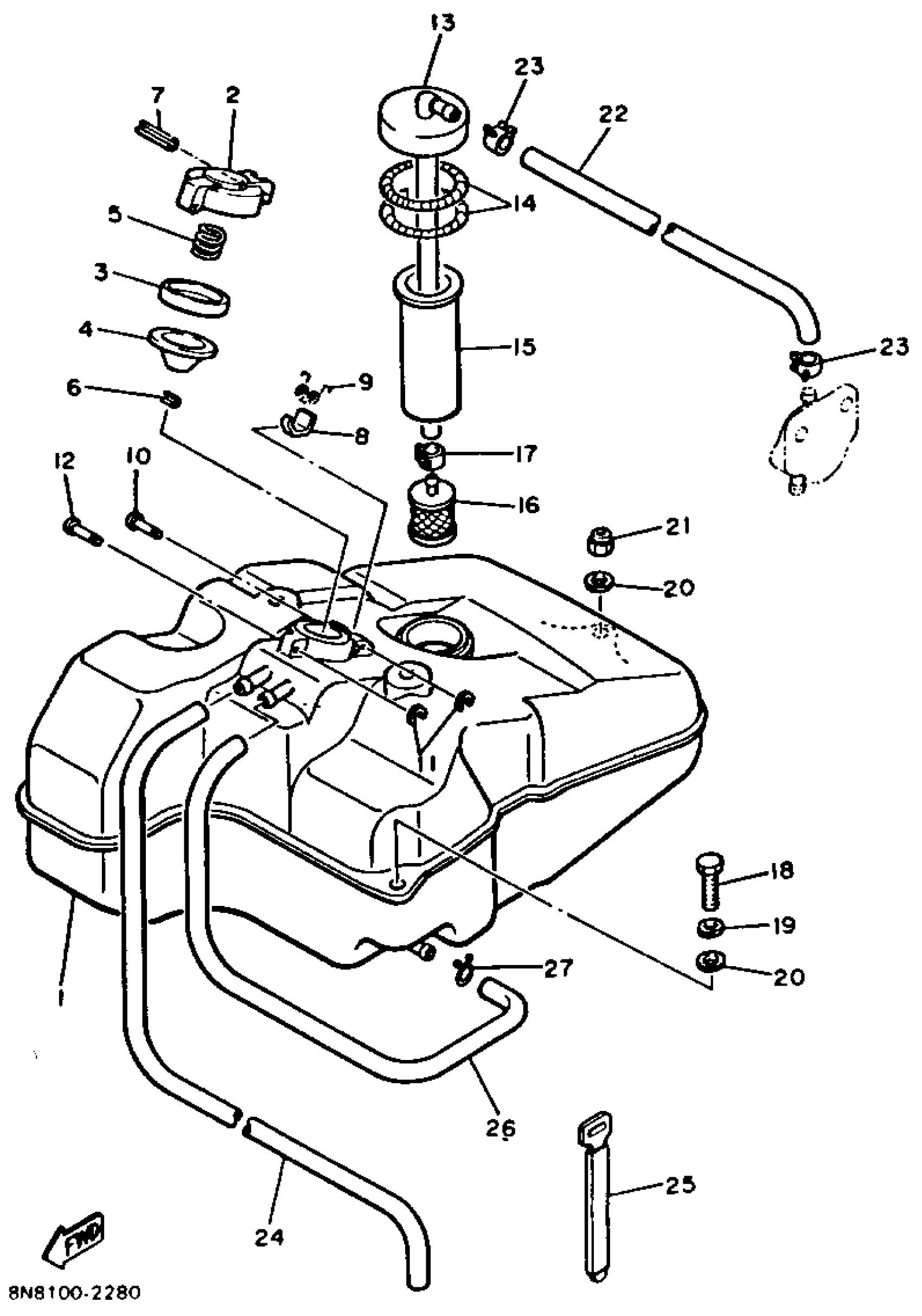

Yamaha XL540P (XL-V) 1990 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK (8K4-24111-01)

86P-24111-01-00

Unavailable

2

BODY, CAP

8A5-24611-00-00

Unavailable

3

DISK,CAP

813-24613-01-00

$20.99

4

GASKET, CAP 1

89A-24641-00-00

$10.99

5

SPRING, CAP

90501-20130-00

$8.49

6

PIN, SPRING

91690-30016-00

Unavailable

7

PIN, SPRING

91609-25032-00

$2.49

8

HOOK

83M-24628-00-00

$24.99

9

SPRING, TORSION(81E)

90508-10715-00

Unavailable

10

PIN (813)

90249-03017-00

$7.49

11

CIRCLIP (604)

93430-02001-00

$8.49

12

PIN, SPEC''L SHAPE

90249-03016-00

Unavailable

13

PIPE, SUCTION 1

83R-24335-00-00

$28.99

14

SPRING, TENSION (8R4)

90506-06261-00

$9.49

15

PIPE, SUCTION 2

8K4-24336-00-00

Unavailable

16

FILTER ASSY

8H5-24560-00-00

Unavailable

17

CLIP

90467-11028-00

Unavailable

18

BOLT, HEXAGON

97017-08025-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

WASHER, PLATE (8L8)

90201-087A9-00

Unavailable

21

NUT, NYLON

95717-08300-00

Unavailable

22

TUBE, FLEXIBLE VINYL(86X)

91A20-07100-00

Unavailable

23

CLIP

90467-11028-00

Unavailable

24

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

25

BAND

341-26397-01-00

Unavailable

26

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

Unavailable

27

CLIP (8A1)

90467-09026-00

Unavailable
