AIR CLEANER

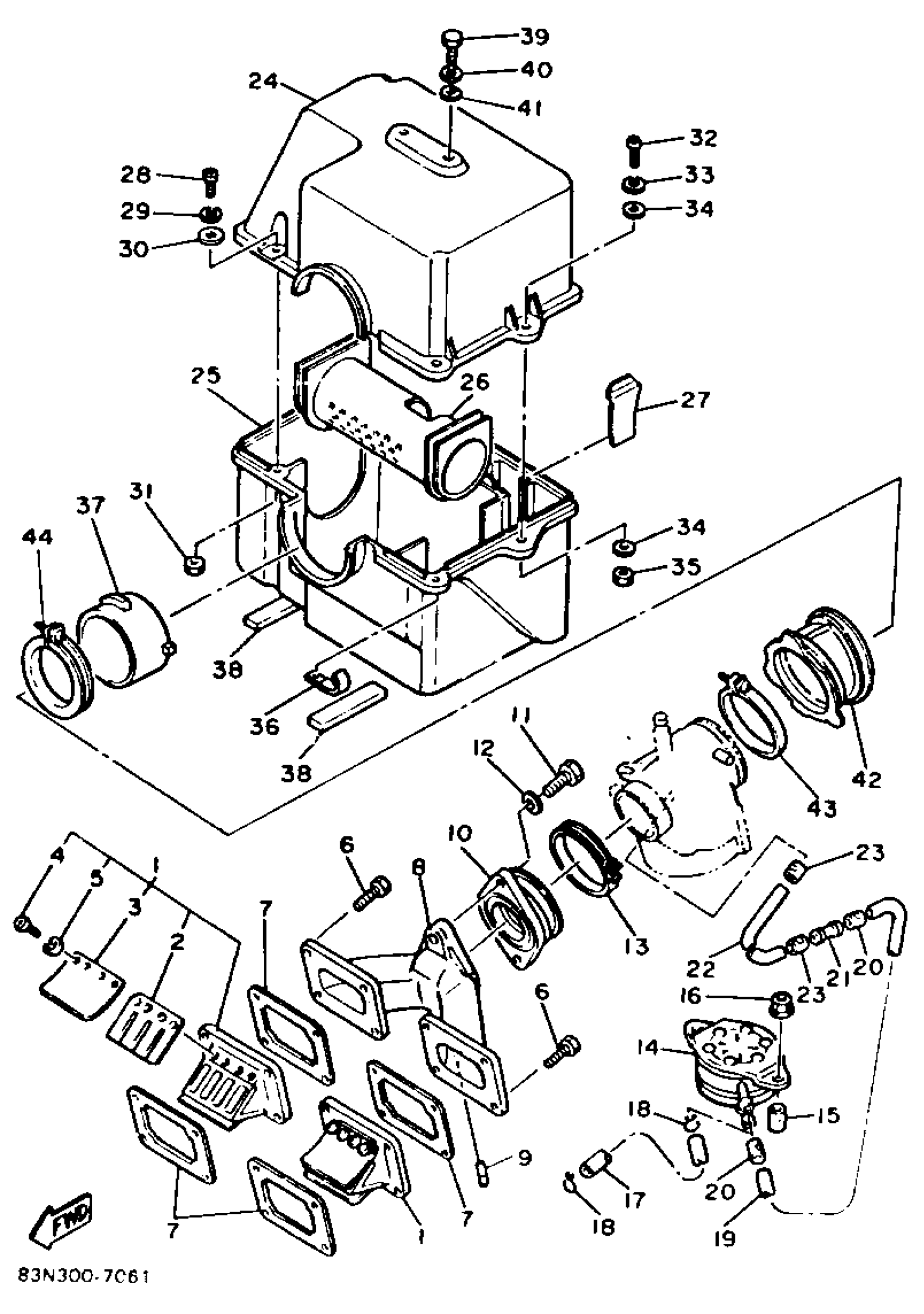

Yamaha XL540P (XL-V) 1990 AIR CLEANER Diagram
#
1
REED VALVE ASSY
8AT-13610-00-00
$165.99
2
REED, VALVE
8AT-13613-00-00
$33.99
3
STOPPER REED VALVE
8H8-13616-00-00
$4.77
4
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
5
WASHER, SPRING
92990-03100-00
$8.49
6
BOLT
90110-06159-00
Unavailable
7
GASKET, MANIFOLD
8Y7-13556-01-00
$9.49
8
JOINT, CARBURETOR
8L0-13565-00-00
Unavailable
9
NOZZLE
824-13552-00-00
Unavailable
10
MANIFOLD
8G8-13555-01-00
$114.99
11
BOLT, HEXAGON
97017-08025-00
$10.49
12
.. WASHER, PLATE
92990-08600-00
Unavailable
13
BAND
86M-13575-00-00
$19.49
14
FUEL PUMP ASSEMBLY (8Y0-24410-00)
8Y0-24410-01-00
Unavailable
15
COLLAR(M63)
90387-060X8-00
Unavailable
16
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
17
HOSE (L450)
90445-10144-00
Unavailable
18
CLIP
90467-090A2-00
Unavailable
19
HOSE
91A30-07036-00
Unavailable
20
CLIP
90467-11028-00
Unavailable
21
PIPE, JOINT 1
8Y4-24376-00-00
Unavailable
22
TUBE, FLEXIBLE VINYL(8AU)
91A20-05039-00
Unavailable
23
CLIP (8A1)
90467-09026-00
Unavailable
24
SILENCER, INTAKE 1
8K4-14431-00-00
Unavailable
25
SILENCER, INTAKE 2
8K4-14441-01-00
Unavailable
26
PIPE
8L0-14466-00-00
Unavailable
27
PLATE
8K4-14477-00-00
Unavailable
28
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
29
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
30
WASHER, PLAIN (646)
92990-05600-00
Unavailable
31
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
32
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
35
NUT, HEXAGON
95380-06600-00
Unavailable
36
CLAMP(7RG)
90462-06232-00
Unavailable
37
PIPE
8N8-14465-00-00
Unavailable
38
DAMPER 1
8K4-14425-00-00
Unavailable
39
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
40
WASHER, SPRING
92995-06100-00
Unavailable
41
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
42
JOINT, AIR CLEANER1
8N8-14453-01-00
Unavailable
43
HOSE CLAMP ASSEMBLY
[90-45071-01-90
Unavailable
44
HOSE CLAMP ASSY
90450-75002-00
Unavailable
