Description

Price

1

GATE, STEERING

8K4-23871-00-00

Unavailable

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$2.80

5

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

6

BRACKET 3

8K4-23883-00-00

Unavailable

7

BRACKET 4

8L8-23884-00-00

Unavailable

8

RIVET, BLIND (8H4)

90267-48053-00

$3.61

9

WASHER, PLATE

90201-04027-00

$3.02

10

BRACKET 6

8K4-23886-00-00

Unavailable

11

TOOL KIT (8V9-28100-00)

8U9-28100-00-00

Unavailable

12

BRACKET, TL BX FTNG (8N8-21945-01)

8U5-21945-00-00

Unavailable

13

RIVET, BLIND (8K2)

90267-48079-00

$3.50

14

WASHER, PLATE

90201-04027-00

$3.02

15

BAND, BATTERY

4J2-82131-01-00

$29.99

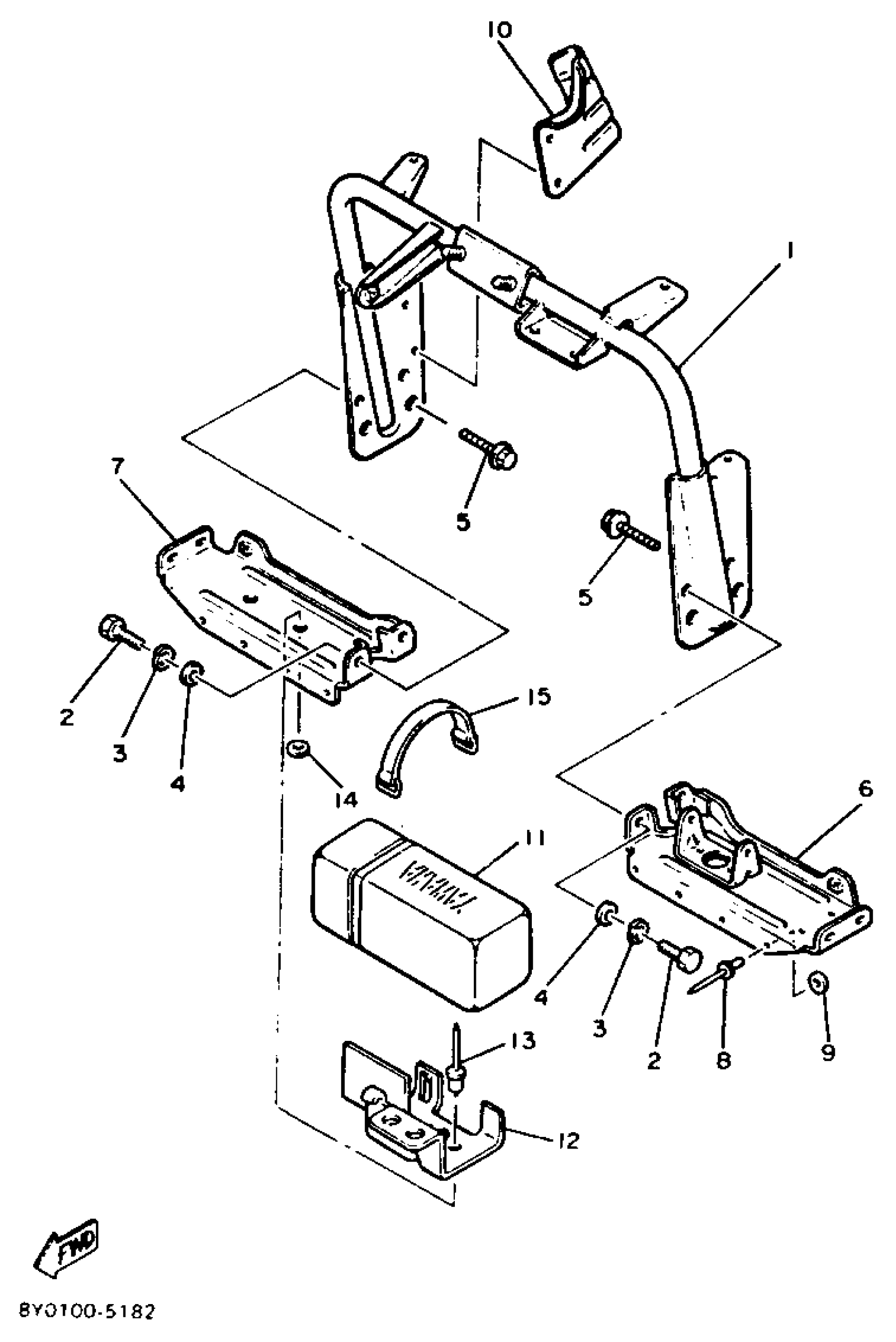

Yamaha XL540N (XLV) 1989 STEERING GATE Diagram

GATE, STEERING

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLAIN (646)

BOLT, FLANGE(JN5)

BRACKET 3

BRACKET 4

RIVET, BLIND (8H4)

WASHER, PLATE

BRACKET 6

TOOL KIT (8V9-28100-00)

BRACKET, TL BX FTNG (8N8-21945-01)

RIVET, BLIND (8K2)

WASHER, PLATE

BAND, BATTERY
