STEERING

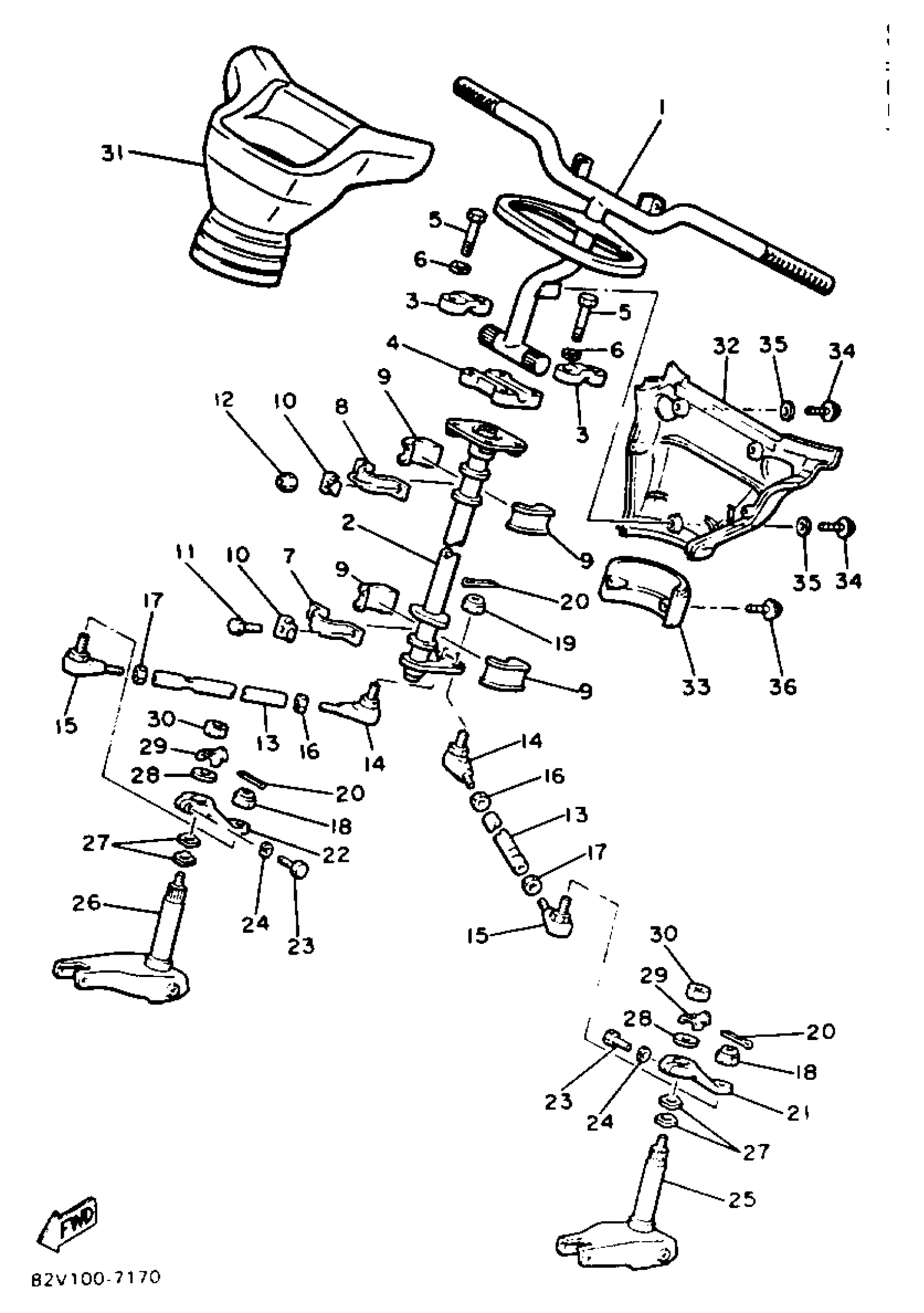

Yamaha XL540N (XLV) 1989 STEERING Diagram
#
1
COLUMN, STEERING
81R-23811-00-00
Unavailable
2
COLUMN, STEERING 2
81R-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HANDLE, HOLDER
164-23441-01-98
Unavailable
5
BOLT, HEXAGON
97017-08055-00
$9.49
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
HOLDER, BEARING
84M-23872-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT, HEXAGON
97017-08016-00
$8.49
12
NUT, NYLON
95717-08300-00
$2.70
13
ROD, STEERING RELAY
8K4-23821-00-00
Unavailable
14
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
15
JOINT, UNIVERSAL 2
86X-23845-00-00
$61.99
16
NUT (682)
95380-10700-00
Unavailable
17
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
18
NUT, NYLON
95707-10300-00
Unavailable
19
NUT, SELF-LOCKING (8J8)
90185-10085-00
Unavailable
20
PIN, COTTER
91490-25020-00
Unavailable
21
ARM, OUTSIDE 1
8K4-23851-00-00
Unavailable
22
ARM, OUTSIDE 2
8K4-23852-00-00
Unavailable
23
BOLT, HEXAGON
97017-08025-00
Unavailable
24
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
25
COLUMN, SKI 1
8L8-23853-00-00
Unavailable
26
COLUMN, SKI 2
8L8-23854-00-00
Unavailable
27
WASHER, WAVE (878)
90206-20037-00
Unavailable
28
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
29
WASHER, LOCK
90215-10096-00
Unavailable
30
NUT(3BM)
95314-10600-00
Unavailable
31
PAD, STEERING
8L8-23815-01-00
Unavailable
32
. PAD, STEERING
8L8-23817-02-00
Unavailable
33
COVER, STEERING
8Y0-23818-00-00
Unavailable
34
SCREW, PAN HEAD W/WASHER
97607-05112-00
Unavailable
35
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
36
SCREW, PAN HEAD WITH WASHER
97607-04314-00
Unavailable
