SHROUD - WINDSHIELD

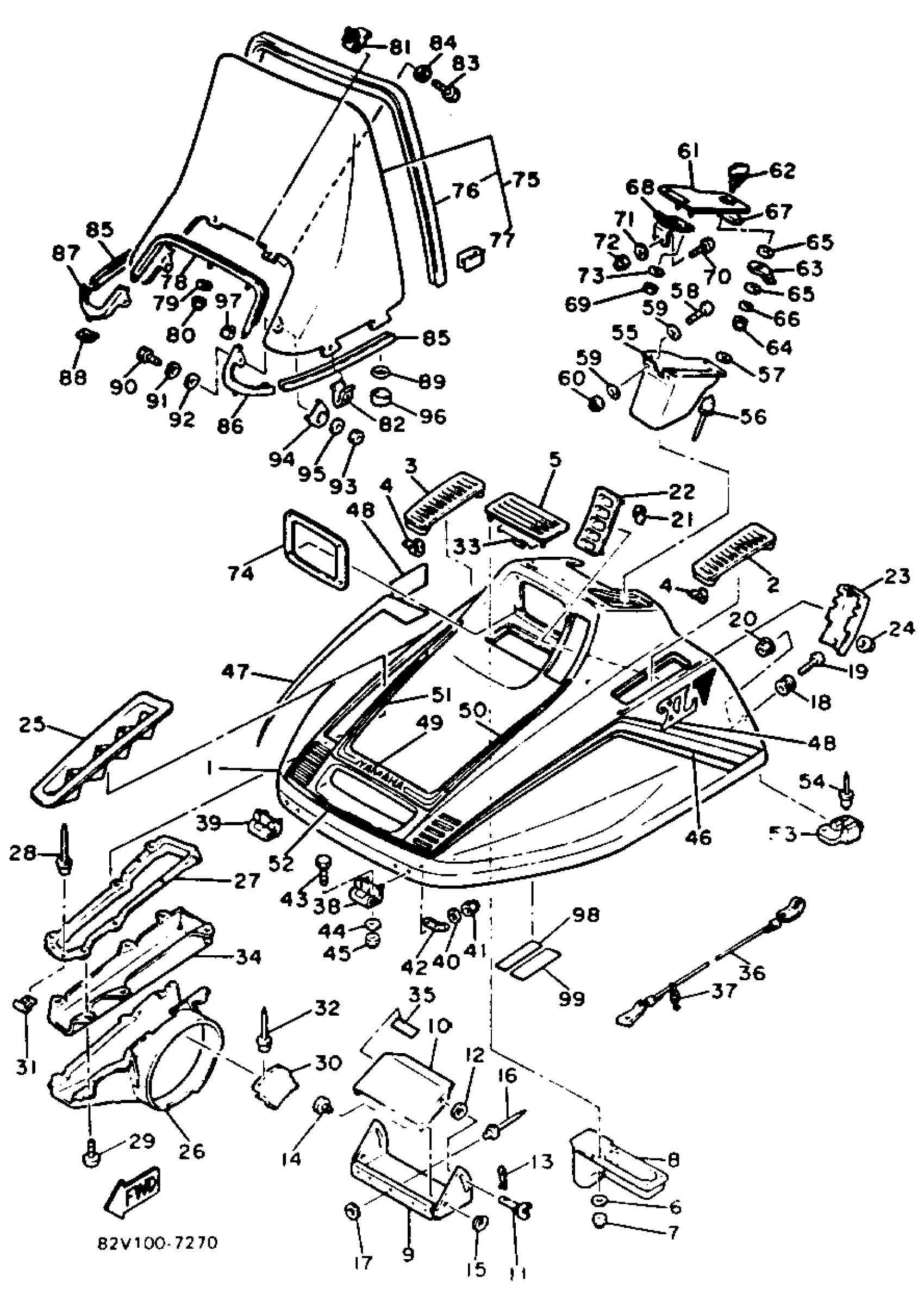

Yamaha XL540N (XLV) 1989 SHROUD - WINDSHIELD Diagram
#
1
SHROUD ASS''Y
86K-W7711-00-00
Unavailable
2
LOUVER 3
8L9-77133-00-00
Unavailable
3
LOUVER 4
8L9-77134-00-00
Unavailable
4
CLIP
90468-05094-00
Unavailable
5
LOUVER 5 (83W-77109-00)
8L9-77109-00-00
Unavailable
6
WASHER, PLATE 8067717800
90201-05029-00
$8.49
7
NUT, NYLON
95707-05300-00
$4.24
8
INSULATOR
8K4-7712E-00-00
Unavailable
9
STAY 1
8Y0-77125-00-00
Unavailable
10
STAY 2
8Y0-77126-00-00
Unavailable
11
BOLT, WING(8W1)
90122-05022-00
$7.49
12
. WASHER, PLATE
90202-05088-00
Unavailable
13
CLIP 626412360000
90468-10004-00
Unavailable
14
PIN
90249-05187-00
Unavailable
15
CIRCLIP (EU0)
99080-04600-00
Unavailable
16
RIVET, BLIND (8H4)
90267-48053-00
Unavailable
17
WASHER, PLATE
90201-04027-00
Unavailable
18
. HOLDER, LATCH
8M6-77175-00-00
Unavailable
19
SCREW, BINDING
98907-06030-00
Unavailable
20
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
21
CLIP
90468-05094-00
Unavailable
22
LOUVER 6
8V8-77108-00-00
Unavailable
23
PLATE 1
8V8-77185-00-00
Unavailable
24
NUT, FLANGE
95707-04500-00
Unavailable
25
LOUVER 1
80R-77131-00-00
Unavailable
26
DUCT
8V9-77194-00-00
Unavailable
27
PLATE, BACK UP 1
8V9-77153-00-00
Unavailable
28
RIVET, BLIND(8R6)
90267-40105-00
Unavailable
29
SCREW, BINDING
98907-06010-00
Unavailable
30
BUSH, RUBBER 1
8Y0-77515-00-00
Unavailable
31
CLIP
90468-05138-00
Unavailable
32
RIVET(81E)
90269-05055-00
Unavailable
33
PLATE 1
8Y0-77185-00-00
Unavailable
34
PLATE 2
8Y0-77186-00-00
Unavailable
35
LABEL,WARNING 2
8BE-77762-00-00
Unavailable
36
STOPPER, SHROUD
8K4-77118-00-00
Unavailable
37
CLAMP,ROD
838-77159-00-00
Unavailable
38
HINGE ASSEMBLY
8L8-77140-00-00
Unavailable
39
HINGE ASSEMBLY 2
8L8-7714A-00-00
Unavailable
40
WASHER, PLATE
90201-067A6-00
Unavailable
41
NUT, NYLON
95707-06300-00
Unavailable
42
WASHER 1
8Y0-77525-00-00
Unavailable
43
BOLT(8CP)
97017-06014-00
Unavailable
44
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
45
NUT, NYLON
95707-06300-00
Unavailable
46
ORNAMENT 1
86K-77163-00-00
Unavailable
47
ORNAMENT 2
86K-77164-00-00
Unavailable
48
EMBLEM 1
83W-77351-00-00
Unavailable
49
STRIPE 1
86K-77281-00-00
Unavailable
50
STRIPE 2
86K-77282-00-00
Unavailable
51
STRIPE 3
86K-77283-00-00
Unavailable
52
STRIPE 4
86K-77284-00-00
Unavailable
53
STOPPER
8K4-77188-00-00
Unavailable
54
RIVET, BLIND (8R6)
90267-48086-00
Unavailable
55
LUGGAGE BOX
8K4-77391-00-00
Unavailable
56
RIVET, BLIND
90267-489UJ-00
Unavailable
57
WASHER, PLATE
90201-04027-00
Unavailable
58
SCREW, PAN
98517-06020-00
Unavailable
59
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
60
NUT, NYLON
95707-06300-00
Unavailable
61
COVER, LUGGAGE BOX
8L9-77392-00-00
Unavailable
62
KNOB
8L9-77324-00-00
Unavailable
63
LEVER, ARM FITTING
8K4-77328-00-00
Unavailable
64
NUT, NYLON
95707-05300-00
$4.24
65
WASHER, PLAIN(735)
90201-10119-00
Unavailable
66
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
67
DAMPER 2
8K4-77374-00-00
Unavailable
68
HINGE ASSEMBLY
8K4-77470-00-00
Unavailable
69
NUT, CAP
95307-05800-00
Unavailable
70
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
71
WASHER, PLATE 8067717800
90201-05029-00
$8.49
72
NUT, NYLON
95707-05300-00
$4.24
73
WASHER, PLAIN LARGE
92907-05200-00
Unavailable
74
TRIM 1
8K4-77165-00-00
Unavailable
75
WINDSHIELD,XL540
83N-77210-10-XX
Unavailable
76
TRIM,UPPER
87K-77213-00-00
Unavailable
77
. FASTENER
80V-77223-00-00
Unavailable
78
TRIM, LOWER
8L0-77214-00-00
Unavailable
79
WASHER, PLAIN (646)
92990-05600-00
Unavailable
80
NUT, NYLON
95707-05300-00
$4.24
81
BRACKET, WNDSHLD R
8K4-77222-00-00
Unavailable
82
. BRACKET, WNDSHLD R
82V-77222-00-00
Unavailable
83
BOLT(3JP)
97017-06010-00
Unavailable
84
WASHER, SPRING
92995-06100-00
Unavailable
85
TRIM 3
80R-77215-00-00
Unavailable
86
TRIM 5
80R-77225-00-00
Unavailable
87
TRIM 6
80R-77226-00-00
Unavailable
88
NUT, SPRING(8AJ)
90183-05068-00
Unavailable
89
FASTNER
82H-77223-00-00
Unavailable
90
BOLT(6A1)
97095-05016-00
Unavailable
91
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
92
WASHER PLATE 829771780000
90201-05033-00
Unavailable
93
NUT, CAP
95307-05800-00
Unavailable
94
WASHER, SPECIAL
8L9-77116-00-00
Unavailable
95
WASHER, PLATE
90201-06045-00
Unavailable
96
FASTNER
82H-77223-00-00
Unavailable
97
CLAMP 2
8L0-77136-00-00
Unavailable
98
LABEL, CAUTION
8Y7-1417E-00-00
Unavailable
99
LABEL 1
8Y7-47578-00-00
Unavailable
