Description

Price

1

SHEAVE, PRI FIXEDFIXED

82M-17611-00-00

Unavailable

2

. SHEAVE, PRIMARY SLIDING

8V0-17621-01-00

Unavailable

3

CAP

8V0-17631-00-00

Unavailable

4

SPIDER COMPLETE

82M-17640-02-00

Unavailable

5

STOPPER

8V0-17639-00-00

$14.99

6

SLIDER

88X-17653-00-00

$14.49

7

COLLAR(83R)

90387-057W5-00

$14.99

9

WASHER, PLATE(87G)

90202-08205-00

$8.49

11

BOLT, HEXAGON

97027-05035-00

Unavailable

13

CLUTCH TUNE-UP KIT (K)

89X-00000-50-00

$242.99

13

CLUTCH REPAIR KIT

89X-17601-09-00

Unavailable

13

BOLT, HEXAGON

97017-06030-00

$3.61

15

BOLT (L=156.5MM)

8V0-17647-10-00

$25.99

16

BUSH(83R)

90389-28032-00

$61.99

18

WASHER, PLATE (8V8)

90201-077F5-00

$9.49

20

BUSH (81H)

90389-40029-00

Unavailable

21

BUSH(83R)

90386-08166-00

Unavailable

22

WEIGHT, WITH BUSH

8V0-W176A-00-00

Unavailable

23

BUSH(83V)

90386-07152-00

Unavailable

24

SPRING, WHITE/PURPL

90501-504A3-00

Unavailable

24

SPRING, COMPRESSION

90501-555A1-00

Unavailable

25

CLUTCH TUNE-UP KIT (K)

89X-00000-50-00

$242.99

25

V-BELT

89X-17641-01-00

Unavailable

25

CLUTCH REPAIR KIT

89X-17601-09-00

Unavailable

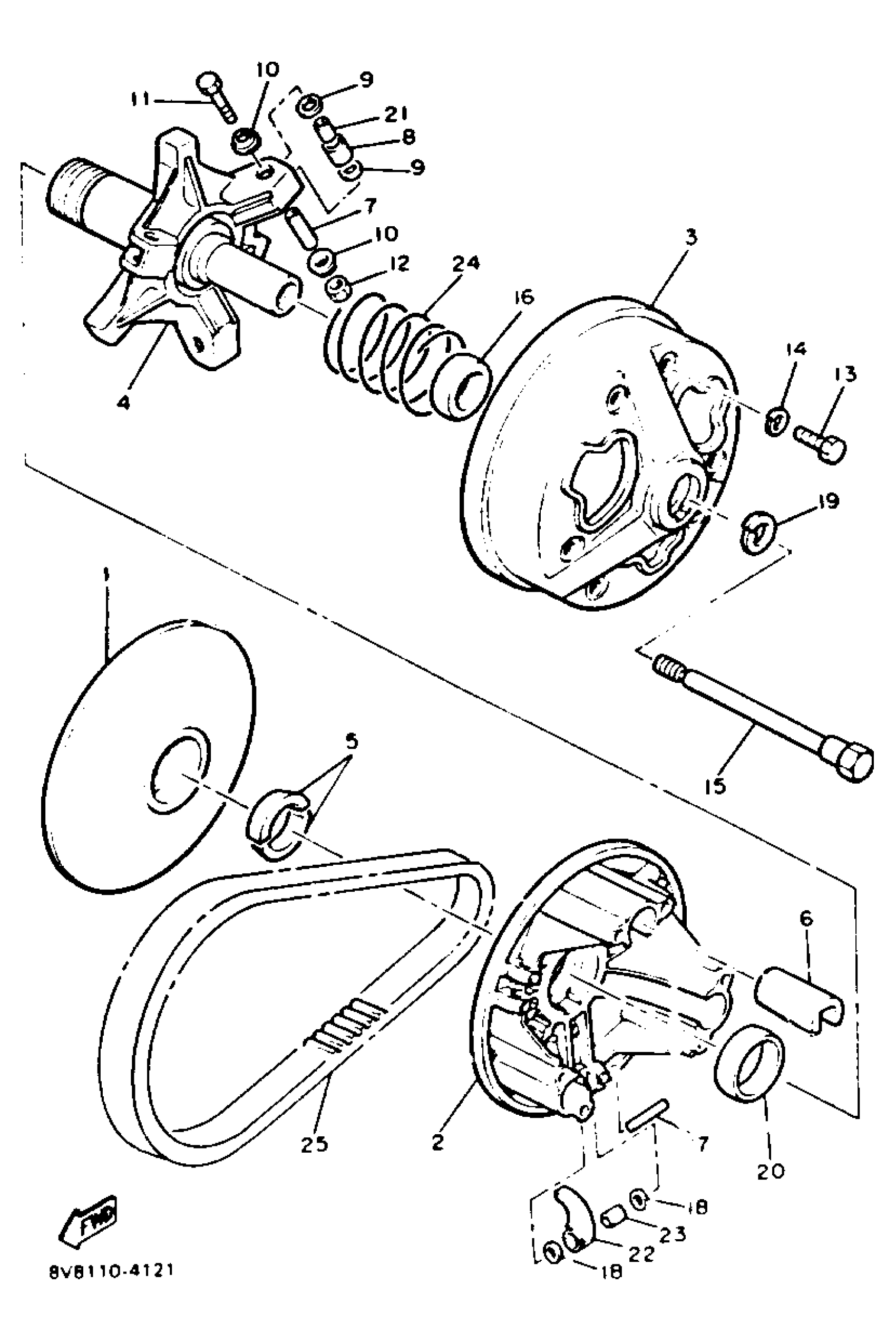

Yamaha XL540N (XLV) 1989 PRIMARY SHEAVE Diagram

SHEAVE, PRI FIXEDFIXED

. SHEAVE, PRIMARY SLIDING

CAP

SPIDER COMPLETE

STOPPER

SLIDER

COLLAR(83R)

WASHER, PLATE(87G)

BOLT, HEXAGON

CLUTCH TUNE-UP KIT (K)

CLUTCH REPAIR KIT

BOLT, HEXAGON

BOLT (L=156.5MM)

BUSH(83R)

WASHER, PLATE (8V8)

BUSH (81H)

BUSH(83R)

WEIGHT, WITH BUSH

BUSH(83V)

SPRING, WHITE/PURPL

SPRING, COMPRESSION

CLUTCH TUNE-UP KIT (K)

V-BELT

CLUTCH REPAIR KIT
