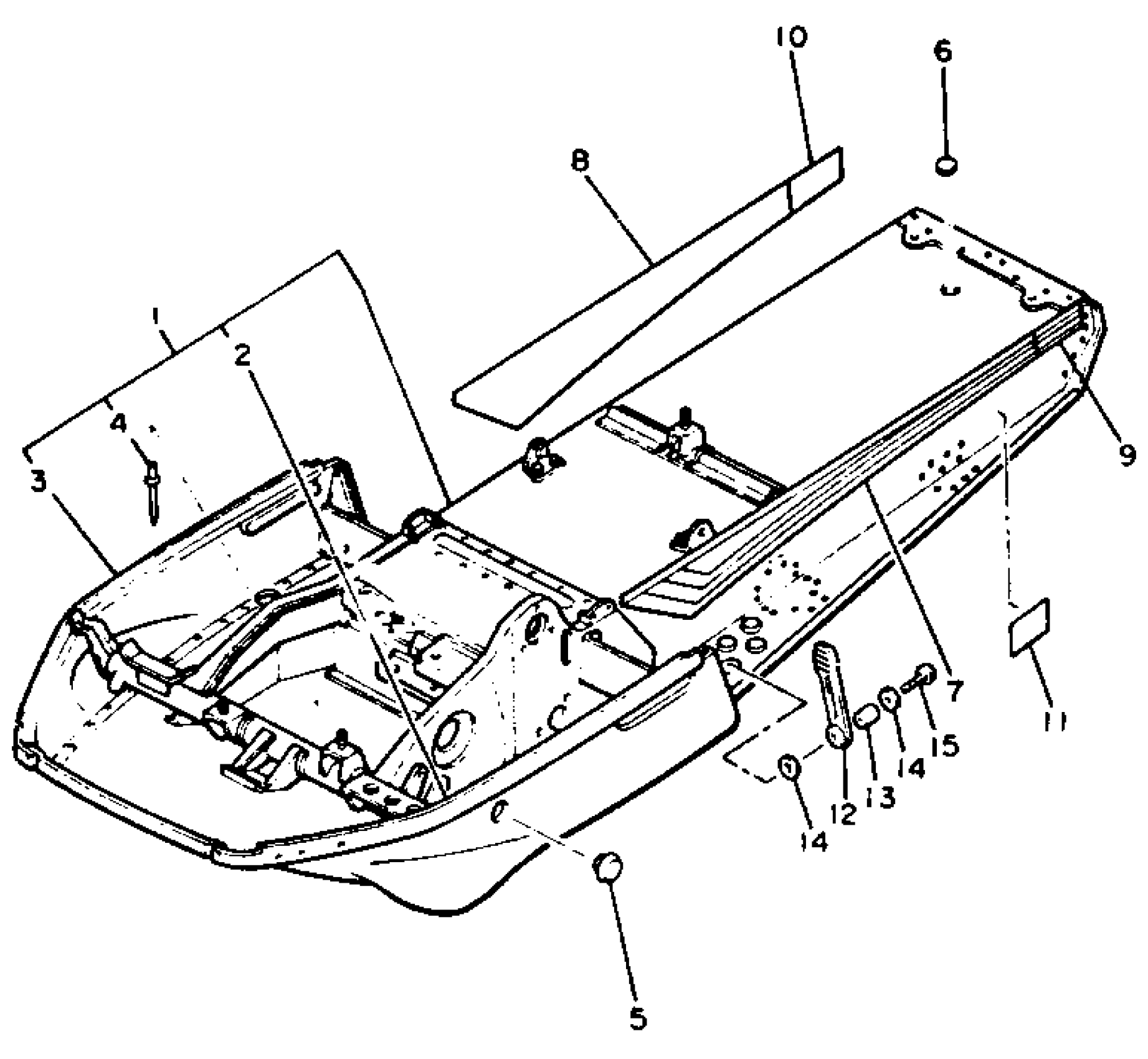

Yamaha XL540N (XLV) 1989 FRAME Diagram

#

Description

Price

1

FRAME COMP

86K-21910-00-00

Unavailable

1

. BELLY PAN

8Y7-21912-09-00

Unavailable

2

. HOOD 1

86K-21982-00-00

Unavailable

3

. HOOD 2

86K-21983-00-00

Unavailable

4

RIVET, BLIND (8H4)

90267-48053-00

$3.61

5

PLUG (8K4)

90338-40099-00

$13.99

6

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

Unavailable

7

EMBLEM 2

86K-77352-00-00

Unavailable

8

EMBLEM 3

86K-77353-00-00

Unavailable

9

EMBLEM 4

86K-77354-00-00

Unavailable

10

EMBLEM 5

86K-77355-00-00

Unavailable

11

INDICATOR 2

8K2-77742-00-00

Unavailable

12

BODY, LATCH 1

8M6-77171-00-00

Unavailable

13

COLLAR (420)

90387-06241-00

$8.49

14

WASHER, PLATE 8221447500

90201-06057-00

$5.60

15

SCREW, BINDING

98907-06025-00

Unavailable
