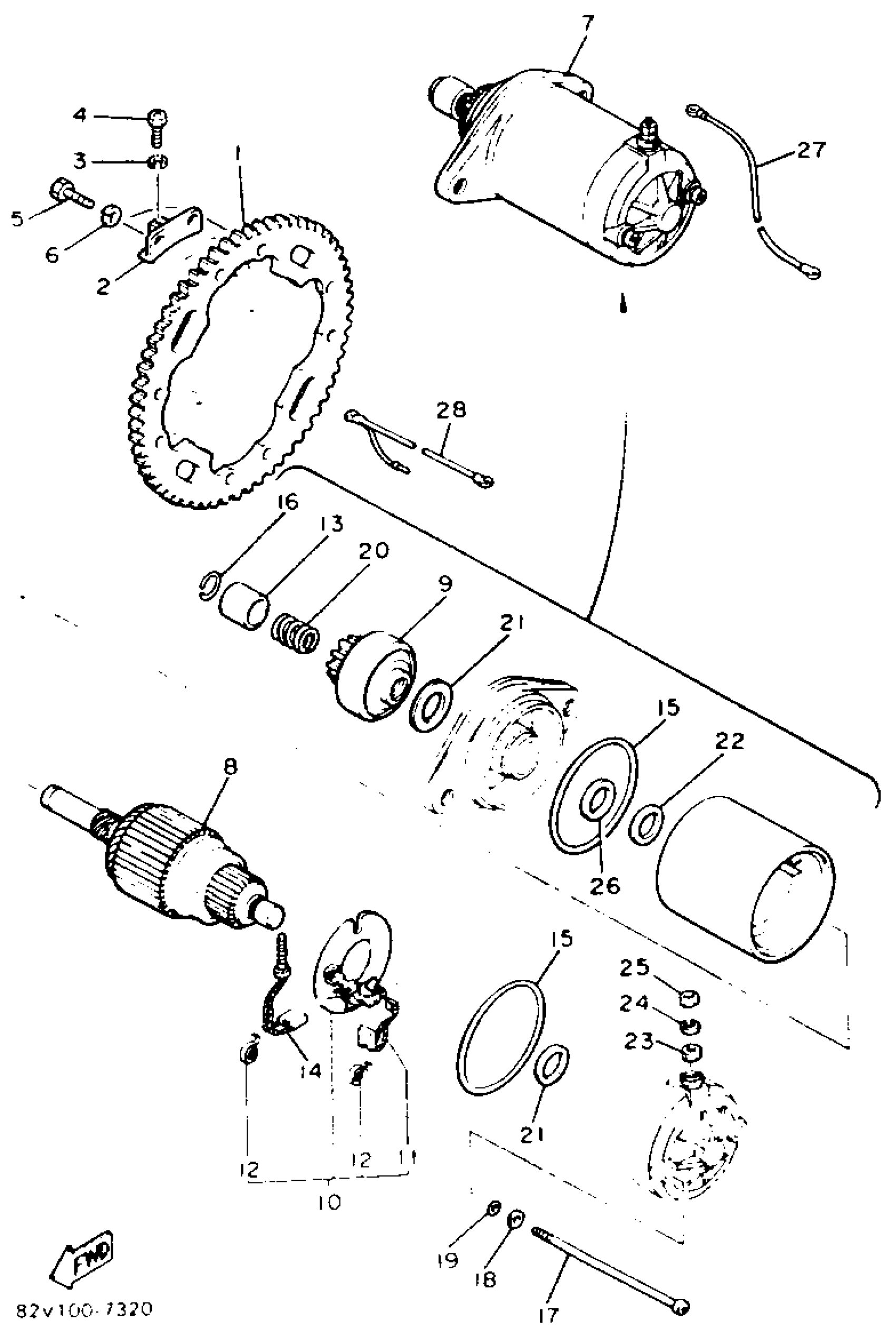

Yamaha XL540M (XLV) 1988 STARTING MOTOR Diagram

#

Description
Price

1

GEAR, RING

8H8-81891-00-00

Unavailable

2

STAY, RING GEAR

8H8-81895-00-00

Unavailable

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

Unavailable

5

BOLT(3JP)

97017-06010-00

$3.76

6

WASHER, SPRING

92995-06100-00

Unavailable

7

STARTING MOTOR ASSY

8BB-81800-02-00

Unavailable

8

. ARMATURE ASS''Y

[8Y-38185-00-00

Unavailable

9

. CLUTCH, OVER RUN

8L6-81832-50-00

Unavailable

10

BRUSH HOLDER ASSY

8L6-81840-51-00

$82.99

11

BRUSH 2

73A-81812-00-00

Unavailable

12

SPRING, BRUSH

8L6-81813-50-00

Unavailable

13

RING, STOP

8L6-81833-50-00

Unavailable

14

BRUSH 1

73A-81811-01-00

Unavailable

15

O-RING

4H7-81844-00-00

Unavailable

16

RING

8L6-81834-50-00

Unavailable

17

BOLT

84N-81826-00-00

Unavailable

18

. WASHER 2

8L6-81824-50-00

Unavailable

19

O-RING

8L6-81847-50-00

Unavailable

20

SPRING, LEVER

8L6-81836-50-00

Unavailable

21

WASHER 1

4H7-81843-50-00

Unavailable

22

WASHER

8L6-81835-50-00

Unavailable

23

NUT

4H7-81872-00-00

Unavailable

24

WASHER, SPRING

92995-06100-00

Unavailable

25

NUT(650)

95380-06700-00

Unavailable

26

. OIL SEAL

8Y3-81167-00-00

Unavailable

27

WIRE,LEAD

8CL-82117-00-00

Unavailable

28

WIRE, MINUS LEAD

8Y7-82116-00-00

Unavailable
