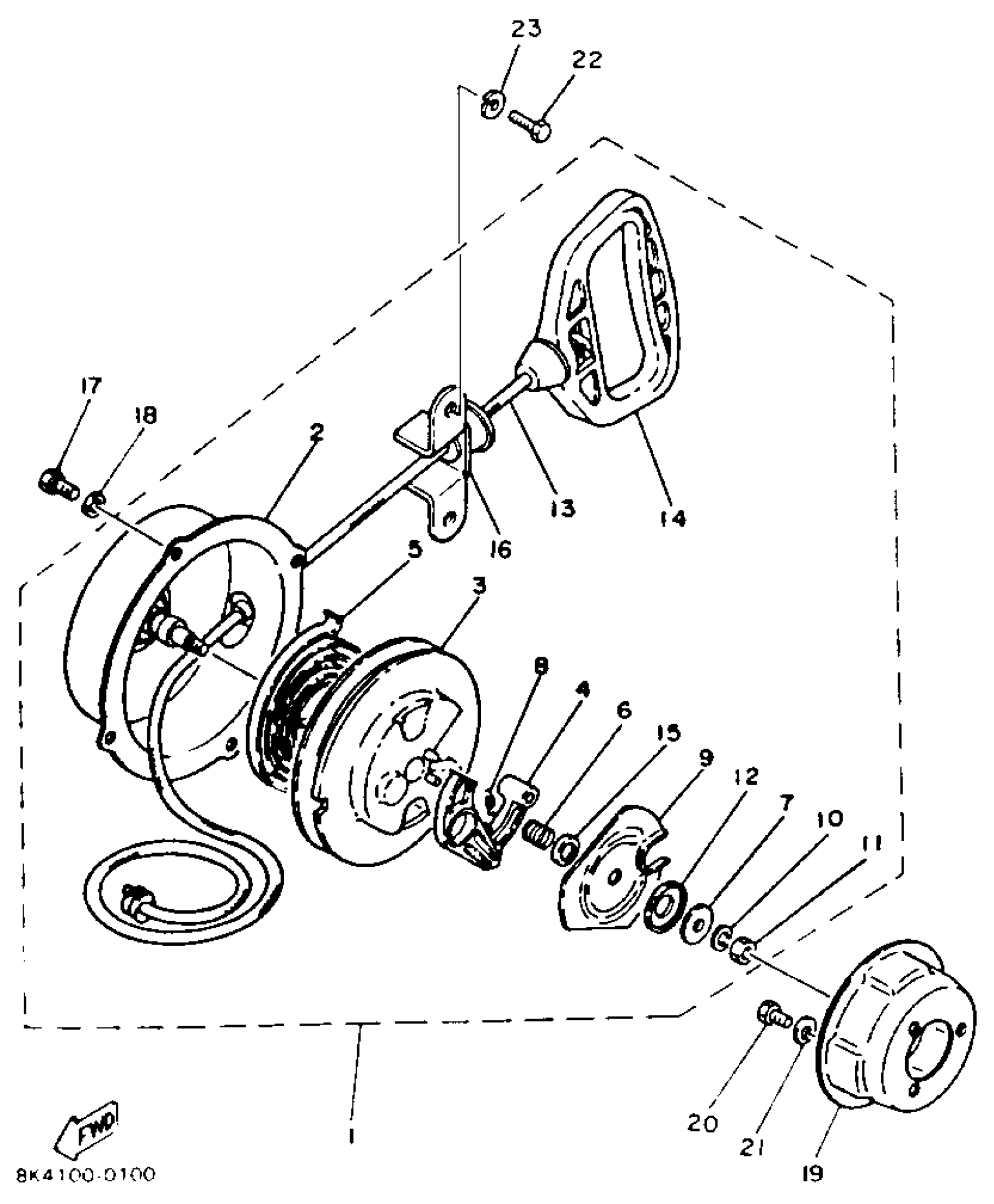

Yamaha XL540M (XLV) 1988 STARTER Diagram

#

Description
Price

1

STARTER ASY

99999-02987-00

Unavailable

2

CASE, STARTER

8H8-15711-00-00

Unavailable

3

DRUM, SEAVE

8F3-15714-01-00

$48.99

4

PAWL, DRIVE

8F3-15741-01-00

$28.99

5

SPRING, STARTER

8F3-15713-01-00

$48.99

6

SPRING, DRIVE PLATE

8F3-15715-00-00

$9.99

7

WASHER, THRUST

8F3-15739-01-00

$11.99

8

SPRING, RETURN

8F3-15734-00-00

$5.49

9

PLATE, DRIVE

8F3-15716-03-00

$29.99

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT(650)

95380-06700-00

$8.49

12

WASHER, THRUST

8G5-15739-00-00

$9.49

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

14

HANDLE, STARTER

8F3-15755-00-00

$29.99

15

COLLOR

82M-15779-00-00

$8.99

16

HOLDER, HANDLE

8F3-15788-01-00

Unavailable

17

BOLT(8CP)

97017-06014-00

Unavailable

18

WASHER, SPRING

92907-06100-00

Unavailable

19

PULLEY, STARTER

8H8-15723-01-00

Unavailable

20

BOLT, HEXAGON

97013-08020-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

BOLT, HEXAGON

97017-06012-00

Unavailable

23

WASHER, SPRING

92907-06100-00

Unavailable
