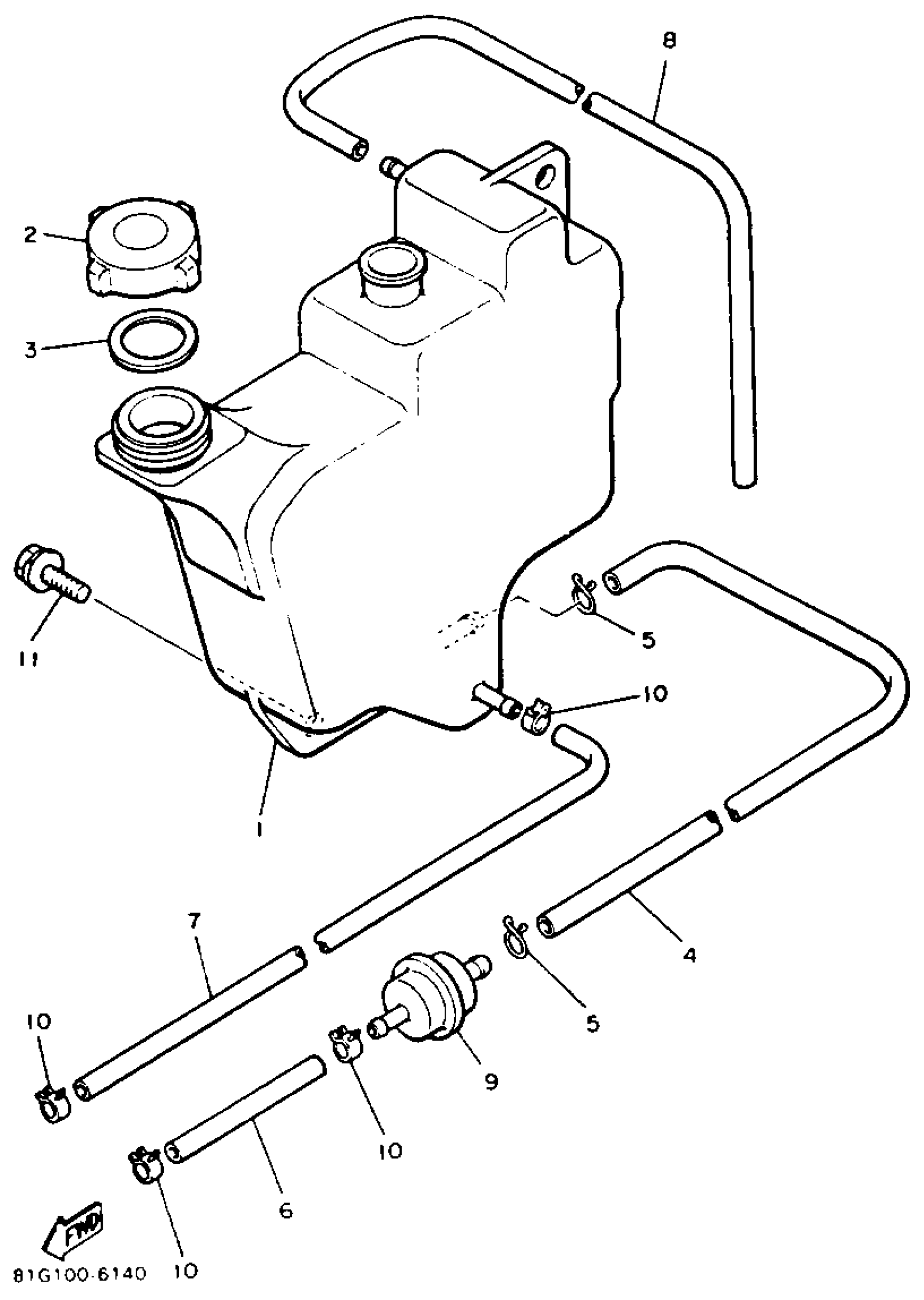

Yamaha XL540M (XLV) 1988 OIL TANK Diagram

TANK, OIL (8L8-21751-00)

86U-21751-00-00

Unavailable

BODY, CAP

8LU-21771-00-00

$31.99

GASKET, TANK (867)

90430-31003-00

$10.49

HOSE

91A30-07036-00

Unavailable

CLIP (8J7)

90467-11009-00

$10.49

TUBE, FLEXIBLE VINYL(8AK)

91A30-05039-00

$10.49

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$18.99

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

HOUSING STRAINER ASSY

8G8-13410-00-00

$28.99

CLIP (8A1)

90467-09026-00

$3.28

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49
