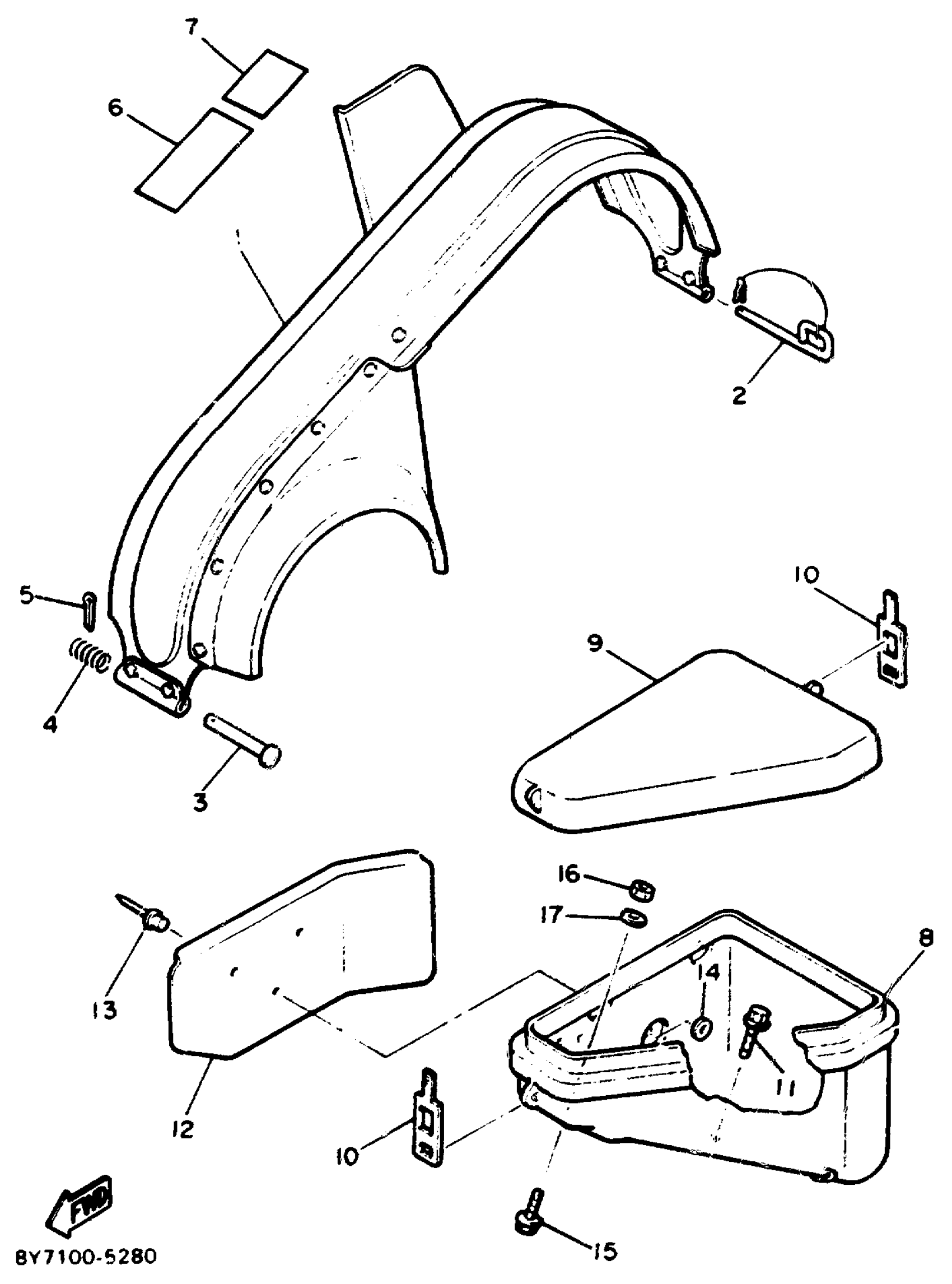

Yamaha XL540M (XLV) 1988 GAURD LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

8R6-77311-02-00

Unavailable

2

SHAFT

8F3-77327-00-00

Unavailable

3

PIN(8E7)

91701-06082-00

$5.60

4

SPRING, COMPRESSION

90501-08661-00

Unavailable

5

CLIP

90468-18008-00

Unavailable

6

LABEL, WARNING 2

8R6-77762-00-00

Unavailable

7

LABEL, WARNING 1

8R6-77761-00-00

Unavailable

8

BOX, TOOL

8H8-77381-00-00

Unavailable

9

LID, TOOL BOX

8H8-77382-00-00

Unavailable

10

HOOK

J10-14436-00-00

Unavailable

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

PROTECTOR

8Y7-77373-00-00

Unavailable

13

RIVET, BLIND

90267-489UJ-00

Unavailable

14

WASHER, PLATE

90201-04027-00

$3.02

15

BOLT, WITH WASHER

90119-06242-00

$7.49

16

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

17

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable
