1987 Yamaha XLV (XL540L) Steering Diagram

← All diagrams

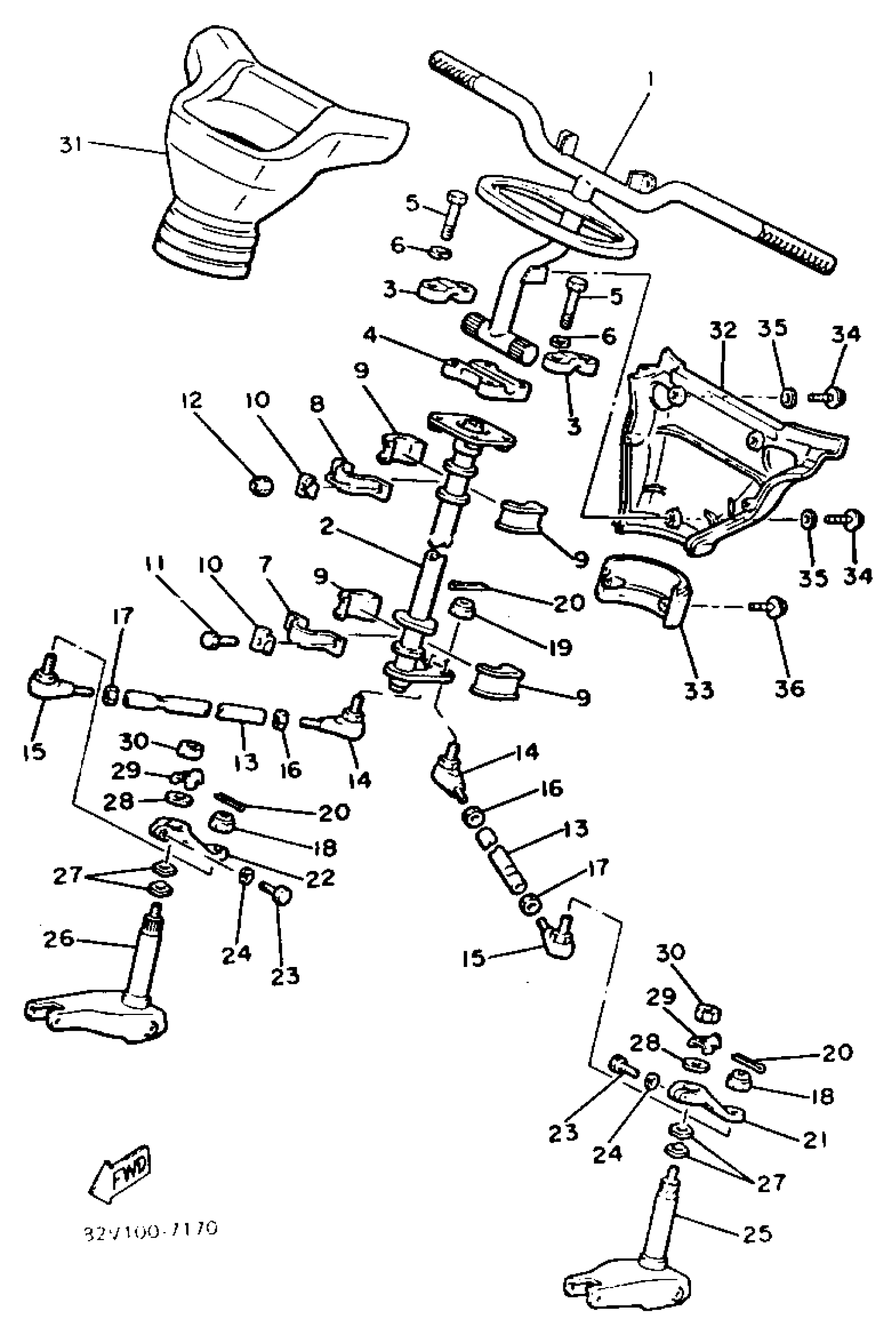

Find the part on the Steering diagram for your 1987 Yamaha XLV (XL540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha XLV (XL540L) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

81R-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

81R-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

4

HANDLE, HOLDER

164-23441-01-98

—
Out of stock

5

BOLT, HEXAGON

97017-08055-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

7

BRACKET, STEERING LOWER

84M-23868-00-00

—
Out of stock

8

HOLDER, BEARING

84M-23872-00-00

—
Out of stock

9

BEARING, STEERING

8F3-23812-00-00

1
Out of stock

10

WASHER, LOCK 1

8AC-23894-01-00

1
Out of stock

11

BOLT, HEXAGON

97017-08016-00

1
Out of stock

12

NUT, NYLON

95717-08300-00

1
Out of stock

13

ROD, STEERING RELAY

8K4-23821-00-00

1
Out of stock

14

JOINT, UNIVERSAL 1

86X-23841-00-00

1
Out of stock

15

JOINT, UNIVERSAL 2

86X-23845-00-00

1
Out of stock

16

NUT (682)

95380-10700-00

1
Out of stock

17

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

18

NUT, NYLON

95707-10300-00

—
Out of stock

19

NUT, SELF-LOCKING (8J8)

90185-10085-00

—
Out of stock

20

PIN, COTTER

91490-25020-00

—
Out of stock

21

ARM, OUTSIDE 1

8K4-23851-00-00

1
Out of stock

22

ARM, OUTSIDE 2

8K4-23852-00-00

1
Out of stock

23

BOLT, HEXAGON

97017-08025-00

—
Out of stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

25

COLUMN, SKI 1

8L8-23853-00-00

1
Out of stock

26

COLUMN, SKI 2

8L8-23854-00-00

1
Out of stock

27

WASHER, WAVE (878)

90206-20037-00

—
Out of stock

28

WASHER, PLATE (3J6)

90201-100A1-00

—
Out of stock

29

WASHER, LOCK

90215-10096-00

1
Out of stock

30

NUT(3BM)

95314-10600-00

—
Out of stock

31

PAD, STEERING

8L8-23815-01-00

1
Out of stock

32

. PAD, STEERING

8L8-23817-02-00

1
Out of stock

33

COVER, STEERING

8Y0-23818-00-00

—
Out of stock

34

SCREW, PAN HEAD W/WASHER

97607-05112-00

—
Out of stock

35

WASHER, PLATE 8067717800

90201-05029-00

—
Out of stock

36

SCREW, PAN HEAD WITH WASHER

97607-04314-00

1
Out of stock
