1987 Yamaha XLV (XL540L) Ski Diagram

← All diagrams

Find the part on the Ski diagram for your 1987 Yamaha XLV (XL540L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

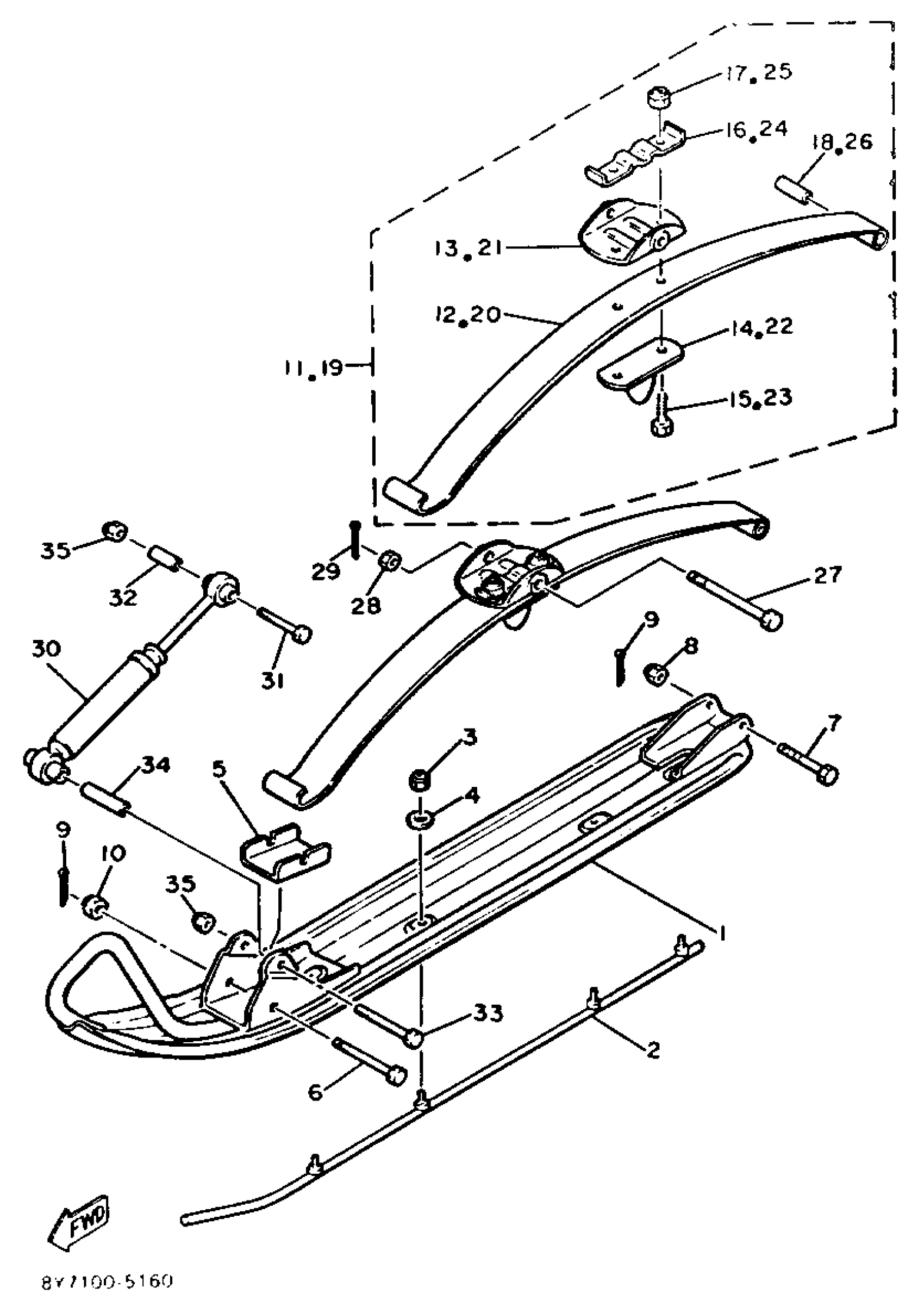

1987 Yamaha XLV (XL540L) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8Y7-23710-00-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1
Out of stock

4

.. WASHER, PLATE

92990-08600-00

1
Out of stock

5

PLATE, WEAR 1

8K4-23735-00-00

1
Out of stock

6

BOLT PIN HOLE HEXAGON(8E6)

90102-08028-00

1
Out of stock

7

BOLT, PIN HOLE (8A7)

90102-08027-00

1
Out of stock

8

NUT, NYLON

95717-08300-00

1
Out of stock

9

PIN, COTTER

91490-20025-00

1
Out of stock

10

NUT, U

95617-08100-00

1
Out of stock

11

SPRING ASSEMBLY 1

8K4-23760-01-00

1
Out of stock

12

. LEAF 1

8K4-23761-00-00

1
Out of stock

13

. SADDLE 1

8K4-23766-00-00

1
Out of stock

14

. SEAT, SPRING 1

878-23768-00-00

1
Out of stock

15

. BOLT

90109-105E7-00

1
Out of stock

16

WASHER, ROCK (8J5)

90215-10155-00

—
Out of stock

17

NUT, SELF-LOCKING (8J8)

90185-10085-00

—
Out of stock

18

COLLAR

90387-08478-00

1
Out of stock

19

SPRING ASSEMBLY 2

8K4-23770-01-00

1
Out of stock

20

. LEAF 1

8K4-23761-00-00

1
Out of stock

21

. SADDLE 1

8K4-23766-00-00

1
Out of stock

22

. SEAT, SPRING 1

878-23768-00-00

1
Out of stock

23

. BOLT

90109-105E7-00

1
Out of stock

24

WASHER, ROCK (8J5)

90215-10155-00

—
Out of stock

25

NUT, SELF-LOCKING (8J8)

90185-10085-00

—
Out of stock

26

COLLAR

90387-08478-00

1
Out of stock

27

BOLT, WITH HOLE

90102-12036-00

1
Out of stock

28

NUT, CASTLE

95307-12900-00

—
Out of stock

29

PIN, COTTER

91490-30030-00

—
Out of stock

30

SHOCK ABSORBER ASSEMBLY

8V8-23350-00-00

1
Out of stock

31

BOLT, HEXAGON

97017-08055-00

—
Out of stock

32

COLLAR (878)

90387-08262-00

—
Out of stock

33

BOLT, HEXAGON

97017-08075-00

—
Out of stock

34

COLLAR (864)

90387-08224-00

—
Out of stock

35

NUT, NYLON

95717-08300-00

1
Out of stock
