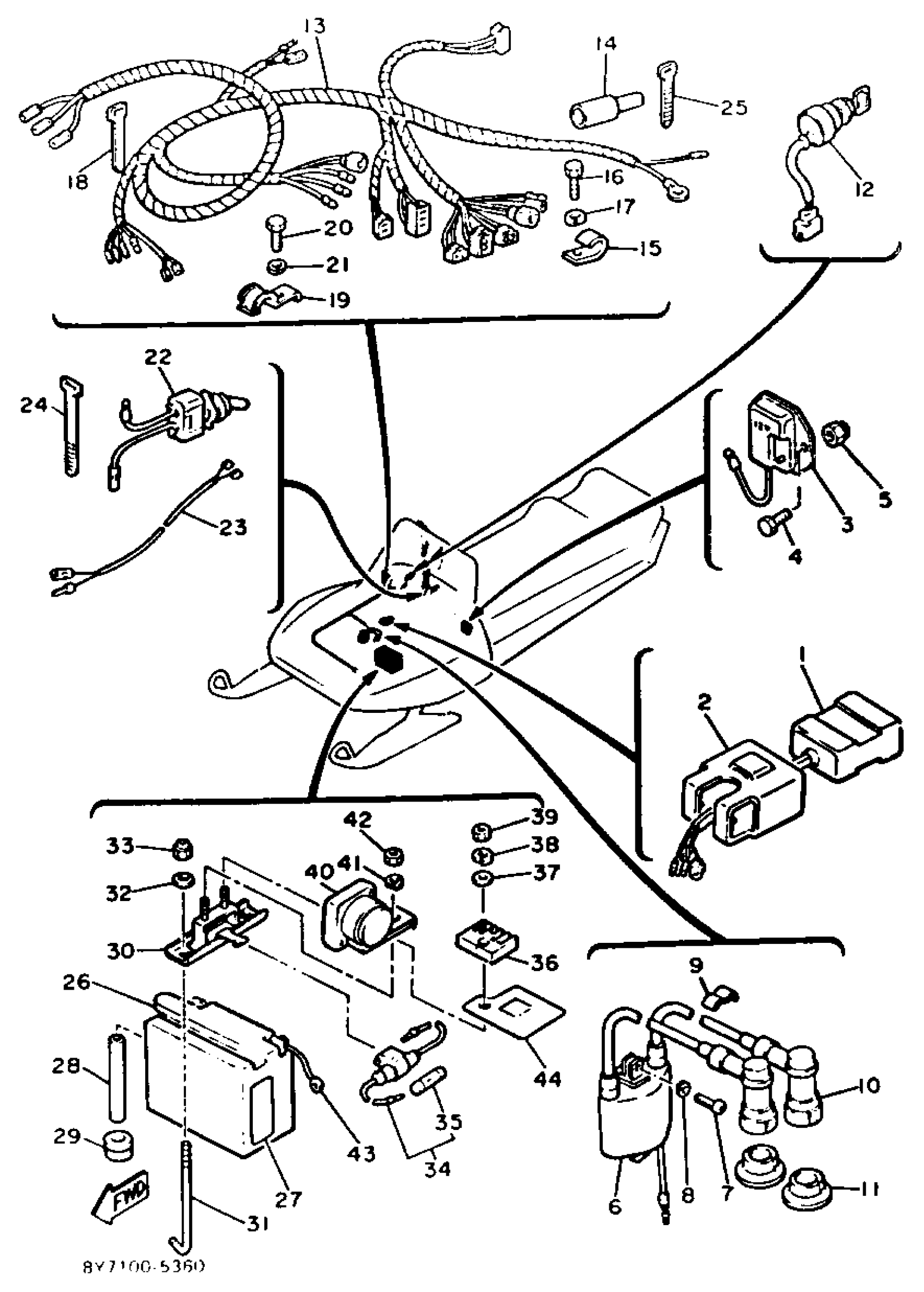

Yamaha XL540L (XLV) 1987 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

8V0-85540-21-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$71.99

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

NUT, NYLON

95707-06300-00

$3.50

6

IGNITION COIL ASY

8E7-82310-09-00

Unavailable

7

SCREW PAN HEAD

98580-06020-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

CLAMP, CORD

861-82361-00-00

Unavailable

10

PLUG CAP ASSY

85G-82370-20-00

$34.99

11

SEAL

8G5-82372-00-00

$5.60

12

MAIN SWITCH ASSY

8K1-82510-21-00

Unavailable

13

WIRE HARNESS ASSEMBLY

8Y7-82590-20-00

Unavailable

14

COVER, CONNECTER

8Y0-82599-00-00

Unavailable

15

CLAMP

90465-08028-00

Unavailable

16

BOLT (661)

97013-06012-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BAND

341-26397-01-00

Unavailable

19

CLAMP

90462-06079-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

SWITCH

82J-82917-00-00

Unavailable

23

WIRE, SUB-LEAD

80X-82318-00-00

Unavailable

24

BAND, SWITCH CORD

437-83936-01-00

Unavailable

25

BAND

341-26397-01-00

Unavailable

26

YB16ALA2 YUASA BATTERY

YB1-6ALA2-00-00

Unavailable

27

LABEL, BATTERY

40A-82141-G0-00

Unavailable

28

HOSE (L1500)

90445-084J0-00

Unavailable

29

GROMMET (461)

90480-12067-00

Unavailable

30

PLATE, BATT FITTING

8Y7-82136-00-00

Unavailable

31

SCREW, FITTING

8Y7-82133-00-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

NUT, NYLON

95707-06300-00

$3.50

34

FUSE HOLDER ASSEMBLY

2J2-82150-10-00

Unavailable

35

FUSE

682-82151-02-00

Unavailable

36

RECTIFIER ASSY (RXKING,RXS)

3HB-H1970-01-00

Unavailable

37

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

38

WASHER, SPRING

92995-06100-00

Unavailable

39

NUT, HEXAGON

95380-06600-00

Unavailable

40

. STARTER RELAY ASSY

8J9-81940-10-00

Unavailable

41

WASHER, SPRING

92995-06100-00

Unavailable

42

NUT, HEXAGON

95380-06600-00

Unavailable

43

WIRE PLUS LEAD

84N-82115-00-00

Unavailable

44

COVER, BATTERY

8Y7-82129-00-00

Unavailable
