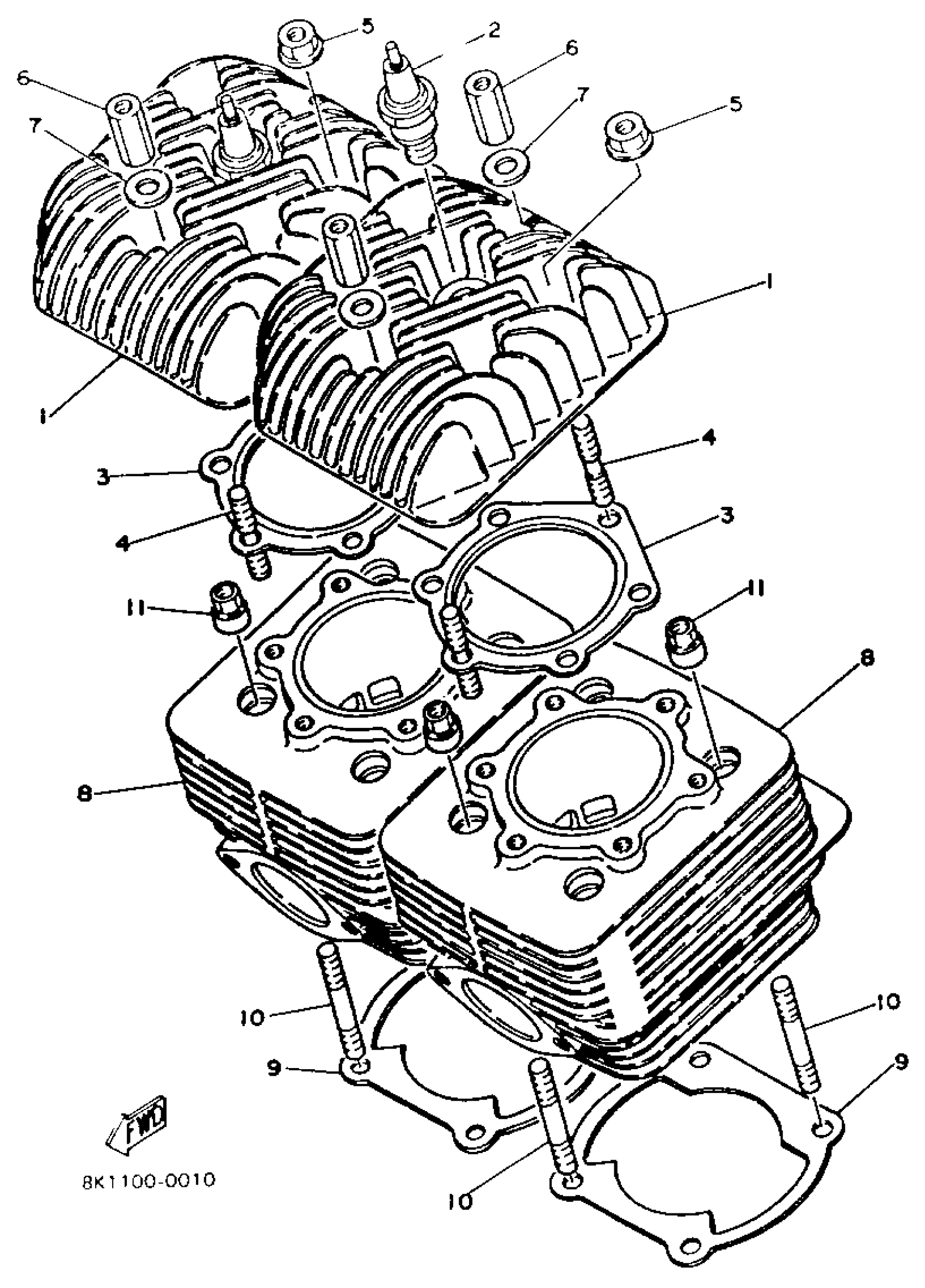

Yamaha XL540L (XLV) 1987 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8H8-11111-00-00

Unavailable

2

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

$3.80

3

GASKET, CYLINDER HEAD 1

83R-11181-00-00

$29.49

4

BOLT STUD 363111790000

90116-08104-00

$13.41

5

NUT, FLANGE

95704-08500-00

$4.51

6

NUT (8H8)

90179-08269-00

$10.09

7

WASHER, PLATE (397)

90201-08100-00

$5.75

8

CYLINDER 1

8H8-11311-00-00

Unavailable

9

GASKET, CYLINDER

89N-11351-00-00

$7.46

10

BOLT, STUD (8H8)

90116-08302-00

$8.67

11

NUT (8H8)

90179-08268-00

$8.82
